Запчасти Case PT240 (88.100.01[01]) - AIR DISTRIBUTION (88) - ACCESSORIES

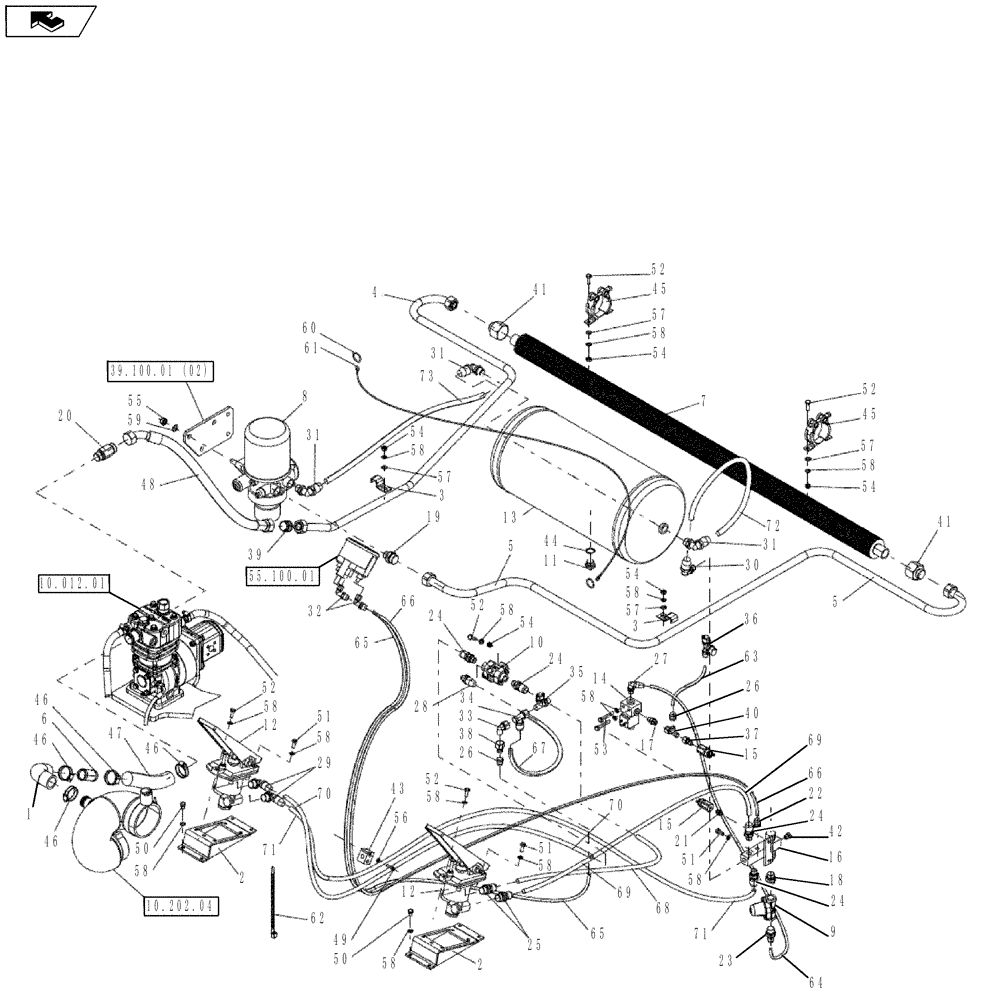

Схема запчастей Case PT240 - (88.100.01[01]) - AIR DISTRIBUTION (88) - ACCESSORIES
71
52
65
5
54
24
45
54
55
52
37
31
40
64
58
25
59
58
31
31
57
58
46
58
44
71
24
11
10
5
32
58
26
10.202.04
10.012.01
18
57
53
63
6
58
57
58
43
30
60
68
24
33
23
26
41
58
62
54
2
66
61
55.100.01
73
50
69
12
46
15
57
9
58
28
58
56
58
7
46
21
66
14
29
27
34
51
65
8
45
36
15
24
39
35
39.100.01 (02)
58
17
4
20
70
51
13
54
22
69
52
12
1
home
49
48
51
3
3
2
58
41
52
38
47
72
42
67
16
54
19
70
46
50
52

Артикул

Название

Примечание

Количество

1

ND144700

ELBOW

1шт.

2

ND098363

BRACKET

2шт.

3

ND145750

HOLDER

2шт.

4

ND148499

AIR INTAKE TUBE

1шт.

5

ND148500

AIR INTAKE TUBE

1шт.

6

ND145401

AIR INTAKE TUBE

1шт.

7

ND138056

COOLER

1шт.

8

ND120986

WATER SEPARATOR

Complete Assembly, For Filter See 119

1шт.

8

ND121064

FILTER

Water Separator

1шт.

9

ND120990

PNEUMATIC VALVE

, Serial Range: -NBNTN2319

1шт.

9

47397490

PNEUMATIC VALVE

, Start Serial: NBNTN2320

1шт.

10

ND120989

PNEUMATIC VALVE

1шт.

11

ND120987

DRAINCOCK/TAP SUPPLY

1шт.

12

ND064657

PNEUMATIC VALVE

2шт.

13

ND065657

AIR RESERVOIR

1шт.

14

ND147637

SOLENOID VALVE

1шт.

15

ND067926

PRESSURE SWITCH

, Serial Range: -NBNTN2319

2шт.

15

47397493

PRESSURE SWITCH

, Start Serial: NBNTN2320

1шт.

16

ND120984

MANIFOLD

1шт.

17

ND062200

HYD CONNECTOR

1шт.

18

ND062109

HYD CONNECTOR

1шт.

19

ND062126

FITTING

1шт.

20

ND145500

PIPE FITTING

, Serial Range: -NBNTN2319

1шт.

20

ND062161

HYD CONNECTOR

, Start Serial: NBNTN2320

1шт.

21

ND062170

PIPE

1шт.

22

ND121061

FITTING

1шт.

23

ND120997

FITTING

1шт.

24

ND120998

FITTING

4шт.

25

ND120999

FITTING

2шт.

26

ND121010

FITTING

2шт.

27

ND121005

FITTING

1шт.

28

ND121002

FITTING

1шт.

29

ND120993

FITTING

2шт.

30

ND144986

FITTING

1шт.

31

ND144987

PIPE FITTING

3шт.

32

ND143126

FITTING

2шт.

33

ND121003

FITTING

1шт.

34

ND121063

FITTING

1шт.

35

ND121000

FITTING

1шт.

36

ND121008

FITTING

1шт.

37

ND121060

REDUCER

1шт.

38

ND121059

REDUCER

1шт.

39

ND062307

PIPE FITTING

1шт.

40

ND062313

HYD CONNECTOR

1шт.

41

ND144633

FITTING

2шт.

42

ND062440

STOP PLUG

1шт.

43

ND064786

CLAMP

1шт.

44

ND073359

O-RING

1шт.

45

ND144359

CLAMP

2шт.

46

ND119177

HOSE CLAMP

4шт.

47

ND145762

INTAKE AIR HOSE

1шт.

48

ND144635

AIR HOSE

1шт.

49

ND024231

BOLT

2шт.

50

ND021292

BOLT

8шт.

51

ND021294

BOLT

6шт.

52

ND021295

BOLT

7шт.

53

ND021187

BOLT

2шт.

54

ND021848

NUT

7шт.

55

ND021850

NUT

3шт.

56

ND029248

WASHER

2шт.

57

ND029249

WASHER

6шт.

58

ND035940

SPRING WASHER

25шт.

59

ND035942

WASHER

3шт.

60

ND073401

RING

1шт.

61

ND099889

CHAIN

1шт.

62

ND078445

SECURING STRAP

12шт.

63

ND145770

PLASTIC-RUBBER TUBE

1шт.

64

ND145776

PLASTIC-RUBBER TUBE

1шт.

65

ND145775

PLASTIC-RUBBER TUBE

1шт.

66

ND145774

PLASTIC-RUBBER TUBE

1шт.

67

ND121319

PLASTIC-RUBBER TUBE

1шт.

68

ND122828

PLASTIC-RUBBER TUBE

1шт.

69

ND145771

PLASTIC-RUBBER TUBE

1шт.

70

ND145773

PLASTIC-RUBBER TUBE

1шт.

71

ND145772

PLASTIC-RUBBER TUBE

1шт.

71

ND108482

PROTECTOR

1шт.

72

ND145764

PLASTIC-RUBBER TUBE

1шт.

73

ND145765

PLASTIC-RUBBER TUBE

1шт.

Выбрано товаров: 78
