(05.100.03[01]) - FILTERS, DV36

Запчасти Case DV36 (05.100.03[01]) - FILTERS, DV36 (05) - SERVICE & MAINTENANCE

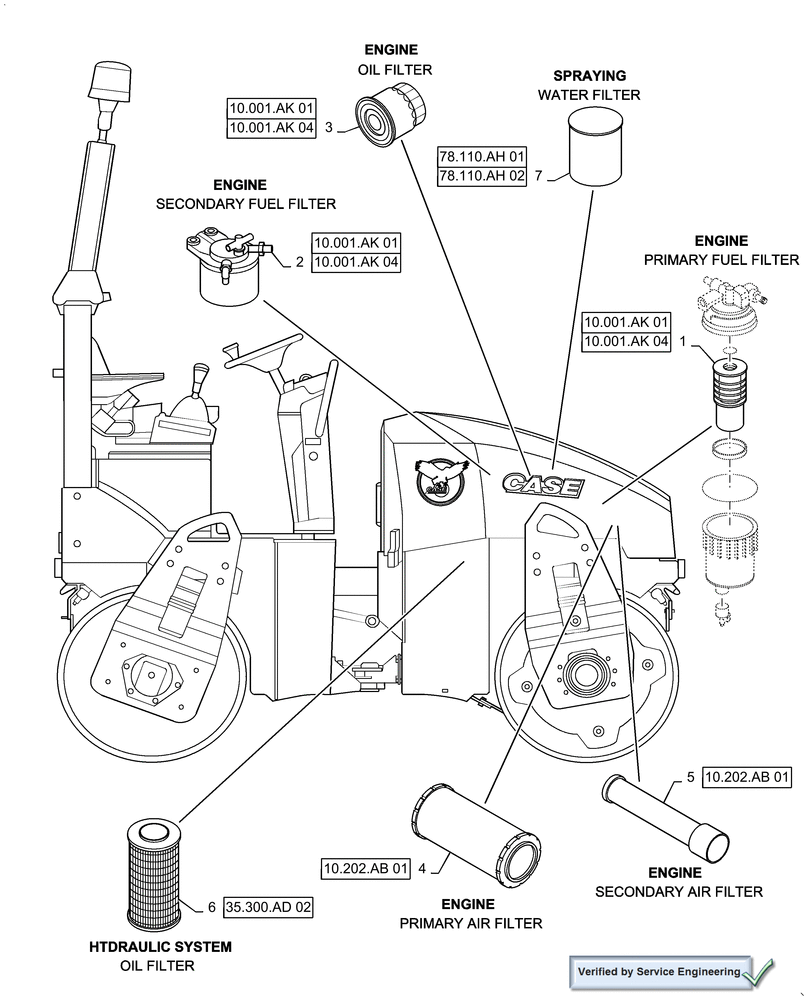

Схема запчастей Case DV36 - (05.100.03[01]) - FILTERS, DV36 (05) - SERVICE & MAINTENANCE
4
2
10.202.ab 01
10.001.ak 01
7
3
10.001.ak 01
10.202.ab 01
78.110.ah 02
10.001.ak 04
10.001.ak 04
78.110.ah 01
5
1
6
10.001.ak 04
35.300.ad 02
10.001.ak 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47419947

ELEMENT

Primary, Element

1шт.

2

47420120

FUEL FILTER

Secondary, Spin-On

1шт.

3

47420082

ENGINE OIL FILTER

Spin-On

1шт.

4

47421040

AIR FILTER

Primary

1шт.

5

47405568

FILTER STRAINER

Water System

1шт.

6

47381951

FILTER HEAD

Water Filter Head Assembly

1шт.

7

47381954

FILTER

Water Filter

1шт.

8

47421090

HYDRAULIC OIL FILTER

Hydraulic Oil Filter Assembly

1шт.

9

47529579

HYDRAULIC OIL FILTER

Hydraulic Oil Filter

1шт.

10

47421040

AIR FILTER

Air Filter Primary

1шт.

11

47522064

AIR FILTER

Secondary

1шт.
