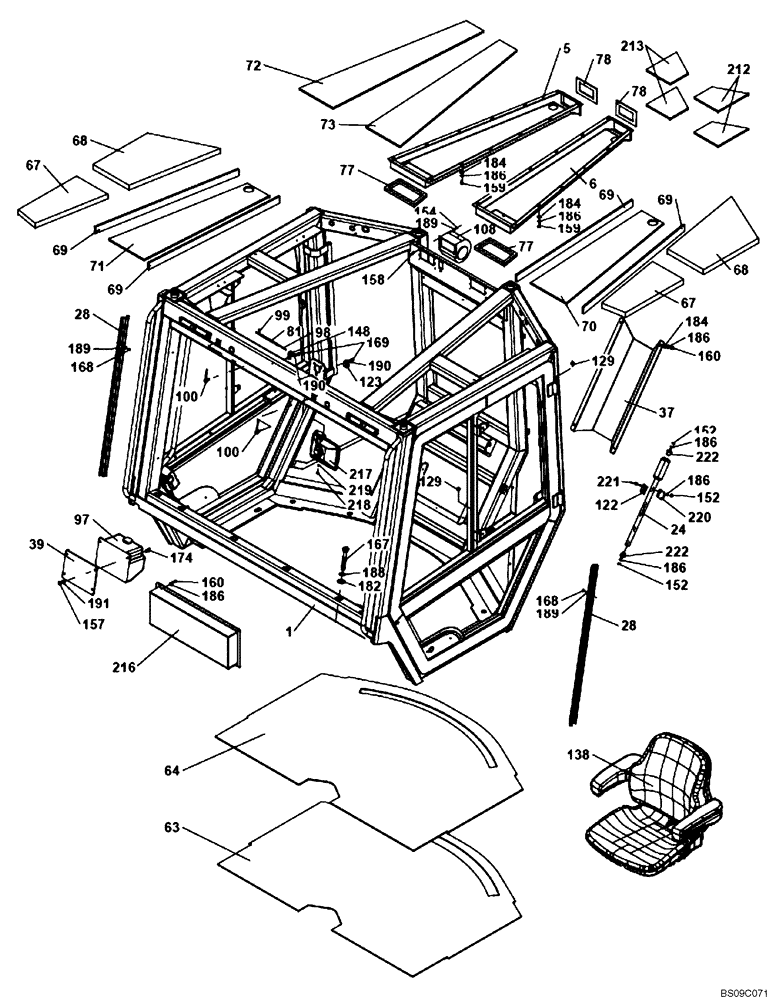

Запчасти Case DV213 (90.150.01[03]) - CAB COMPONENTS (GROUP 165C-ND129431) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

ND129432

CAB

CAB WELDMENT

1шт.

5

ND129439

DUCT

DUCT

1шт.

6

ND129440

DUCT

DUCT

1шт.

24

ND129475

LEVER

LEVER

1шт.

28

ND129444

PROTECTION STRIP

STRIP, PROTECTION

2шт.

37

ND129455

SHIELD

SHIELD

1шт.

39

ND129474

SUPPORT

SUPPORT

1шт.

63

ND129460

INSULATION

INSULATION

1шт.

64

ND129428

FLOOR MAT

MAT, FLOOR

1шт.

67

ND129496

INSULATION

INSULATION

2шт.

68

ND129497

INSULATION

INSULATION

2шт.

69

ND129498

INSULATION

INSULATION

4шт.

70

ND129499

INSULATION

INSULATION

1шт.

71

ND129500

INSULATION

INSULATION

1шт.

72

ND129501

INSULATION

INSULATION

1шт.

73

ND129502

INSULATION

INSULATION

1шт.

77

ND132742

PACKING

PACKING

2шт.

78

ND134456

PACKING

PACKING

2шт.

81

ND109362

HOSE

1шт.

97

ND065426

BOTTLE

BOTTLE

1шт.

98

ND069511

SWIVEL CONNECTION

1шт.

99

ND064661

TEE

TEE

2шт.

100

ND065218

JET

WINSCREEN SPRAYER

4шт.

108

ND129038

BLOWER

BLOWER, AIR

3шт.

122

ND117195

SPRING

SPRING

2шт.

123

ND063145

CLAMP

2шт.

129

ND064758

PLUG

CAP

8шт.

138

ND124607

SEAT COVER

Fabric; Cab Only

1шт.

148

ND063146

CLAMP

CLAMP

2шт.

152

ND021847

NUT

4шт.

154

ND107947

NUT

18шт.

157

ND027301

NUT

10шт.

158

ND023784

BOLT

18шт.

159

ND021287

BOLT,M8 x 16

35шт.

160

ND021288

BOLT

31шт.

162

ND021290

BOLT

8шт.

167

ND021234

BOLT

6шт.

168

ND024108

BOLT

BOLT

9шт.

169

ND024135

BOLT

10шт.

174

ND024388

SCREW

2шт.

182

ND029288

WASHER

WASHER

4шт.

184

ND029290

WASHER

60шт.

186

ND118926

WASHER

SPRING

76шт.

188

ND035943

WASHER

18шт.

189

ND029246

WASHER

22шт.

190

ND029248

WASHER

12шт.

191

ND029249

WASHER

8шт.

204

ND131494

SPACER

SPACER

3шт.

206

ND132329

WASHER

WASHER

18шт.

212

ND132680

INSULATION

INSULATION, LH

2шт.

213

ND132681

INSULATION

INSULATION, RH

2шт.

216

ND138080

BOX

BOX

1шт.

217

ND131468

MIRROR

MIRROR

1шт.

218

ND024122

BOLT

2шт.

219

ND029247

WASHER

6шт.

220

ND136970

SPACER

SPACER

1шт.

221

ND021173

BOLT

2шт.

222

ND079227

RUBBER BUMPER

RUBBER BUMPER

2шт.

223

ND135684

COVER PLATE

PLATE, COVER

12шт.

224

ND135683

COVER PLATE

PLATE, COVER

4шт.
