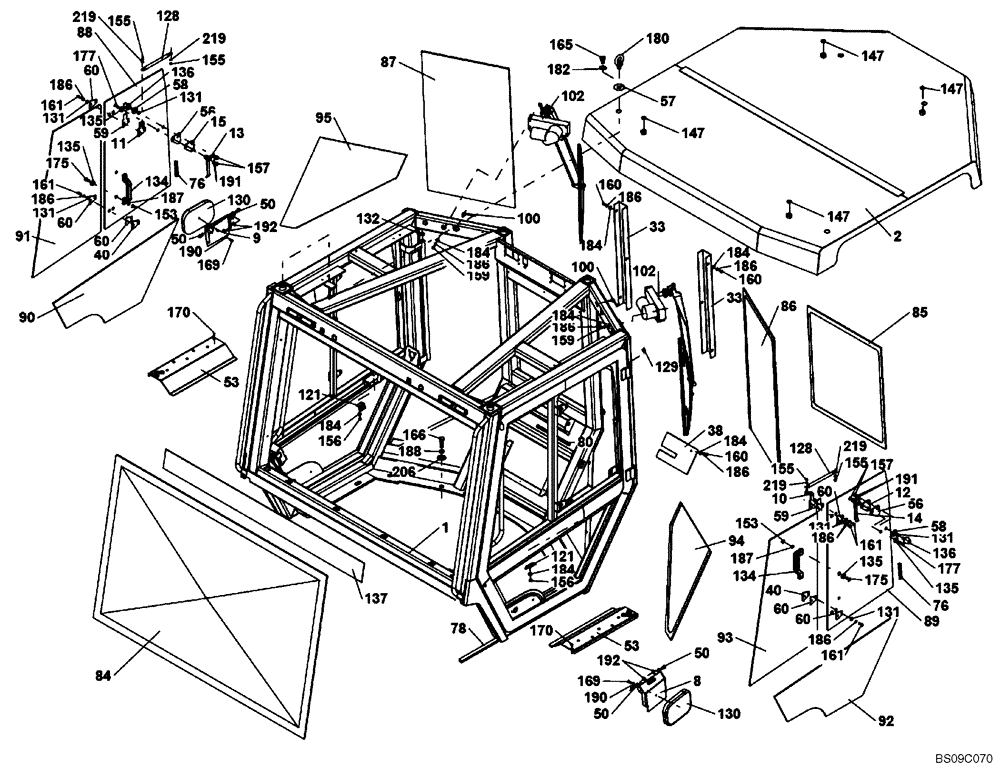

Запчасти Case DV213 (90.150.01[02]) - CAB GLASS (GROUP 165B-ND129431) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

ND129432

CAB

CAB WELDMENT

1шт.

2

ND129433

ROOF

ROOF

1шт.

8

ND129486

SUPPORT

SUPPORT, LH

1шт.

9

ND129487

SUPPORT

SUPPORT, RH

1шт.

10

ND129458

BRACKET

BRACKET

1шт.

11

ND129490

BRACKET

BRACKET

1шт.

12

ND052970

BRACKET

BRACKET

1шт.

13

ND052465

LEVER

LEVER

1шт.

14

ND052467

LEVER

LEVER

1шт.

15

ND052968

BRACKET

BRACKET

1шт.

33

ND129443

SHIELD

SHIELD

2шт.

38

ND129471

COVER PLATE

PLATE, COVER

1шт.

40

ND129456

GUIDE

GUIDE

2шт.

50

ND129488

BOLT

BOLT

4шт.

53

ND129429

SHIELD

SHIELD

2шт.

56

ND052974

ISOLATOR

ISOLATER

2шт.

57

ND129494

WASHER

WASHER

4шт.

58

ND129495

RUBBER PAD

PAD, RUBBER

2шт.

59

ND129459

ISOLATOR

ISOLATOR

2шт.

60

ND129457

PACKING

PACKING, RUBBER

6шт.

76

ND129565

PACKING

PACKING

1шт.

78

ND134456

PACKING

PACKING

2шт.

80

ND129567

STRIP

STRIP

1шт.

84

ND128841

GLASS

GLASS, FRONT

1шт.

85

ND128842

GLASS

GLASS, REAR

1шт.

86

ND128843

GLASS

GLASS, LH

1шт.

87

ND129053

GLASS

GLASS, RH REAR

1шт.

88

ND129054

GLASS

GLASS, RH DOOR

1шт.

89

ND129055

GLASS

GLASS, LH DOOR

1шт.

90

ND129056

GLASS

GLASS, RH DOOR

1шт.

91

ND129057

GLASS

GLASS, RH DOOR

1шт.

92

ND129058

GLASS

GLASS, LH DOOR

1шт.

93

ND129059

GLASS

GLASS, LH DOOR

1шт.

94

ND129060

GLASS

GLASS, LH REAR

1шт.

95

ND129061

GLASS

GLASS, RH REAR

1шт.

100

ND065218

JET

WINDSCREEN SPRAYER

4шт.

102

ND129050

WINDSHIELD WIPER

WIPER, WINDSHIELD

2шт.

121

ND129283

SPRING

SPRING

3шт.

128

ND129046

GAS STRUT

GAS STRUT

2шт.

129

ND064758

PLUG

CAP

8шт.

130

ND118352

CUSHION

CUSHION, ELBOW

2шт.

131

ND129152

GROMMET

GROMMET

10шт.

132

ND129153

PLUG

PLUG

8шт.

134

ND078408

HOLDER

HANDLE

2шт.

135

ND078499

WASHER

6шт.

136

ND079088

RUBBER BUMPER

RUBBER

2шт.

137

ND119949

STRIP

STRIP, FOIL

1шт.

147

ND117814

HOLE PLUG BUTTON

10шт.

153

ND021848

NUT

4шт.

157

ND027301

NUT

10шт.

159

ND021287

BOLT,M8 x 16

35шт.

160

ND021288

BOLT

21шт.

161

ND021289

BOLT

8шт.

165

ND021328

BOLT

4шт.

166

ND021333

BOLT

12шт.

169

ND024135

BOLT

10шт.

170

ND024371

SCREW,M5 x 10mm

10шт.

175

ND024391

SCREW,M8 x 25mm

SCREW

4шт.

177

ND024446

SCREW,M8 x 30mm

SCREW

2шт.

180

ND026172

LIFTING EYE

4шт.

182

ND029288

WASHER

WASHER

4шт.

184

ND029290

WASHER

60шт.

186

ND118926

WASHER

SPRING

76шт.

187

ND035940

SPRING WASHER

SPRING

7шт.

188

ND035943

WASHER

18шт.

190

ND029248

WASHER

12шт.

191

ND029249

WASHER

8шт.

192

ND029250

WASHER

4шт.

206

ND132329

WASHER

WASHER

18шт.

219

ND029247

WASHER

6шт.
