(90.150.01[01]) - CAB DOORS (GROUP 165A-ND129431)

Запчасти Case DV213 (90.150.01[01]) - CAB DOORS (GROUP 165A-ND129431) (90) - PLATFORM, CAB, BODYWORK AND DECALS

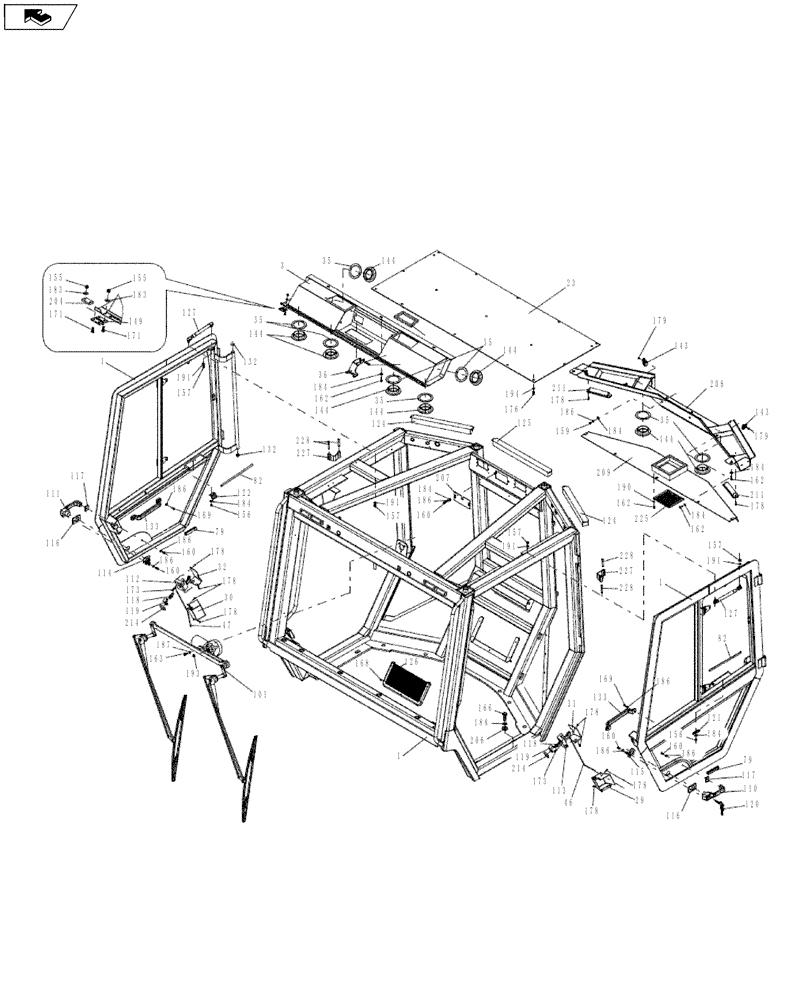

Схема запчастей Case DV213 - (90.150.01[01]) - CAB DOORS (GROUP 165A-ND129431) (90) - PLATFORM, CAB, BODYWORK AND DECALS
117
125
191
184
187
227
35
228
144
227
178
173
35
36
124
133
30
214
127
176
178
159
114
82
184
23
163
211
157
35
186
117
184
228
211
169
156
184
157
184
122
186
155
208
116
119
191
190
127
113
82
121
143
191
144
32
31
111
115
178
144
112
155
143
186
home
1
47
157
179
166
132
160
160
126
191
179
184
46
207
101
183
225
214
204
118
124
160
178
3
156
110
144
79
119
169
228
162
178
144
184
193
160
116
171
35
120
183
178
133
149
186
157
178
186
132
194
144
186
162
186
35
168
1
188
160
162
173
162
118
79
171
186
29
1
178
206
209
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

ND138108

CANOPY

CAB WELDMENT

1шт.

3

ND129442

PLENUM

PLENUM

1шт.

23

ND129470

HEADLINER

HEADLINER

1шт.

29

ND129453

SHIELD

SHIELD, LH

1шт.

30

ND129485

SHIELD

SHIELD, RH

1шт.

31

ND129452

SHIELD

SHIELD, LH

1шт.

32

ND129489

SHIELD

SHIELD, RH

1шт.

35

ND134446

WASHER

8шт.

36

ND129441

BRACKET

BRACKET

1шт.

46

ND129449

ROD

ROD, PULL

1шт.

47

ND129484

ROD

ROD, PULL

1шт.

79

ND138147

PROFILE

PROFILE, RUBBER

1шт.

82

ND132379

PACKING

PACKING

1шт.

101

ND129049

WINDSHIELD WIPER

WIPER, WINDSHIELD

1шт.

110

ND101385

HANDLE

LH DOOR

1шт.

111

ND101386

HANDLE

RH DOOR

1шт.

112

ND101387

LEVER

1шт.

113

ND101388

LEVER

1шт.

114

ND101389

LOCK

1шт.

115

ND101390

LOCK

1шт.

116

ND101391

WASHER

2шт.

117

ND101392

WASHER

2шт.

118

ND101393

PIN

STRIKER

2шт.

119

ND101394

COVER

2шт.

120

ND101395

KEY

KEY, LOCK

2шт.

121

ND129283

SPRING

SPRING

3шт.

122

ND117195

SPRING

SPRING

2шт.

124

ND129039

SUNSHADE

SUNSHADE

2шт.

125

ND063885

SUNSHADE

1шт.

126

ND064533

NET

1шт.

127

ND129045

GAS STRUT

GAS STRUT

2шт.

132

ND129153

PLUG

PLUG

8шт.

133

ND078409

HANDLE

GRAB

2шт.

139

ND078445

SECURING STRAP

Not Illustrated

16шт.

140

ND078500

COVER PLATE

PLATE, COVER; Not Illustrated

12шт.

141

ND078516

COVER PLATE

PLATE, COVER; Not Illustrated

27шт.

143

ND089998

COAT HOOK

COAT

2шт.

144

ND089999

RING

LOUVER

8шт.

149

ND064542

HINGE

HINGE

3шт.

155

ND107948

LOCK NUT

10шт.

156

ND027300

NUT

4шт.

157

ND027301

NUT

10шт.

159

ND021287

BOLT,M8 x 16

35шт.

160

ND021288

BOLT

31шт.

162

ND021290

BOLT

8шт.

163

ND021294

BOLT

5шт.

168

ND024108

BOLT

BOLT

9шт.

169

ND024135

BOLT

10шт.

171

ND024373

BOLT

12шт.

173

ND024383

SCREW,99mm

4шт.

176

ND024444

SCREW,M6 x 20mm

SCREW

9шт.

178

ND024967

SELF-TAP SCREW

SELF TAPPING

18шт.

179

ND025006

SELF-TAP SCREW

4шт.

183

ND029289

WASHER

6шт.

184

ND029290

WASHER

60шт.

186

ND118926

WASHER

SPRING

76шт.

187

ND035940

SPRING WASHER

SPRING

7шт.

188

ND035943

WASHER

18шт.

190

ND029248

WASHER

12шт.

191

ND029249

WASHER

8шт.

193

ND029322

WASHER

WASHER

1шт.

194

ND037448

WASHER

WASHER

9шт.

204

ND131494

SPACER

SPACER

3шт.

206

ND132329

WASHER

WASHER

18шт.

207

ND132332

COVER PLATE

PLATE, COVER

1шт.

208

ND132677

HOOD

HOOD

1шт.

209

ND132676

HEADLINER

HEADLINER

1шт.

211

ND127866

LOUVER

LOUVER

2шт.

214

ND132682

NUT

NUT

2шт.

215

ND133478

PACKING

PACKING, RUBBER

25шт.

225

ND140683

GRATING

GRATING

1шт.

227

ND117114

BELT

2шт.

228

ND051029

PIN

4шт.
