(75.120.01[02]) - WATER SPRINKLING SYSTEM (GROUP 94-ND135194)

Запчасти Case DV213 (75.120.01[02]) - WATER SPRINKLING SYSTEM (GROUP 94-ND135194) (75) - SOIL PREPARATION

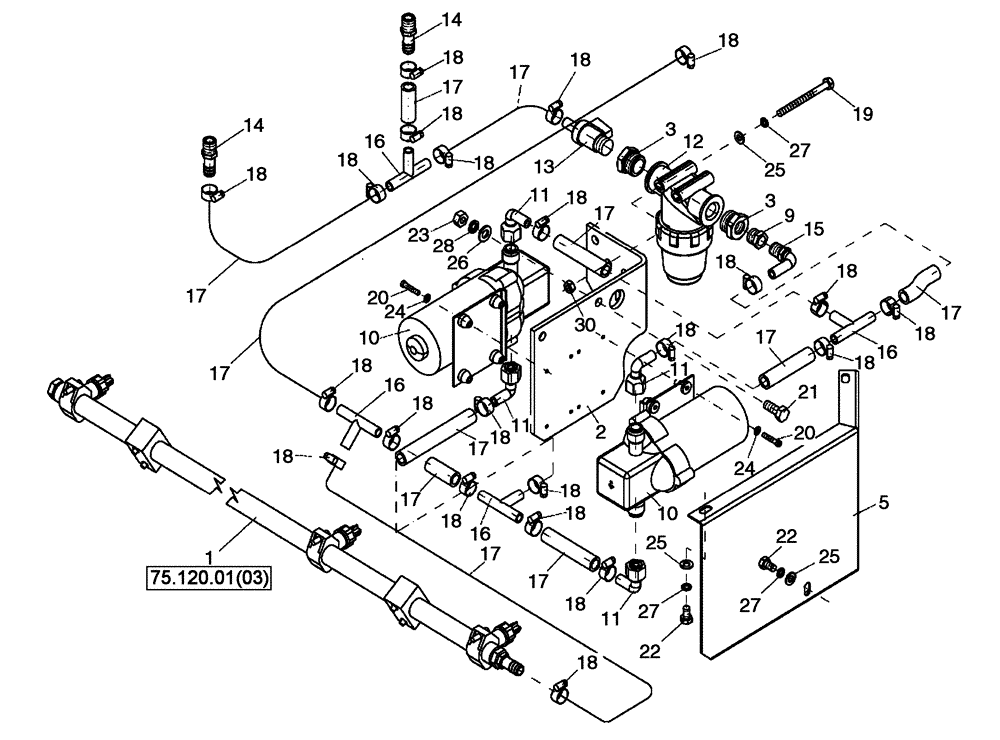

Схема запчастей Case DV213 - (75.120.01[02]) - WATER SPRINKLING SYSTEM (GROUP 94-ND135194) (75) - SOIL PREPARATION
28
26
10
17
13
17
18
18
18
22
20
17
11
3
19
15
25
14
75.120.01(03)
20
18
18
18
24
18
16
18
10
17
18
27
12
5
18
11
16
18
11
27
25
17
17
27
18
16
18
9
23
22
2
16
18
18
21
17
17
18
18
24
3
17
18
14
18
18
30
25
18
17
11
17
18
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

ND135195

SPRINKLING SYSTEM

DISTRIBUTOR, SPRINKLING PIPE

2шт.

2

ND144240

BRACKET

1шт.

3

ND142300

REDUCER

2шт.

5

ND126045

COVER PLATE

1шт.

9

ND063202

RESTRICTOR

1шт.

10

ND124209

WATER PUMP

2шт.

11

ND124210

ELBOW

4шт.

12

ND142196

WATER FILTER

WATER

1шт.

12

47854232

FILTER

1шт.

12

47854233

FILTER HEAD

1шт.

12

47854234

SEALING RING

1шт.

12

47854236

COVER

1шт.

12

48040779

CUP

1шт.

13

ND063243

COCK

CHECK VALVE

1шт.

14

ND069515

FITTING

2шт.

15

ND069512

HYD CONNECTOR

ELBOW

1шт.

16

ND069514

HYD TUBE

TUBE, HYDRAULIC TEE

4шт.

17

ND126082

HOSE

1шт.

18

ND069478

CLIP

HOSE

22шт.

19

ND021193

BOLT

2шт.

20

ND024127

BOLT

8шт.

21

ND021302

BOLT

3шт.

22

ND092867

BOLT,Hex, M8 x 14mm

3шт.

23

ND021849

NUT

3шт.

24

ND029247

WASHER

8шт.

25

ND029249

WASHER

5шт.

26

ND029250

WASHER

3шт.

27

ND029310

WASHER

SPRING

5шт.

28

ND029311

WASHER

3шт.

30

ND027301

NUT

2шт.
