(39.104.01[01]) - ARTICULATION JOINT (GROUP 65-ND135248)

Запчасти Case DV213 (39.104.01[01]) - ARTICULATION JOINT (GROUP 65-ND135248) (39) - FRAMES AND BALLASTING

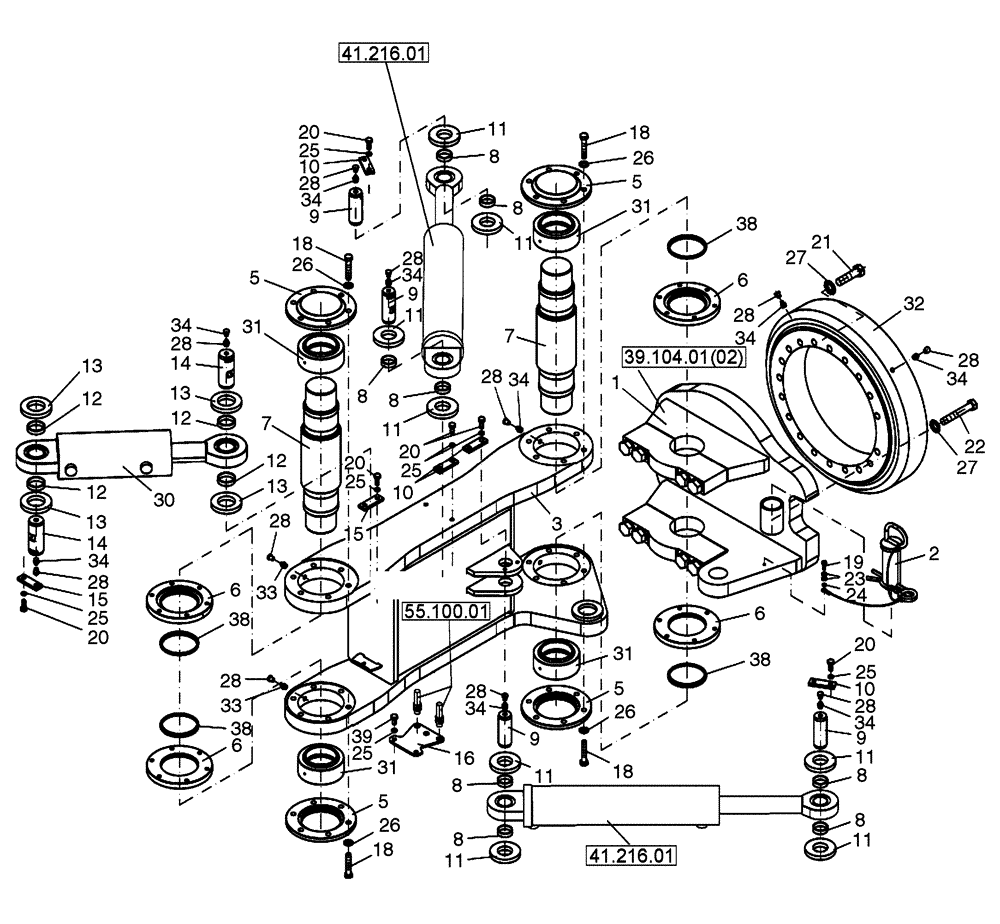

Схема запчастей Case DV213 - (39.104.01[01]) - ARTICULATION JOINT (GROUP 65-ND135248) (39) - FRAMES AND BALLASTING
25
11
10
11
20
18
15
34
34
14
34
7
12
8
13
9
16
26
5
8
18
34
10
38
23
26
28
6
25
13
10
24
31
30
2
8
32
11
11
13
31
28
28
9
7
31
33
28
39.104.01(02)
8
55.100.01
41.216.01
8
41.216.01
5
13
25
12
9
8
18
25
19
8
28
8
12
25
34
39
11
38
34
28
5
6
33
5
28
20
25
22
20
11
38
5
34
11
11
21
3
18
12
27
31
38
28
26
20
15
28
20
26
34
28
6
27
34
1
14
28
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

ND125961

BRACKET, PIVOT

PIVOT BRACKET BRACKET, ARTICULATION JOINT

1шт.

2

ND125986

PIN

PIN

1шт.

3

ND135249

ARM

ARM

1шт.

5

ND125919

COVER

COVER

4шт.

6

ND125920

COVER PLATE

PLATE, COVER

4шт.

7

ND125921

PIN

PIN

2шт.

8

ND125925

RING

RING

8шт.

9

ND125926

PIN

PIN

4шт.

10

ND125927

LOCKING BAR

BAR, LOCKING

4шт.

11

ND126004

RING

RING

8шт.

12

ND134634

RING

RING

4шт.

13

ND134635

RING

RING

4шт.

14

ND134636

PIN

PIN

2шт.

15

ND134637

LOCKING BAR

BAR, LOCKING

2шт.

16

ND141335

BRACKET

BRACKET

1шт.

18

ND021199

BOLT

24шт.

19

ND021288

BOLT

1шт.

20

ND021294

BOLT

12шт.

21

ND021322

BOLT

BOLT

23шт.

22

ND021323

BOLT

BOLT

24шт.

23

ND029248

WASHER

2шт.

24

ND029309

SPRING WASHER

Spring

1шт.

25

ND029310

WASHER

Spring

14шт.

26

ND035941

WASHER

24шт.

27

ND118927

WASHER

47шт.

28

ND064758

PLUG

Cap

14шт.

30

ND134663

STEERING CYLINDER

CYLINDER, STEERING

1шт.

31

ND068776

BALL BEARING,70mm ID x 105mm OD x 49mm W

4шт.

32

ND124214

BEARING

1шт.

33

ND070130

LUBE NIPPLE

1шт.

34

ND070133

LUBE NIPPLE,M10 x 1

13шт.

38

ND123234

SCRAPER RING

SCRAPER, RING

4шт.

39

ND021293

BOLT

2шт.
