(39.100.01[02]) - FRONT FRAME MIRROR (GROUP156-ND138073) - AFTER DDDDV213NANTL2001

Запчасти Case DV213 (39.100.01[02]) - FRONT FRAME MIRROR (GROUP156-ND138073) - AFTER DDDDV213NANTL2001 (39) - FRAMES AND BALLASTING

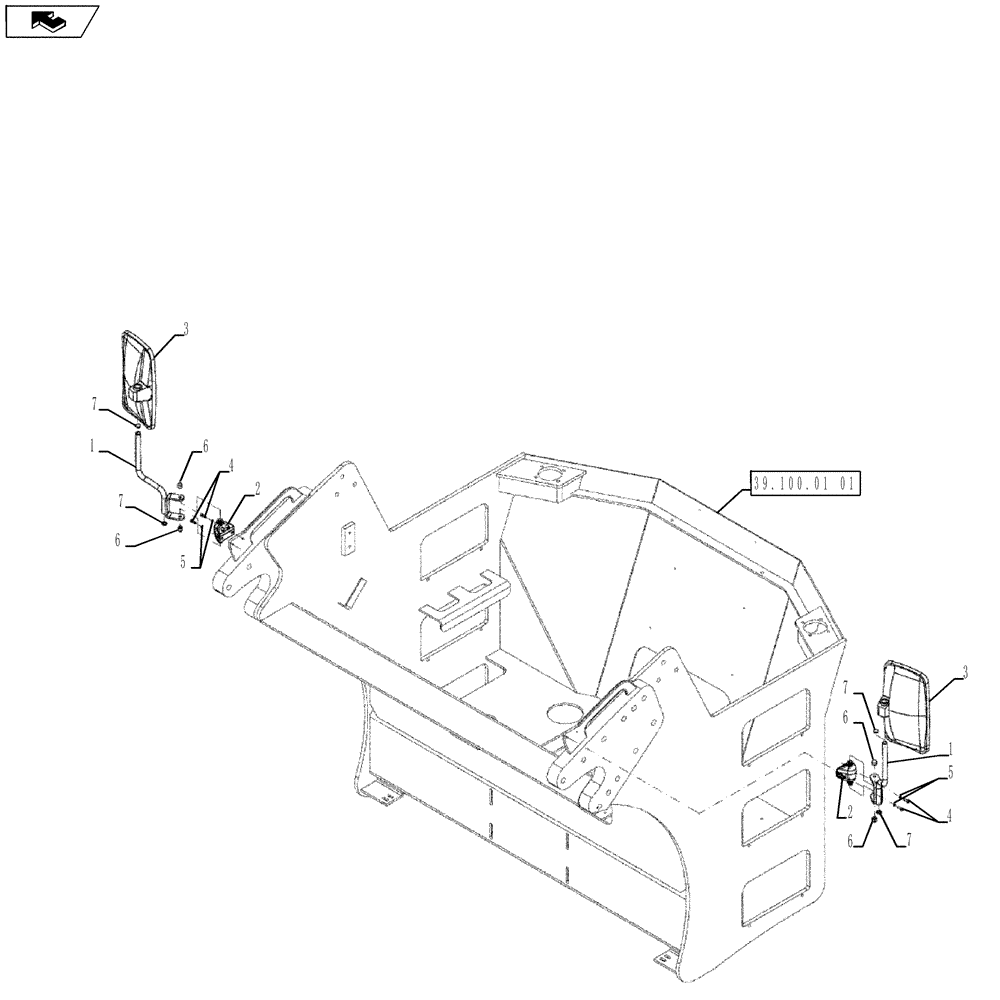

Схема запчастей Case DV213 - (39.100.01[02]) - FRONT FRAME MIRROR (GROUP156-ND138073) - AFTER DDDDV213NANTL2001 (39) - FRAMES AND BALLASTING
7
3
2
4
3
6
1
4
7
5
39.100.01 01
6
6
5
2
7
1
7
home
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

ND146536

MIRROR ARM

ARM, MIRROR

2шт.

2

ND145373

BRACKET

BRACKET

2шт.

3

ND064408

MIRROR

2шт.

4

ND024229

BOLT

4шт.

5

ND029309

SPRING WASHER

SPRING

4шт.

6

ND078517

COVER

4шт.

7

ND145317

PLUG

4шт.
