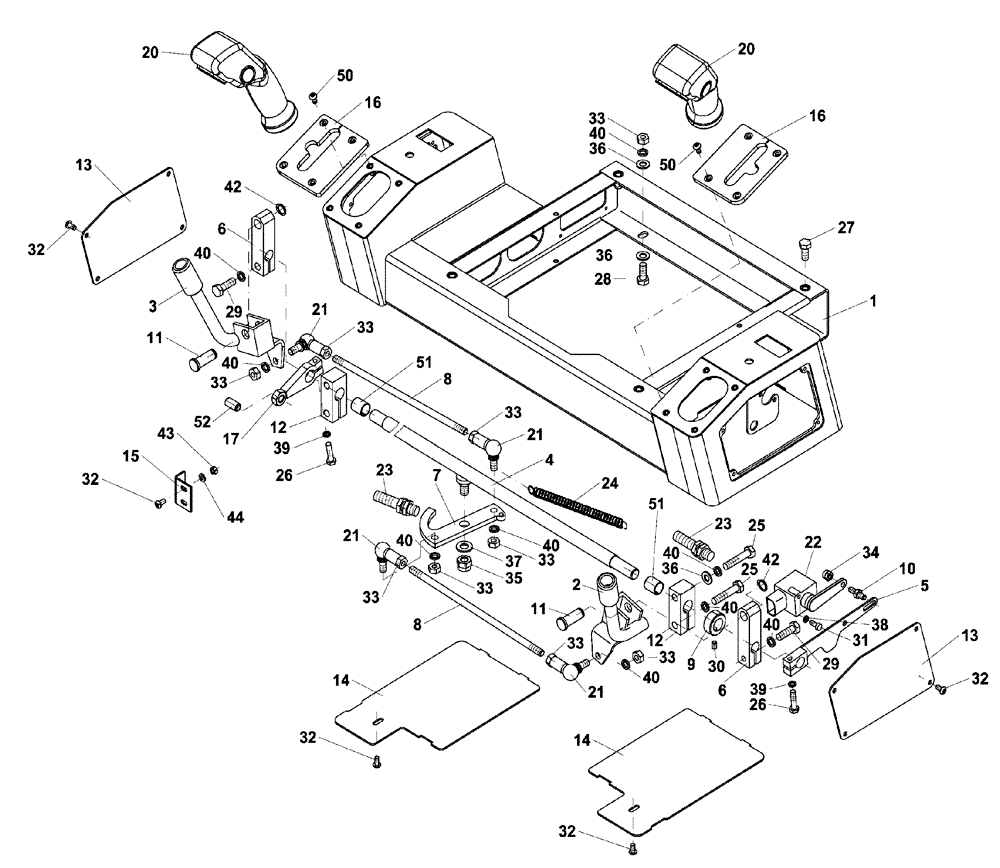

Запчасти Case DV213 (35.470.01) - TRAVEL CONTROL (GROUP 185-1-ND126019) (35) - HYDRAULIC SYSTEMS

1

ND126020

FRAME

1шт.

2

ND126021

CONTROL LEVER

1шт.

3

ND126022

CONTROL LEVER

1шт.

4

ND126023

CONTROL SHAFT

1шт.

5

ND126028

TRIP ARM

1шт.

6

ND126024

LEVER

2шт.

7

ND126025

LEVER

1шт.

8

ND126026

THREADED ROD

2шт.

9

ND126027

COLLAR

1шт.

10

ND126029

STUD

1шт.

11

ND126030

HEADED PIN

2шт.

12

ND126031

SUPPORT

2шт.

13

ND126032

ACCESS COVER

2шт.

14

ND126033

ACCESS COVER

2шт.

15

ND146439

BRACKET

1шт.

16

ND126039

RETAINER

2шт.

17

ND146548

LEVER

1шт.

20

ND124420

CONTROL

2шт.

21

ND124421

BALL JOINT

4шт.

22

ND124041

SWITCH

1шт.

23

ND123540

SENDER UNIT

2шт.

24

ND037228

SPRING

1шт.

25

ND021185

BOLT,Hex, M8 x 40mm

4шт.

26

ND021290

BOLT

2шт.

27

ND110079

BOLT

4шт.

28

ND127695

BOLT

4шт.

29

ND021295

BOLT

2шт.

30

ND024758

SET SCREW

1шт.

31

ND024122

BOLT

2шт.

32

ND124536

BOLT

16шт.

33

ND021848

NUT

8шт.

34

ND027300

NUT

1шт.

35

ND027302

NUT

1шт.

36

ND029249

WASHER

10шт.

37

ND029250

WASHER

1шт.

38

ND029308

WASHER

2шт.

39

ND029309

SPRING WASHER

2шт.

40

ND029310

WASHER

10шт.

42

ND069817

SNAP RING

2шт.

43

ND021846

NUT

2шт.

44

ND029247

WASHER

2шт.

50

ND127694

BOLT

8шт.

51

ND035955

BUSHING

2шт.

52

ND144148

PIN

1шт.
