/ / / / / / / / (35.353.01[01]) - HYDRAULIC TRAVEL CIRCUIT (GROUP 350-ND135214)

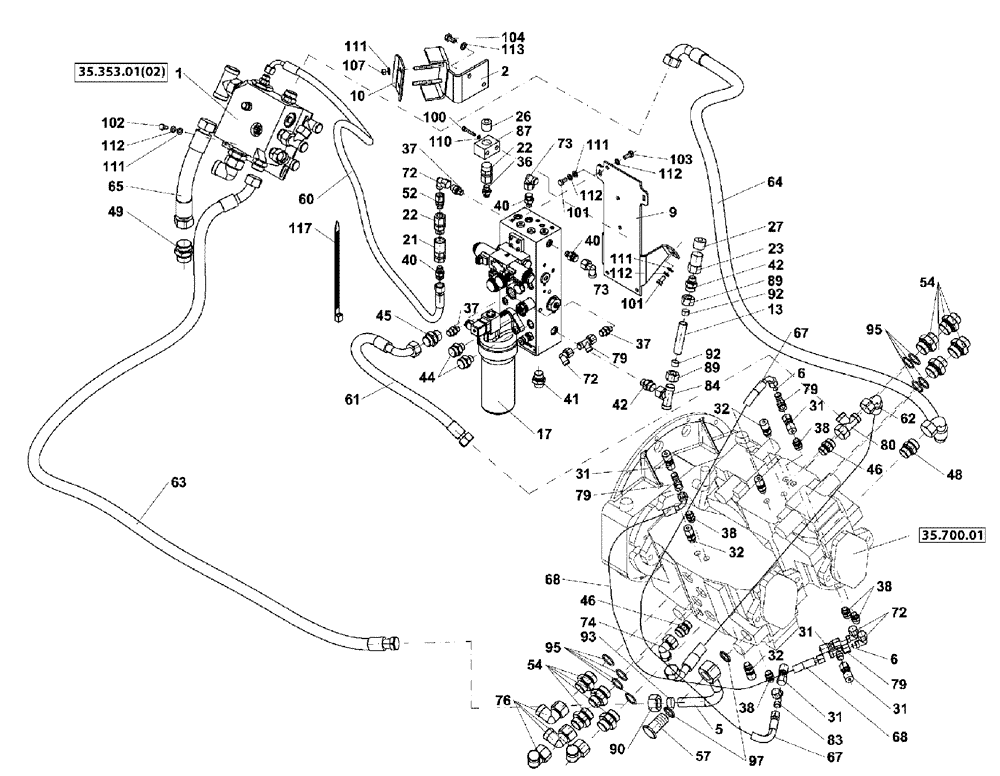

Запчасти Case DV213 (35.353.01[01]) - HYDRAULIC TRAVEL CIRCUIT (GROUP 350-ND135214) (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case DV213 - (35.353.01[01]) - HYDRAULIC TRAVEL CIRCUIT (GROUP 350-ND135214) (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/293093.png)
13
107
27
95
41
49
101
38
62
64
42
113
1
74
63
45
112
111
60
87
90
32
9
102
68
93
40
46
95
104
54
31
72
83
112
46
21
37
67
22
111
79
84
52
79
72
79
61
17
73
40
103
31
26
76
11
57
31
37
92
117
65
112
38
48
38
80
73
67
2
10
23
97
89
112
32
5
6
68
42
54
38
40
22
36
101
37
92
89
110
72
31
35.353.01(02)
35.700.01
111
79
31
6
44
100
2
ND135222
BRACKET
BRACKET
1шт.
9
ND135245
BRACKET
BRACKET
1шт.
10
ND131506
CLAMP
CLAMP
1шт.
13
ND135267
PIPE
PIPE
1шт.
17
ND125512
CONTROL VALVE
VALVE, CONTROL
1шт.
22
ND062280
QUICK MALE COUPLING
1шт.
23
ND112942
FITTING
QUICK COUPLING
1шт.
26
ND062387
CAP
CAP
1шт.
27
ND062318
PLUG
COVER
1шт.
36
ND062220
HYD CONNECTOR
1шт.
37
ND062153
HYD CONNECTOR
2шт.
40
ND062173
HYD CONNECTOR
2шт.
41
ND062180
HYD CONNECTOR
1шт.
42
ND062145
HYD CONNECTOR
2шт.
44
ND062235
FITTING
2шт.
45
ND062172
HYD CONNECTOR
CONNECTOR, HYDRAULIC
1шт.
46
ND062128
HYD CONNECTOR
1шт.
61
ND061498
HYDRAULIC HOSE
1шт.
72
ND062425
90 ELBOW
ELBOW
1шт.
73
ND062366
ELBOW
2шт.
79
ND062413
HYD CONNECTOR
TEE
1шт.
80
ND062263
TEE
TEE
1шт.
84
ND062392
HYD CONNECTOR
1шт.
87
ND062001
CLAMP
1шт.
89
ND062058
NUT
2шт.
92
ND062037
SEAL
2шт.
100
ND024235
BOLT
2шт.
101
ND021293
BOLT
4шт.
103
ND021294
BOLT
5шт.
104
ND021301
BOLT
2шт.
107
ND021848
NUT
2шт.
110
ND029309
SPRING WASHER
2шт.
111
ND029249
WASHER
1шт.
112
ND035940
SPRING WASHER
1шт.
113
ND035941
WASHER
2шт.
