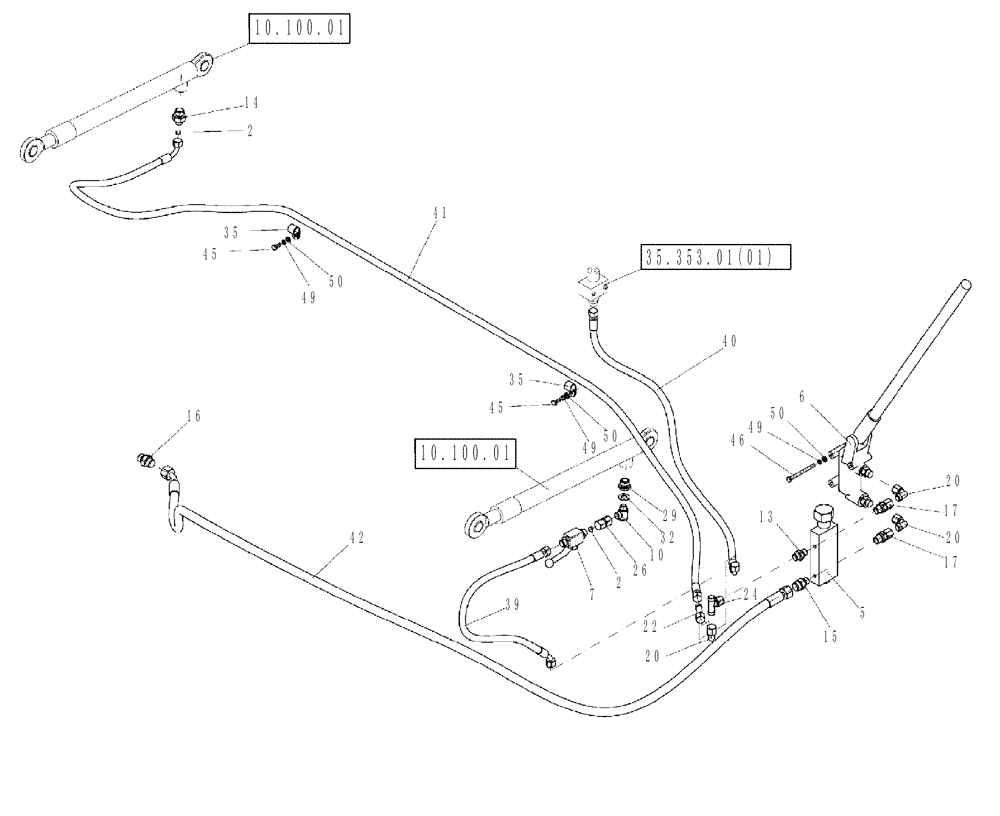

Запчасти Case DV213 (35.100.01) - HYDRAULIC LIFT SYSTEM (GROUP 385-ND135234) (35) - HYDRAULIC SYSTEMS

2

ND121526

ORIFICE

2шт.

5

ND117464

CONNECTING BLOCK

1шт.

6

ND067870

HYDRAULIC PUMP

HAND

1шт.

7

ND120031

DRAIN VALVE

HYDRAULIC SHUT-OFF

1шт.

10

ND062493

HYD CONNECTOR

ELBOW

1шт.

13

ND062220

HYD CONNECTOR

1шт.

14

ND062221

HYD CONNECTOR

1шт.

15

ND062173

HYD CONNECTOR

1шт.

16

ND062154

HYD CONNECTOR

1шт.

17

ND062206

HYD CONNECTOR

2шт.

20

ND062414

ELBOW

3шт.

22

ND062313

HYD CONNECTOR

TEE

1шт.

24

ND062326

HYD CONNECTOR

TEE

1шт.

26

ND120032

COUPLING

HYDRAULIC

1шт.

29

ND125778

REDUCER FITTING

REDUCER, FITTING

1шт.

32

ND073355

SEAL

1шт.

35

ND063144

CLAMP

2шт.

39

ND125221

HYDRAULIC HOSE

HOSE, HYDRAULIC

1шт.

40

ND132121

HYDRAULIC HOSE

HOSE, HYDRAULIC

1шт.

41

ND103635

HYDRAULIC HOSE

1шт.

42

ND133345

HYDRAULIC HOSE

HOSE, HYDRAULIC

1шт.

45

ND110232

BOLT

2шт.

46

ND021179

BOLT

3шт.

49

ND029309

SPRING WASHER

SPRING

5шт.

50

ND029248

WASHER

5шт.
