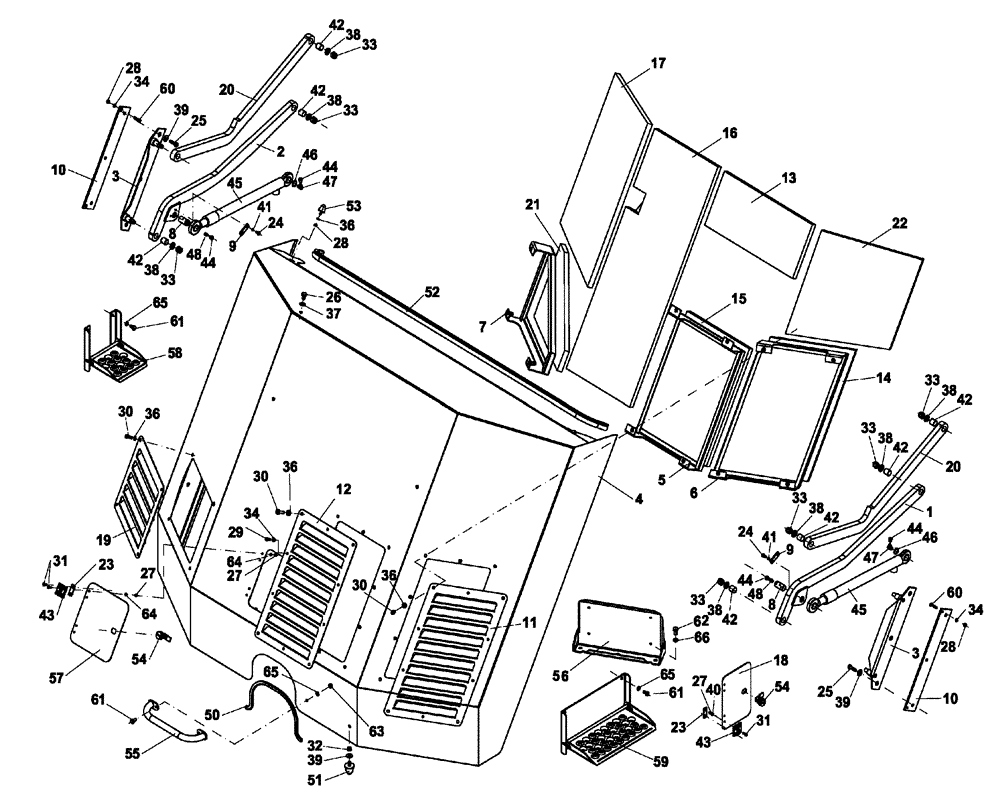

Запчасти Case DV213 (10.100.01) - ENGINE HOOD (GROUP 200-ND135205) (10) - ENGINE

1

ND125972

ARM

ARM

1шт.

2

ND125973

ARM

ARM

1шт.

3

ND125979

PIVOT PLATE

PIVOT, PLATE

2шт.

4

ND144227

ENGINE HOOD

HOOD, ENGINE

1шт.

5

ND135209

BRACKET

BRACKET

1шт.

6

ND135210

BRACKET

BRACKET

1шт.

7

ND135239

BRACKET

BRACKET

1шт.

8

ND125970

PIN

PIN

2шт.

9

ND125971

LOCKING BAR

BAR, LOCKING

2шт.

11

ND135207

LOUVER

LOUVER

1шт.

12

ND135208

LOUVER

LOUVER

1шт.

13

ND134506

INSULATION

INSULATION

1шт.

14

ND134518

INSULATION

INSULATION

1шт.

15

ND134519

INSULATION

INSULATION

1шт.

16

ND142249

INSULATION

INSULATION

1шт.

17

ND134521

INSULATION

INSULATION

1шт.

18

ND135230

DOOR

DOOR

1шт.

19

ND135232

LOUVER

LOUVER

1шт.

20

ND135236

ARM

ARM

2шт.

21

ND134538

INSULATION

INSULATION

1шт.

22

ND134539

INSULATION

INSULATION

1шт.

23

ND125976

SHIM

SHIM

4шт.

24

ND021287

BOLT,M8 x 16

4шт.

25

ND021296

BOLT

6шт.

26

ND092562

BOLT

2шт.

27

ND021846

NUT

12шт.

28

ND021847

NUT

6шт.

29

ND024137

BOLT

12шт.

30

ND024144

BOLT

BOLT

12шт.

31

ND024441

SCREW,M5 x 16mm

SCREW

16шт.

32

ND027301

NUT

2шт.

33

ND027303

NUT

8шт.

34

ND029248

WASHER

14шт.

36

ND029249

WASHER

12шт.

37

ND029250

WASHER

2шт.

38

ND029251

WASHER

8шт.

39

ND029291

WASHER

8шт.

40

ND029308

WASHER

SPRING

4шт.

41

ND029309

SPRING WASHER

SPRING

4шт.

42

ND035961

BUSHING

8шт.

43

ND064542

HINGE

HINGE

4шт.

44

ND064758

PLUG

CAP

4шт.

45

ND117466

HYDRAULIC CYLINDER

2шт.

46

ND069824

SNAP RING

RING, SNAP

2шт.

47

ND070130

LUBE NIPPLE

2шт.

48

ND070132

FITTING

FITTING, LUBE

2шт.

50

ND135266

TRIM

TRIM

1шт.

51

ND079088

RUBBER BUMPER

RUBBER

2шт.

52

ND126092

PACKING

PACKING

1шт.

53

ND079227

RUBBER BUMPER

RUBBER BUMPER

2шт.

54

ND101397

LOCK

DOOR, For Key See 83

2шт.

57

ND144218

STEP

STEP

1шт.

58

ND142656

HANDLE

HANDLE

1шт.

61

ND142242

COVER PLATE

PLATE, COVER

1шт.

62

ND125974

DOOR

DOOR

1шт.

66

ND090748

STEP

1шт.

67

ND122467

STEP

STEP

1шт.

71

ND024381

SCREW

4шт.

72

ND021293

BOLT

10шт.

73

ND021301

BOLT

3шт.

76

ND021848

NUT

2шт.

79

ND124398

LOCK WASHER

WASHER, LOCK

8шт.

80

ND118926

WASHER

SPRING

4шт.

81

ND035940

SPRING WASHER

SPRING

10шт.

82

ND035941

WASHER

3шт.

83

ND101395

KEY

1шт.
