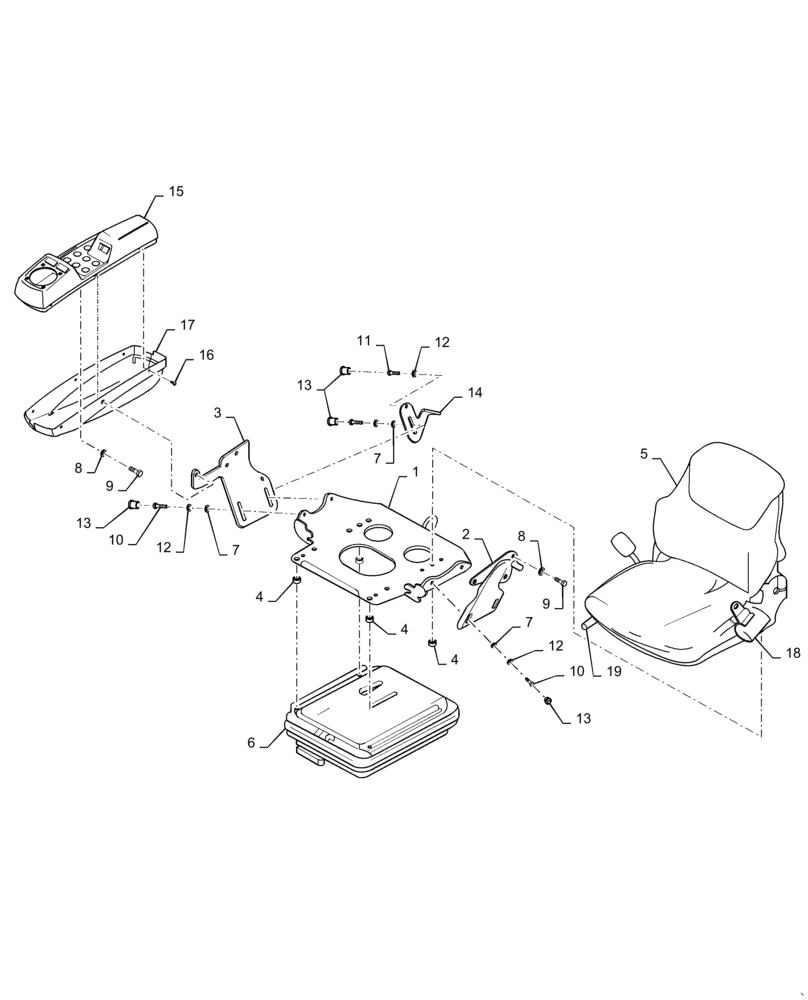

Запчасти Case DV210C (90.110.AP[02]) - OPERATORS STAND (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47682625

BRACKET

1шт.

2

47682638

BRACKET

1шт.

3

47682640

BRACKET

1шт.

4

47682663

SPACER

4шт.

5

47683060

DRIVER SEAT

Operators Seat

1шт.

6

47683061

SUSPENSION

, Serial Range: -NFNTR2035

1шт.

6

47895988

SUSPENSION

, Start Serial: NFNTR2036

1шт.

6

47683061

SUSPENSION

, Serial Range: -NFNTL2013

1шт.

6

47895988

SUSPENSION

, Start Serial: NFNTL2014

1шт.

7

ND029285

WASHER

4шт.

8

ND118653

WASHER

6шт.

9

ND024230

BOLT

6шт.

10

ND024245

BOLT

4шт.

11

ND024243

BOLT

2шт.

12

ND124603

WASHER

7шт.

13

ND078517

COVER

5шт.

14

47683155

BRACKET

1шт.

15

47683327

COVER

Upper Right Hand Console

1шт.

16

48040700

SCREW

6шт.

17

47683328

COVER

Lower Right Hand Console

1шт.

18

ND137124

SEAT BELT

1шт.

19

47835895

WIRE HARNESS

Operator Presence

1шт.
