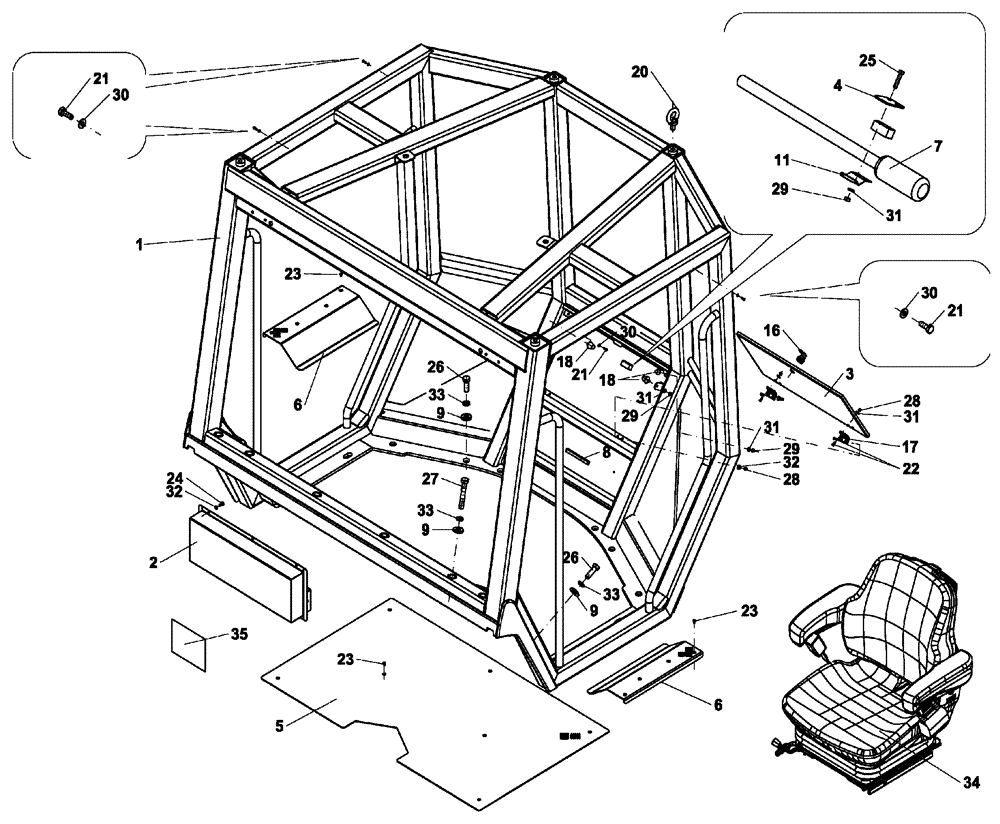

Запчасти Case DV210 (90.114.01) - R.O.P.S. INSTALLATION GROUP 180-ND138078) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

ND143039

ROPS

1шт.

2

ND138080

BOX

1шт.

3

ND138079

DOOR

1шт.

4

ND136970

SPACER

1шт.

5

ND136458

FLOOR

1шт.

6

ND136459

PROTECTION PLATE

2шт.

7

ND129475

LEVER

1шт.

8

ND138148

TRIM

1шт.

9

ND132329

WASHER

16шт.

11

ND117195

SPRING

1шт.

13

ND078516

COVER PLATE

14шт.

14

ND135684

COVER PLATE

12шт.

15

ND135683

COVER PLATE

4шт.

16

ND101397

LOCK

1шт.

17

ND064542

HINGE

2шт.

18

ND079227

RUBBER BUMPER

4шт.

20

ND026172

LIFTING EYE

4шт.

21

ND023784

BOLT

4шт.

22

ND024366

SCREW,M4 x 16mm

8шт.

23

ND024371

SCREW,M5 x 10mm

17шт.

24

ND021288

BOLT

6шт.

25

ND021291

BOLT

2шт.

26

ND021333

BOLT

10шт.

27

ND021234

BOLT

6шт.

28

ND107948

LOCK NUT

8шт.

29

ND021847

NUT

5шт.

30

ND029246

WASHER

4шт.

31

ND029289

WASHER

8шт.

32

ND118926

WASHER

11шт.

33

ND035943

WASHER

16шт.

34

ND121795

SEAT COVER

Vinyl; Canopy Only

1шт.

35

ND081592

DECAL

1шт.
