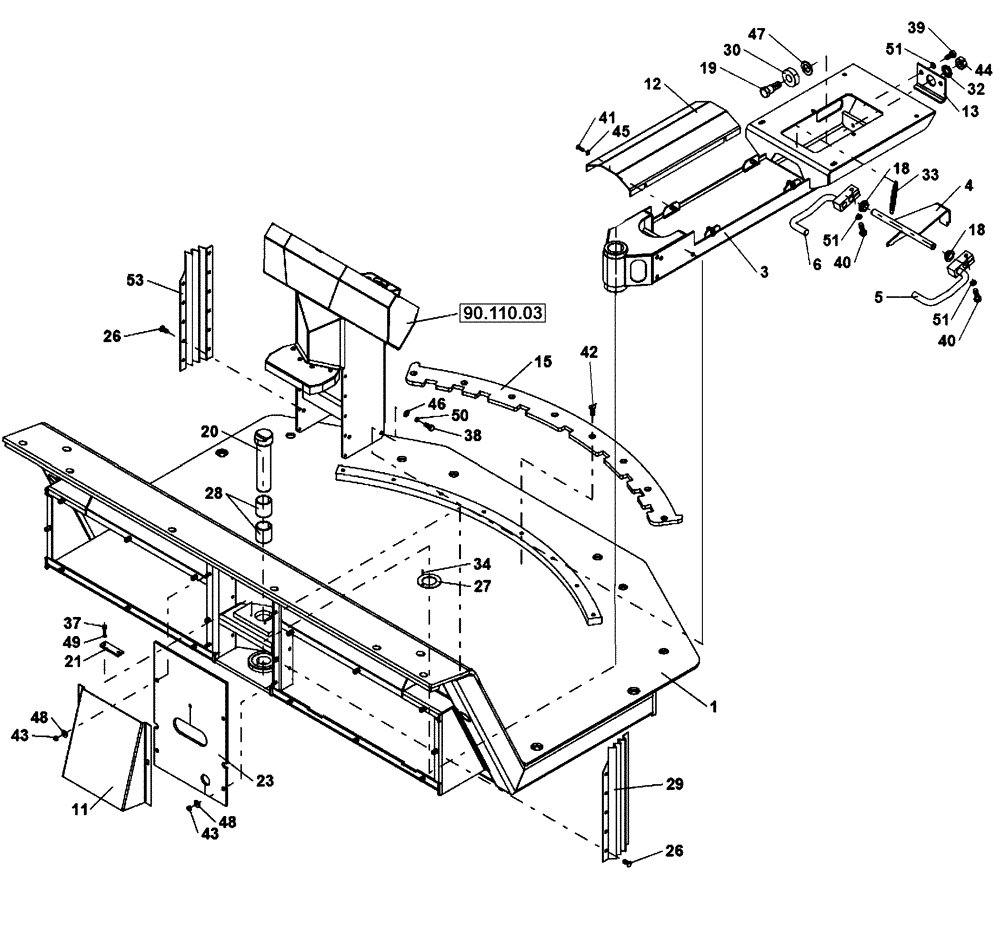

Запчасти Case DV210 (90.110.01) - PLATFORM (GROUP 155-ND125990) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

ND125987

FRAME

FRAME

1шт.

3

ND125988

BRACKET

BRACKET

1шт.

4

ND125996

LATCH

LATCH

1шт.

5

ND125997

LEVER

LEVER, LH

1шт.

6

ND125998

LEVER

LEVER, RH

1шт.

11

ND126052

COVER PLATE

PLATE, COVER

1шт.

12

ND126007

COVER PLATE

PLATE, COVER

1шт.

13

ND125989

BRACKET

BRACKET

1шт.

15

ND125991

BRACKET

BRACKET

1шт.

18

ND126001

BUSHING

BUSHING

2шт.

19

ND126008

SHAFT

SHAFT

1шт.

20

ND142213

PIN

PIN

1шт.

21

ND126009

LOCKING BAR

BAR, LOCKING

1шт.

23

ND126053

SHIELD

SHIELD, RUBBER

1шт.

26

ND078508

CLAMP

22шт.

27

ND120030

THRUST WASHER

WASHER, THRUST

1шт.

28

ND035972

BUSHING

BUSHING

2шт.

29

ND129844

SHIELD

SHIELD

1шт.

30

ND069179

SPACER

SPACER

1шт.

32

ND035943

WASHER

1шт.

33

ND037298

GUIDE

PULL SPRING

1шт.

34

ND032880

PIN

PIN

1шт.

37

ND021288

BOLT

2шт.

38

ND021294

BOLT

4шт.

39

ND021301

BOLT

2шт.

40

ND021303

BOLT

2шт.

41

ND024135

BOLT

4шт.

42

ND024391

SCREW,M8 x 25mm

SCREW

8шт.

43

ND021847

NUT

4шт.

44

ND021851

NUT

1шт.

45

ND029248

WASHER

4шт.

46

ND029249

WASHER

4шт.

47

ND029255

WASHER

1шт.

48

ND029282

WASHER

4шт.

49

ND029309

SPRING WASHER

2шт.

50

ND029310

WASHER

4шт.

51

ND029311

WASHER

4шт.

53

ND129845

SHIELD

SHIELD

1шт.
