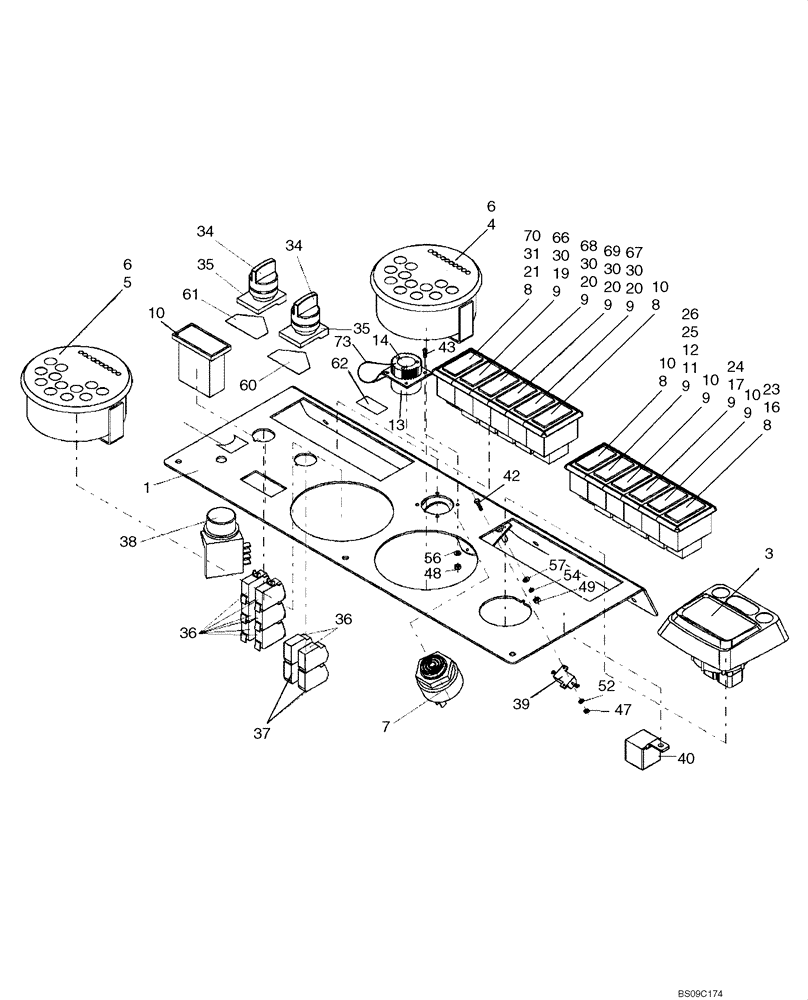

Запчасти Case DV210 (55.512.01) - DASH BOARD SWITCHES AND GAUGES (GROUP 408-1-ND143127) (55) - ELECTRICAL SYSTEMS

1

ND142621

DASHBOARD

DASHBOARD

1шт.

3

ND137967

DISPLAY

DISPLAY

1шт.

4

ND126647

MILES COUNTER DEVICE

CLUSTER, INDICATORS

1шт.

5

ND126648

MILES COUNTER DEVICE

CLUSTER, INDICATORS

1шт.

6

ND126777

RUBBER RING

RING, RUBBER

2шт.

7

ND093278

BUZZER

LEVEL SIGNAL

1шт.

8

ND065309

BEZEL

4шт.

9

ND065310

TERMINAL

8шт.

10

ND065391

COVER

5шт.

11

ND065311

INDICATOR LIGHT

PILOT LAMP

2шт.

12

ND065422

SWITCH

SWITCH

2шт.

13

ND131473

SOCKET

1шт.

14

ND131470

COVER

1шт.

16

ND065307

SWITCH

1шт.

17

ND065335

SWITCH

1шт.

18

ND065314

SWITCH

1шт.

19

ND065432

SWITCH

1шт.

20

ND065393

SWITCH

2шт.

21

ND065436

SWITCH

SWITCH

1шт.

23

ND065395

LENS

1шт.

24

ND065342

LENS

1шт.

25

ND065352

LENS

LENS

2шт.

26

ND065394

LENS

1шт.

30

ND065354

LENS

4шт.

31

ND117687

TYPE PLATE

LENS

1шт.

34

ND103421

KNOB

KNOB, CONTROL

2шт.

35

ND120063

FLANGE

2шт.

36

ND124175

CONTACT PLATE

CONTACT

8шт.

37

ND124174

CONTACT PLATE

2шт.

38

ND110561

POTENTIOMETER

1шт.

39

ND108032

RESISTOR

1шт.

40

ND129302

RELAY

RELAY

1шт.

42

ND024097

BOLT

2шт.

43

ND024102

BOLT

4шт.

47

ND026411

NUT

2шт.

48

ND026412

NUT

4шт.

49

ND021846

NUT

2шт.

52

ND029324

WASHER

2шт.

54

ND029308

WASHER

SPRING

1шт.

56

ND029245

WASHER

4шт.

57

ND029247

WASHER

2шт.

60

ND127055

DECAL

DECAL

1шт.

61

ND134694

DECAL

DECAL

1шт.

62

ND114986

SYMBOLS

SYMBOL DECAL

1шт.

63

ND114987

SYMBOLS

SYMBOL DECAL

1шт.

66

ND138527

DECAL

1шт.

67

ND127057

DECAL

DECAL

1шт.

68

ND127061

DECAL

DECAL

1шт.

69

ND127056

DECAL

DECAL

1шт.

70

ND114989

SYMBOLS

SYMBOL DECAL

1шт.

73

ND065980

WIRE CONNECTOR

CABLE

1шт.

74

ND078447

CABLE TIE

CABLE STRAP Strap

20шт.

75

ND078445

SECURING STRAP

Strap

10шт.
