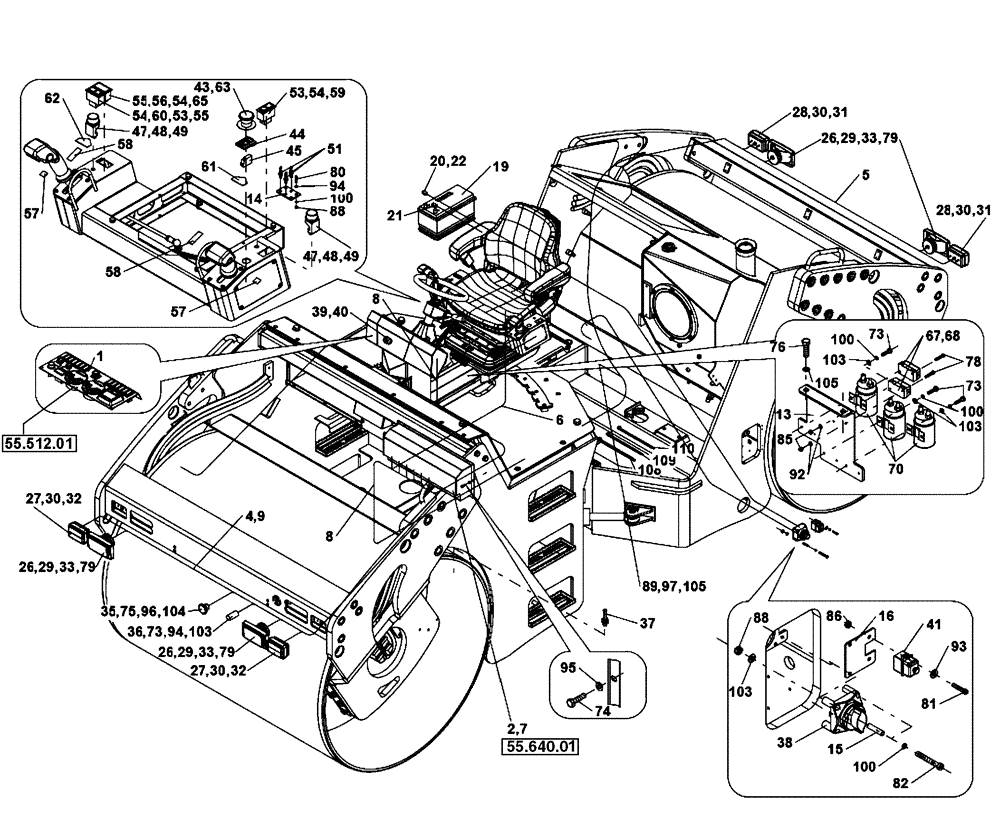

Запчасти Case DV210 (55.100.01) - ELECTRICAL SYSTEM (GROUP 408-ND142661) (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
DASHBOARD; ND143127
1шт.
2
REF
INSTRUCTION
ELECTRICAL DISTRIBUTION; ND142668
1шт.
4
ND142665
HARNESS
HARNESS 1
1шт.
5
ND146382
HARNESS
HARNESS 2, Serial Range: -DDDDV210NCNTL2084
1шт.
5
47437360
WIRE HARNESS
HARNESS 2, Serial Range: DDDDV210NCNTL2085-DDDDV210NDNTL2180
1шт.
5
47718793
WIRE HARNESS
HARNESS 2, Start Serial: DDDDV210NDNTL2181
1шт.
6
ND142664
HARNESS
HARNESS 3
1шт.
7
ND142662
HARNESS
HARNESS 4, Serial Range: -DDDDV210NANTL2000
1шт.
7
ND148371
HARNESS
HARNESS 4, Start Serial: DDDDV210NANTL2001
1шт.
8
ND142663
HARNESS
HARNESS 5, Serial Range: -DDDDV210NANTL2000
1шт.
8
ND148370
HARNESS
HARNESS 5, Serial Range: DDDDV210NANTL2001-DDDDV210NDNTL2180
1шт.
8
47718797
WIRE HARNESS
HARNESS 5, Start Serial: DDDDV210NDNTL2181
1шт.
9
ND142667
HARNESS
HARNESS
1шт.
13
ND146380
BRACKET
BRACKET
1шт.
14
ND106385
HOLDER
Diode
1шт.
15
ND121069
SPACER
SPACER
4шт.
16
ND140998
BRACKET
BRACKET
1шт.
19
ND121936
DRY BATTERY
When Using Battery BCMD4W Must Also Order Brackets 47437098, 47437097 Also Washer and Nut ND027301, ND029249
1шт.
20
ND111732
TERMINAL CONNECTOR
Positive
1шт.
21
ND111733
TERMINAL CONNECTOR
Negative
1шт.
22
ND111783
COVER
, Serial Range: -NFNTL2186
1шт.
22
47842439
COVER
, Start Serial: NFNTL2187
1шт.
26
ND065125
HEADLAMP
HEADLIGHT
4шт.
27
ND144415
LIGHT
LIGHT ASSY
2шт.
28
ND144416
LIGHT
LIGHT ASSY
2шт.
29
ND066876
BULB
BULB, 12V 60/55W
4шт.
30
ND066889
BULB,12V, 10W
BULB, 12V 21W
4шт.
31
ND066867
BULB
BULB, 12V 20-5W
2шт.
32
ND066868
BULB
BULB, 12V 5W
2шт.
33
ND065371
TERMINAL BOX
4шт.
35
ND065126
HORN
1шт.
36
ND118844
ATTENUATOR
ATTENUATOR
1шт.
37
ND123540
SENDER UNIT
SENDER UNIT
2шт.
38
ND118526
BATTERY CUT-OUT
SWITCH, BATTERY CUTOUT
1шт.
39
ND064513
IGNITION SWITCH
For Key See 113
1шт.
40
ND064514
COVER
1шт.
41
ND138580
FUSE BOX
1шт.
42
ND065926
FUSE,30A
30A
1шт.
43
ND120061
KNOB
KNOB, EMERGENCY STOP, Serial Range: -NFNTL2186
1шт.
43
ND121085
KNOB
, Start Serial: NFNTL2187
1шт.
44
ND120063
FLANGE
, Serial Range: -NFNTL2186
1шт.
44
ND121091
FLANGE
, Start Serial: NFNTL2187
1шт.
45
ND124174
CONTACT PLATE
1шт.
47
ND064551
ROTARY SWITCH
, Serial Range: -NENTL2184
2шт.
47
47795092
ROTARY SWITCH
, Start Serial: NENTL2185
2шт.
48
ND069382
KNOB
, Serial Range: -NENTL2184
2шт.
48
47795100
KNOB
, Start Serial: NENTL2185
2шт.
49
ND109083
NUT
2шт.
51
ND066634
DIODE
4шт.
53
ND065315
SWITCH
2шт.
54
ND065354
LENS
2шт.
55
ND065309
BEZEL
2шт.
56
ND140645
DECAL
1шт.
57
ND081887
DECAL
PARKING BRAKE
2шт.
58
ND138442
DECAL
DECAL, DIRECTION
2шт.
59
ND127059
DECAL
DECAL, SPRINKLING
1шт.
60
ND127060
DECAL
DECAL, RAMPING
1шт.
61
ND127063
DECAL
DECAL, INTERVAL SPRINKLING
1шт.
62
ND127064
DECAL
DECAL, SPEED SELECTOR
1шт.
63
ND081766
DECAL
SYMBOL
1шт.
65
ND065304
SWITCH
DECAL
1шт.
67
ND129300
CLIP
FUSE
2шт.
68
ND129301
FUSE,125A
125A
2шт.
70
ND145327
CONTACTOR
CONTACTOR
3шт.
71
ND129302
RELAY
2шт.
73
ND021285
BOLT
4шт.
74
ND021287
BOLT,M8 x 16
10шт.
75
ND021293
BOLT
1шт.
76
ND021304
BOLT
2шт.
77
ND021288
BOLT
6шт.
78
ND024103
BOLT
4шт.
79
ND024117
BOLT
8шт.
80
ND024122
BOLT
2шт.
81
ND024112
BOLT
2шт.
82
ND124562
BOLT
BOLT
4шт.
85
ND107946
NUT
4шт.
86
ND107947
NUT
2шт.
87
ND027300
NUT
6шт.
88
ND107948
LOCK NUT
8шт.
89
ND021849
NUT
2шт.
92
ND029245
WASHER
4шт.
93
ND029246
WASHER
2шт.
94
ND029247
WASHER
6шт.
95
ND029248
WASHER
16шт.
96
ND029249
WASHER
1шт.
97
ND029250
WASHER
4шт.
100
ND029308
WASHER
SPRING
10шт.
103
ND118926
WASHER
SPRING
2шт.
104
ND035940
SPRING WASHER
SPRING
1шт.
105
ND035941
WASHER
4шт.
108
ND078447
CABLE TIE
CABLE STRAP STRAP
35шт.
109
ND078445
SECURING STRAP
STRAP
40шт.
110
ND078446
SECURING STRAP
20шт.
112
ND066061
TAPE
INSULATING
2шт.
113
ND101395
KEY
1шт.
Выбрано товаров: 95
