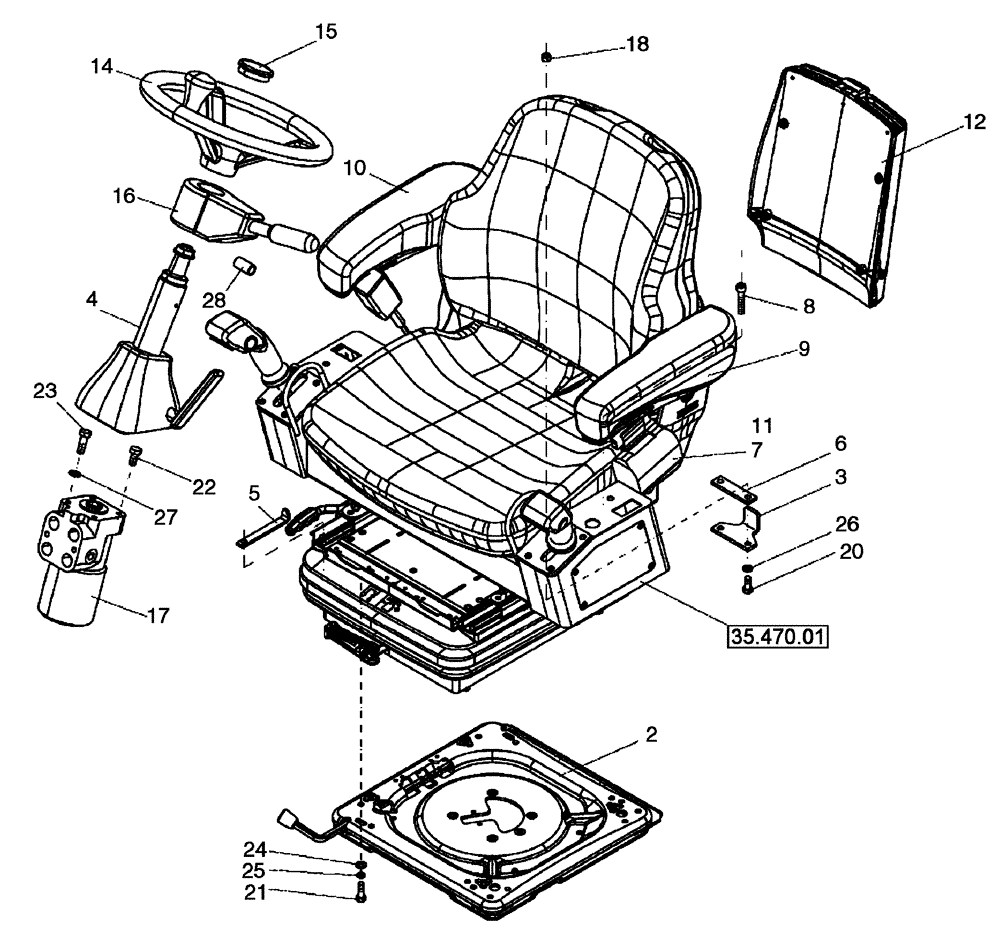

Запчасти Case DV210 (41.204.01) - STEERING CONTROLS AND SEAT (GROUP 185-ND126037) (41) - STEERING

2

ND126040

PIVOT

PIVOT, SEAT CONTROLS

1шт.

3

ND126038

BRACKET

BRACKET

1шт.

4

ND126049

STEERING COLUMN

STEERING COLUMN

1шт.

5

ND129482

STOP

STOP

1шт.

6

ND132683

MOUNTING PLATE

PLATE, MOUNTING

1шт.

7

ND121793

SEAT

Assy; Without Cushions

1шт.

8

ND127695

BOLT

BOLT

4шт.

9

ND124608

ARMREST

ARMREST LH

1шт.

10

ND124609

ARMREST

ARMREST RH

1шт.

11

ND124384

LIMIT SWITCH

OPERATOR PRESENCE

1шт.

12

ND121796

CASE

CASE

1шт.

14

ND124585

STEERING WHEEL

STEERING WHEEL

1шт.

15

ND124606

BUTTON PLUG

PLUG, BUTTON

1шт.

16

ND124584

CONTROLLER

CONTROLLER

1шт.

17

ND124707

STEERING VALVE

STEERING VALVE

1шт.

18

ND021848

NUT

2шт.

20

ND024391

SCREW,M8 x 25mm

SCREW

2шт.

21

ND021295

BOLT

4шт.

22

ND021301

BOLT

1шт.

23

ND021303

BOLT

3шт.

24

ND029249

WASHER

4шт.

25

ND029310

WASHER

SPRING

4шт.

26

ND035940

SPRING WASHER

2шт.

27

ND035941

WASHER

3шт.

28

ND145869

HOSE

1шт.
