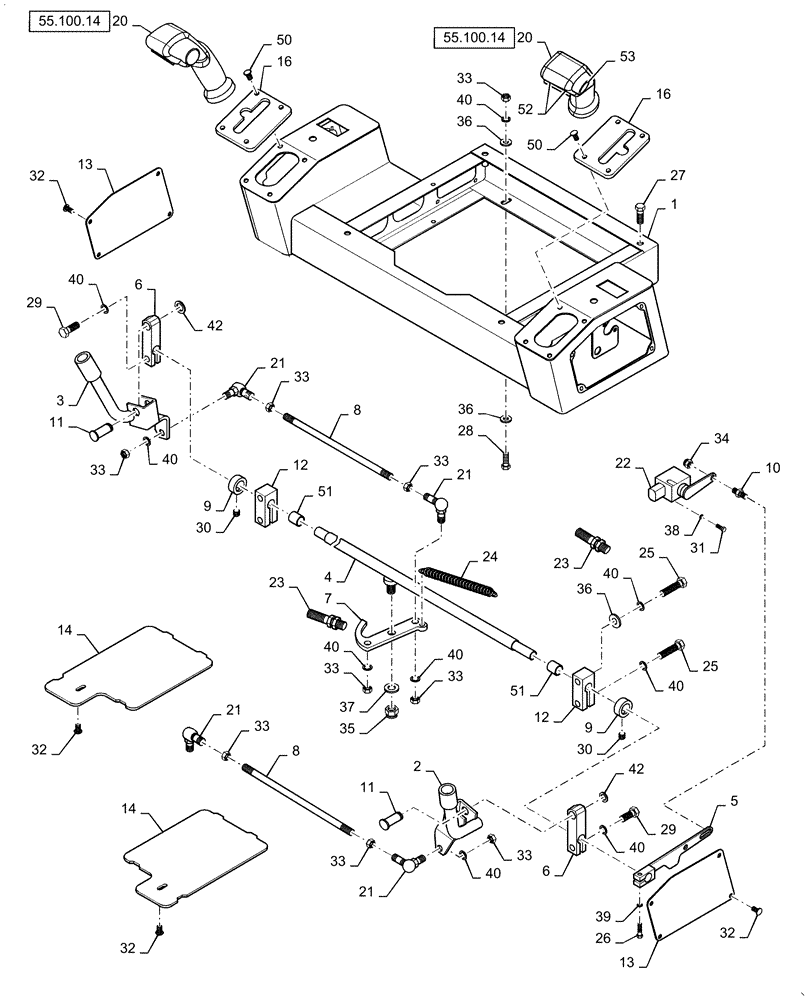

Запчасти Case DV210 (35.470.01) - TRAVEL CONTROL (GROUP 185-1-ND126019) (41) - STEERING

1

ND126020

FRAME

FRAME

1шт.

2

ND126021

CONTROL LEVER

LEVER, CONTROL

1шт.

3

ND126022

CONTROL LEVER

LEVER, CONTROL

1шт.

4

ND126023

CONTROL SHAFT

SHAFT, CONTROL

1шт.

5

ND126028

TRIP ARM

ARM, TRIP

1шт.

6

ND126024

LEVER

LEVER

2шт.

7

ND126025

LEVER

LEVER

1шт.

8

ND126026

THREADED ROD

ROD, THREADED

2шт.

9

ND126027

COLLAR

COLLAR

2шт.

10

ND126029

STUD

STUD

1шт.

11

ND126030

HEADED PIN

PIN, HEADED

2шт.

12

ND126031

SUPPORT

SUPPORT

2шт.

13

ND126032

ACCESS COVER

COVER, ACCESS

2шт.

14

ND126033

ACCESS COVER

COVER, ACCESS

2шт.

16

ND126039

RETAINER

RETAINER, PLATE

2шт.

20

ND124420

CONTROL

CONTOL, HANDLE

2шт.

21

ND124421

BALL JOINT

BALL JOINT

4шт.

22

ND124041

SWITCH

SWITCH, POSITIONING

1шт.

23

ND123540

SENDER UNIT

SENDER UNIT

2шт.

24

ND037228

SPRING

PULL

1шт.

25

ND021185

BOLT,Hex, M8 x 40mm

4шт.

26

ND021290

BOLT

1шт.

27

ND110079

BOLT

4шт.

28

ND127695

BOLT

BOLT

4шт.

29

ND021295

BOLT

2шт.

30

ND024758

SET SCREW

SET SCREW

2шт.

31

ND024122

BOLT

2шт.

32

ND124536

BOLT

BOLT

14шт.

33

ND021848

NUT

8шт.

34

ND027300

NUT

1шт.

35

ND027302

NUT

1шт.

36

ND029249

WASHER

10шт.

37

ND029250

WASHER

1шт.

38

ND029308

WASHER

SPRING

2шт.

39

ND029309

SPRING WASHER

SPRING

1шт.

40

ND029310

WASHER

SPRING

10шт.

42

ND069817

SNAP RING

RING, SNAP

2шт.

50

ND127694

BOLT

BOLT

8шт.

51

ND035955

BUSHING

BUSHING

2шт.

52

47914378

SWITCH

2шт.

53

47914383

SWITCH

1шт.
