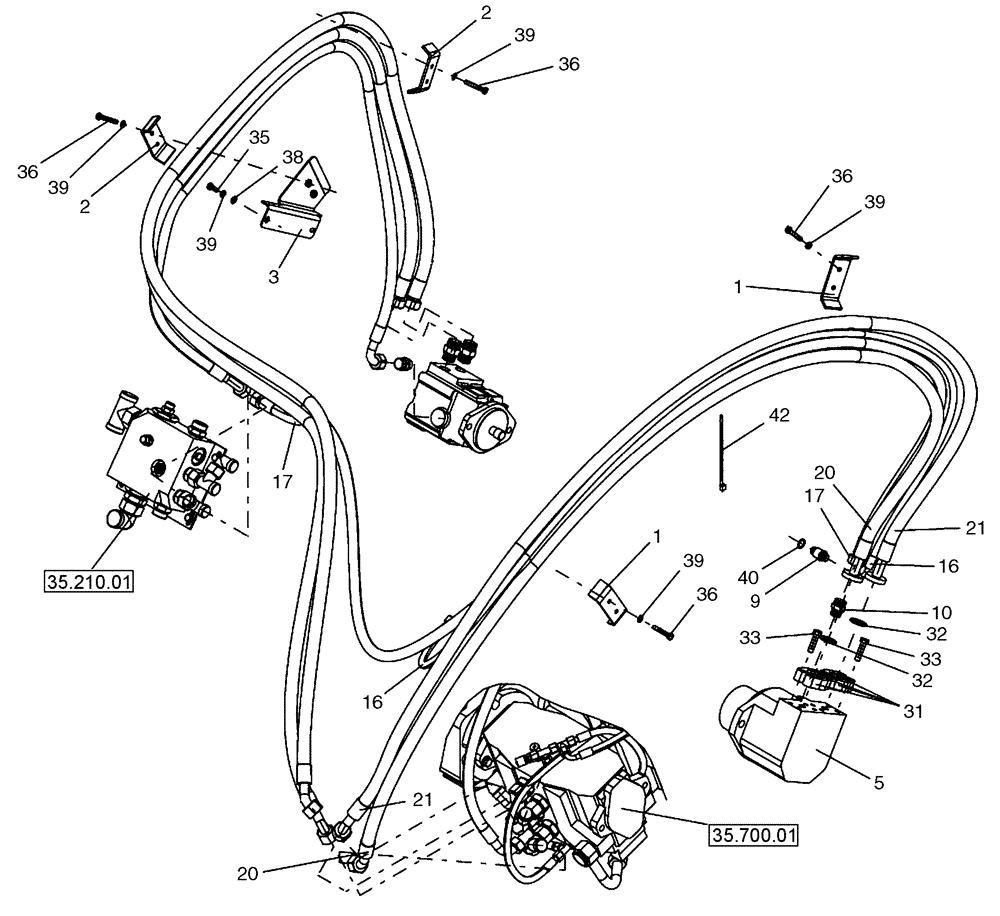

Запчасти Case DV210 (35.310.02) - REAR HYDRAULIC DRUM LINES (GROUP 310-ND142624) (35) - HYDRAULIC SYSTEMS

1

ND126005

CLAMP

CLAMP

2шт.

2

ND126006

CLAMP

CLAMP

2шт.

3

ND142654

BRACKET

BRACKET

1шт.

5

ND125533

HYDRAULIC MOTOR

MOTOR, HYDRAULIC

1шт.

6

ND139961

HYDRAULIC MOTOR

1шт.

9

ND127314

HYD CONNECTOR

CONNECTOR HYDRAULIC

1шт.

10

ND062128

HYD CONNECTOR

2шт.

16

ND102891

HOSE

1шт.

17

ND142185

HOSE

1шт.

18

ND142186

HOSE

1шт.

20

ND125257

HOSE

, Serial Range: -DDDDV210NANTL2000

1шт.

20

ND147594

HOSE

, Start Serial: DDDDV210NANTL2001

1шт.

21

ND125256

HOSE

, Serial Range: -DDDDV210NANTL2000

1шт.

21

ND137342

HYDRAULIC HOSE

, Start Serial: DDDDV210NANTL2001

1шт.

22

ND142192

HOSE

1шт.

23

ND142191

HOSE

1шт.

31

ND062009

FLANGE

HALF CLAMP

4шт.

32

ND079934

O-RING

2шт.

33

ND034063

BOLT

8шт.

35

ND021294

BOLT

2шт.

36

ND021187

BOLT

8шт.

38

ND029249

WASHER

2шт.

39

ND035940

SPRING WASHER

10шт.

40

ND073395

O-RING,0.362" ID x 0.568" OD x 0.103"

O-RING

1шт.

42

ND078446

SECURING STRAP

6шт.
