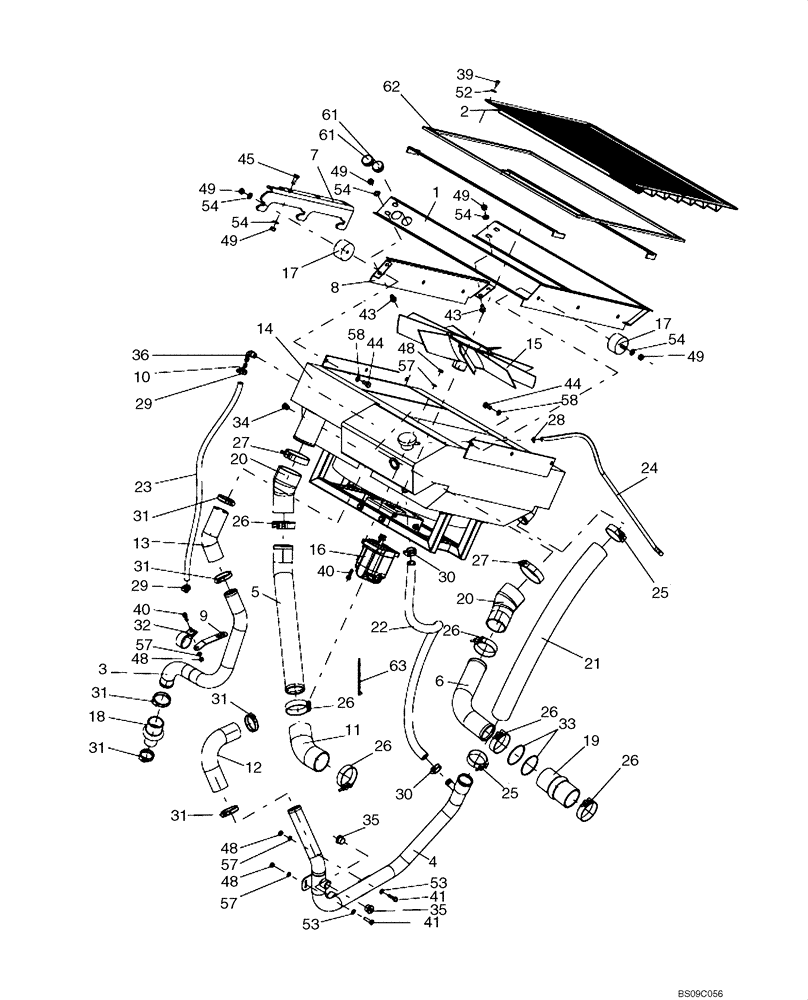

Запчасти Case DV210 (10.414.01) - ENGINE COOLING (GROUP 125-ND142613) (10) - ENGINE

1

ND142614

SHROUD

SHROUD

1шт.

2

ND141713

GRATE

GRATE

1шт.

3

ND141729

TUBE,99 mm L

TUBE, RADIATOR

1шт.

4

ND141730

TUBE,99 mm L

TUBE, RADIATOR

1шт.

5

ND141724

TUBE

TUBE, UPPER RADIATOR

1шт.

6

ND141723

RADIATOR HOSE,99 mm L

TUBE, LOWER RADIATOR

1шт.

7

ND142616

BRACKET

BRACKET

1шт.

8

ND142615

BRACKET

BRACKET

1шт.

9

ND142638

SUPPORT

SUPPORT, Serial Range: -NANTL2000

1шт.

9

ND148385

SUPPORT

, Start Serial: NANTL2001

1шт.

10

ND141715

NOZZLE

NOZZLE

1шт.

11

ND138874

ELBOW

1шт.

12

ND138876

ELBOW

1шт.

13

ND142650

ELBOW

ELBOW

1шт.

14

ND141034

RADIATOR

RADIATOR

1шт.

15

ND139459

FAN

FAN

1шт.

16

ND141694

HYDRAULIC MOTOR

MOTOR, HYDRAULIC FAN DRIVE

1шт.

17

ND079081

RUBBER MOUNTING

MOUNTING, RUBBER

6шт.

18

ND135692

REDUCER

1шт.

19

ND135336

COUPLING

1шт.

20

ND131071

ELBOW UNION

Union Elbow

2шт.

21

ND142673

RADIATOR HOSE

HOSE, RADIATOR

1шт.

22

ND142674

HOSE

1шт.

23

ND105468

HOSE

1шт.

24

ND132749

HOSE

1шт.

25

ND139918

HOSE CLAMP

CLAMP, HOSE

2шт.

26

ND135110

CLIP

6шт.

27

ND133086

HOSE CLAMP

2шт.

28

ND069521

CLAMP

1шт.

29

ND107318

CLAMP

HOSE

2шт.

30

ND107319

CLAMP

HOSE

2шт.

31

ND105775

HOSE CLAMP

HOSE

6шт.

32

ND135678

CLAMP

1шт.

33

ND135385

RING

2шт.

34

ND062421

PLUG

PLUG

1шт.

35

ND062420

PLUG

2шт.

36

ND140141

ELBOW

ELBOW

1шт.

39

ND021287

BOLT,M8 x 16

10шт.

40

ND024245

BOLT

5шт.

41

ND021183

BOLT

2шт.

43

ND092562

BOLT

4шт.

44

ND021301

BOLT

6шт.

45

ND021302

BOLT

3шт.

48

ND021848

NUT

7шт.

49

ND021849

NUT

13шт.

52

ND029290

WASHER

10шт.

53

ND029249

WASHER

2шт.

54

ND029250

WASHER

13шт.

57

ND035940

SPRING WASHER

SPRING

7шт.

58

ND035941

WASHER

6шт.

61

ND118631

PLUG

2шт.

62

ND142675

SEALING STRIP

STRIP, SEALING

1шт.

63

ND078447

CABLE TIE

CABLE STRAP TIE STRAP

3шт.
