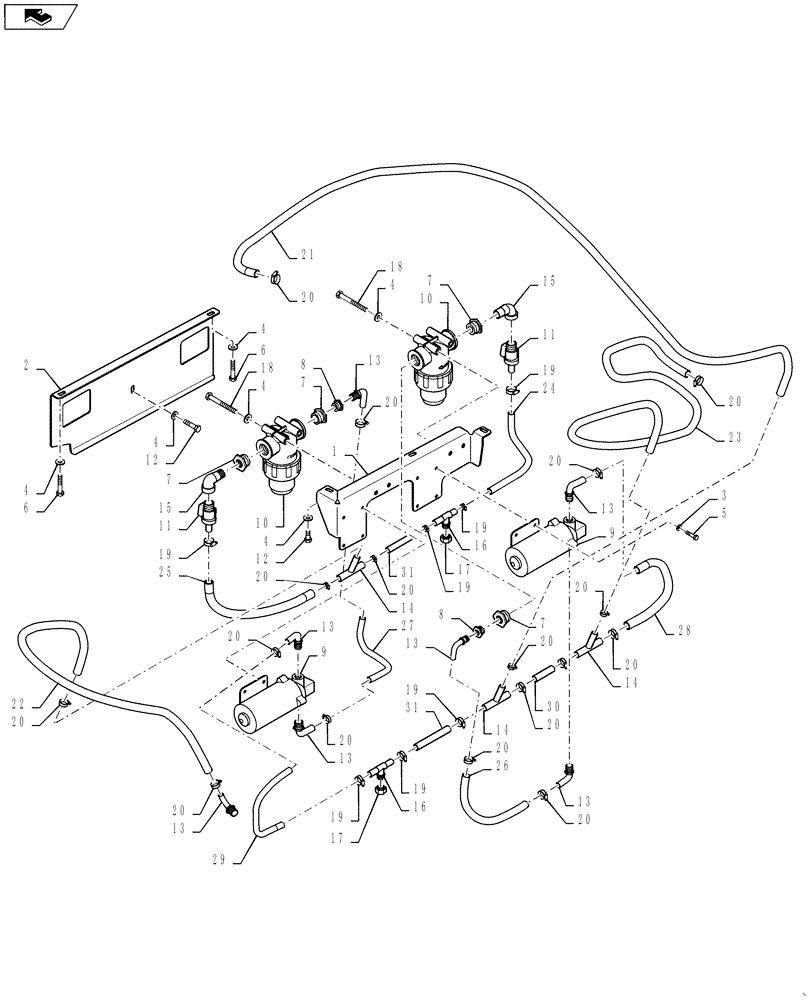

Запчасти Case DV207 (75.120.02) - WATER SPRINKLING SYSTEM (75) - SOIL PREPARATION

1

ND145721

BRACKET

1шт.

2

ND145722

COVER PLATE

1шт.

3

ND029247

WASHER

8шт.

4

ND118422

WASHER

10шт.

5

ND024127

BOLT

8шт.

6

ND021292

BOLT

2шт.

7

ND142300

REDUCER

4шт.

8

ND063202

RESTRICTOR

2шт.

9

84527045

WATER PUMP

2шт.

10

ND142196

WATER FILTER

Water

2шт.

10

47854232

FILTER

1шт.

10

47854233

FILTER HEAD

1шт.

10

47854234

SEALING RING

1шт.

10

47854236

COVER

1шт.

10

48040779

CUP

1шт.

11

ND063243

COCK

Check Valve

2шт.

12

ND092867

BOLT,Hex, M8 x 14mm

4шт.

13

ND069512

HYD CONNECTOR

7шт.

14

ND069514

HYD TUBE

3шт.

15

ND145137

90 ELBOW

2шт.

16

ND143291

TEE

2шт.

17

ND143292

CAP

2шт.

18

ND110934

BOLT

4шт.

19

ND107318

CLAMP

6шт.

20

ND069478

CLIP

18шт.

21

ND145723

PLASTIC-RUBBER TUBE

1шт.

22

ND145725

PLASTIC-RUBBER TUBE

1шт.

23

ND145725

PLASTIC-RUBBER TUBE

1шт.

24

ND145726

PLASTIC-RUBBER TUBE

1шт.

25

ND145727

PLASTIC-RUBBER TUBE

1шт.

26

ND145728

PLASTIC-RUBBER TUBE

1шт.

27

ND145729

PLASTIC-RUBBER TUBE

1шт.

28

ND145730

PLASTIC-RUBBER TUBE

1шт.

29

ND145731

PLASTIC-RUBBER TUBE

1шт.

30

ND145732

PLASTIC-RUBBER TUBE

1шт.

31

ND145733

PLASTIC-RUBBER TUBE

2шт.
