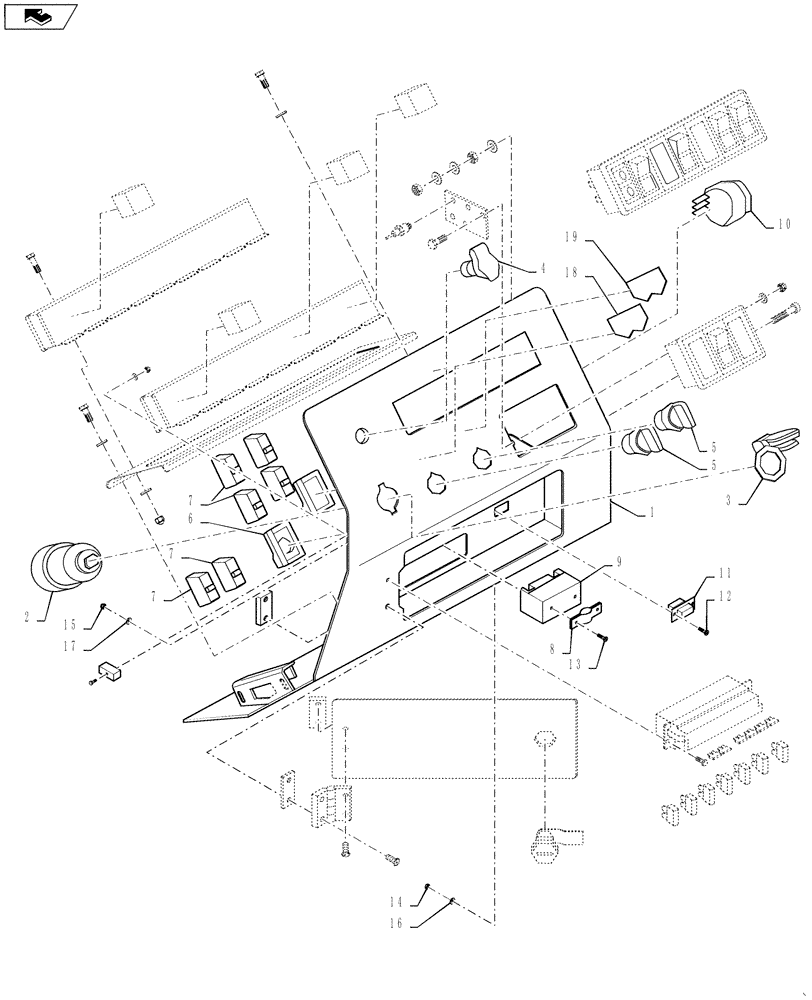

Запчасти Case DV207 (55.418.02[02]) - DASHBOARD (55) - ELECTRICAL SYSTEMS

1

ND140675

PANEL

1шт.

2

ND064519

SWITCH

Ignition

1шт.

2

ND092610

KEY

Ignition

1шт.

3

ND064514

COVER

Ignition Switch

1шт.

4

ND064523

LAMP SOCKET

1шт.

5

ND103421

KNOB

Vibration Front/Both/Rear Selector Switch; Vibration Amplitude Selector Switch

2шт.

6

ND120063

FLANGE

2шт.

7

ND124175

CONTACT PLATE

Vibration Front/Both/Rear Selector Switch; Vibration Amplitude Selector Switch

6шт.

8

ND129298

FUSE

30A; Cabin

1шт.

9

ND129300

CLIP

Fuse

1шт.

10

ND093278

BUZZER

Level Signal

1шт.

11

ND117222

SOCKET/RECEPTACLE

Diagnostics Socket

1шт.

12

ND024097

BOLT

2шт.

13

ND024102

BOLT

2шт.

14

ND026411

NUT

2шт.

15

ND107946

NUT

2шт.

16

ND029324

WASHER

2шт.

17

ND029245

WASHER

2шт.

18

ND127055

DECAL

1шт.

19

ND134694

DECAL

1шт.
