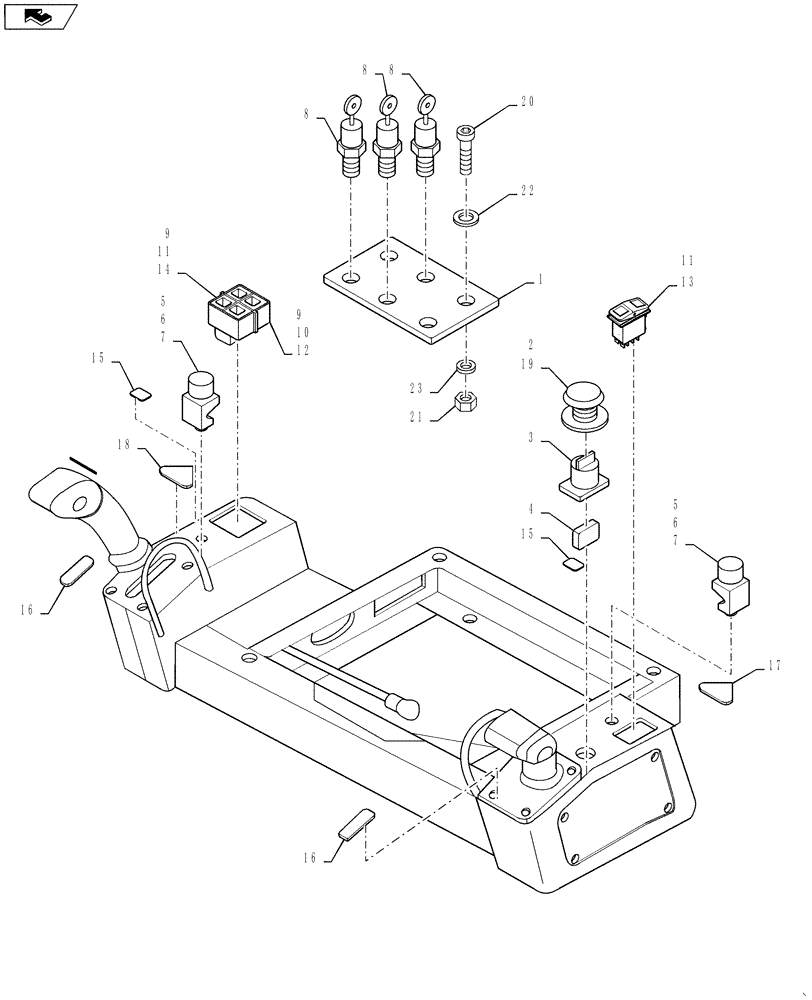

Запчасти Case DV207 (55.408.02) - INSTRUMENTS, SWITCHES AND DIODES (55) - ELECTRICAL SYSTEMS

1

ND106385

HOLDER

Diode

1шт.

2

ND120061

KNOB

Emergency Brake; Stop, Serial Range: -NFNTH2107

1шт.

2

ND121085

KNOB

Emergency Brake; Stop, Start Serial: NFNTH2108

1шт.

3

ND120063

FLANGE

Connecting, Serial Range: -NFNTH2107

1шт.

3

ND121091

FLANGE

, Start Serial: NFNTH2108

1шт.

4

ND124174

CONTACT PLATE

1шт.

5

ND064551

ROTARY SWITCH

Speed; Sprinkling Interval, Serial Range: -NENTL2184

2шт.

5

47795092

ROTARY SWITCH

Speed; Sprinkling Interval, Start Serial: NENTL2185

2шт.

6

ND069382

KNOB

, Serial Range: -NENTL2184

2шт.

6

47795100

KNOB

, Start Serial: NENTL2185

2шт.

7

ND109083

NUT

2шт.

8

ND066634

DIODE

4шт.

9

ND065309

BEZEL

2шт.

10

ND065304

SWITCH

Crab Mode Reset

1шт.

11

ND065315

SWITCH

Soft Starting and Stopping; Sprinkling

2шт.

12

ND147063

DECAL

Crab Mode Reset Switch

1шт.

13

ND147061

DECAL

Sprinkling Switch

1шт.

14

ND147062

DECAL

Soft Starting and Stopping Switch, Serial Range: -NDNTH2080

1шт.

14

47718790

DECAL

Soft Starting and Stopping Switch, Start Serial: NDNTH2081

1шт.

15

ND081887

DECAL

Parking Brake

2шт.

16

ND138442

DECAL

Direction

2шт.

17

ND127063

DECAL

Sprinkling Interval

1шт.

18

ND127064

DECAL

Speed Selector

1шт.

19

ND081766

DECAL

Emergency Brake Switch

1шт.

20

ND024122

BOLT

2шт.

21

ND021846

NUT

2шт.

22

ND029247

WASHER

, Serial Range: -NFNTH2116

2шт.

22

47713273

WASHER

, Start Serial: NFNTH2117

4шт.

23

ND029308

WASHER

2шт.
