(55.100.02) - WIRE HARNESS & CONTROL UNIT - BSN NFNTH2117

Запчасти Case DV207 (55.100.02) - WIRE HARNESS & CONTROL UNIT - BSN NFNTH2117 (55) - ELECTRICAL SYSTEMS

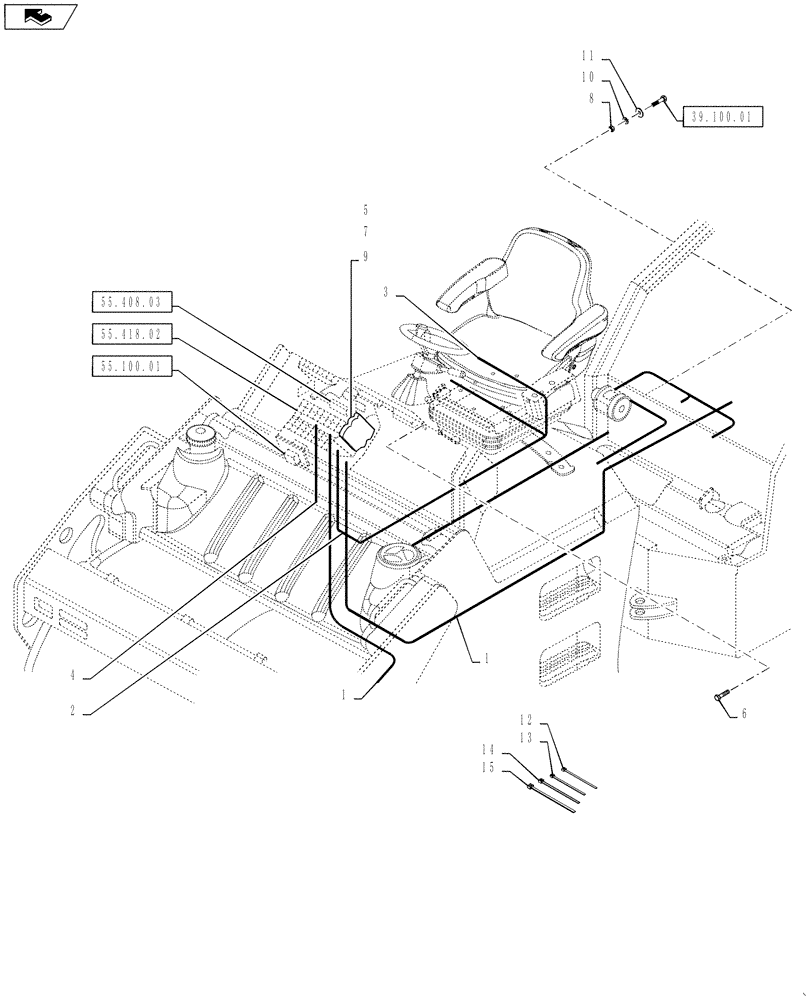

Схема запчастей Case DV207 - (55.100.02) - WIRE HARNESS & CONTROL UNIT - BSN NFNTH2117 (55) - ELECTRICAL SYSTEMS
7
55.418.02
39.100.01
15
6
11
2
12
5
4
9
10
1
14
1
55.100.01
13
55.408.03
home
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

ND148430

WIRE HARNESS

Engine; Rear Lights

1шт.

2

ND140710

WIRE HARNESS

Connects Seat Harness to Dashboard Harness

1шт.

3

ND140711

WIRE HARNESS

Seat

1шт.

4

ND148431

WIRE HARNESS

Dashboard

1шт.

5

ND125074

CONTROL UNIT

1шт.

6

ND127694

BOLT

11шт.

7

ND027301

NUT

2шт.

8

ND021849

NUT

Ground Terminal

2шт.

9

ND029249

WASHER

3шт.

10

ND029250

WASHER

2шт.

11

ND029311

WASHER

2шт.

12

ND078447

CABLE TIE

CABLE STRAP

30шт.

13

ND078445

SECURING STRAP

30шт.

14

ND078446

SECURING STRAP

15шт.

15

ND066061

TAPE

Insulating

2шт.
