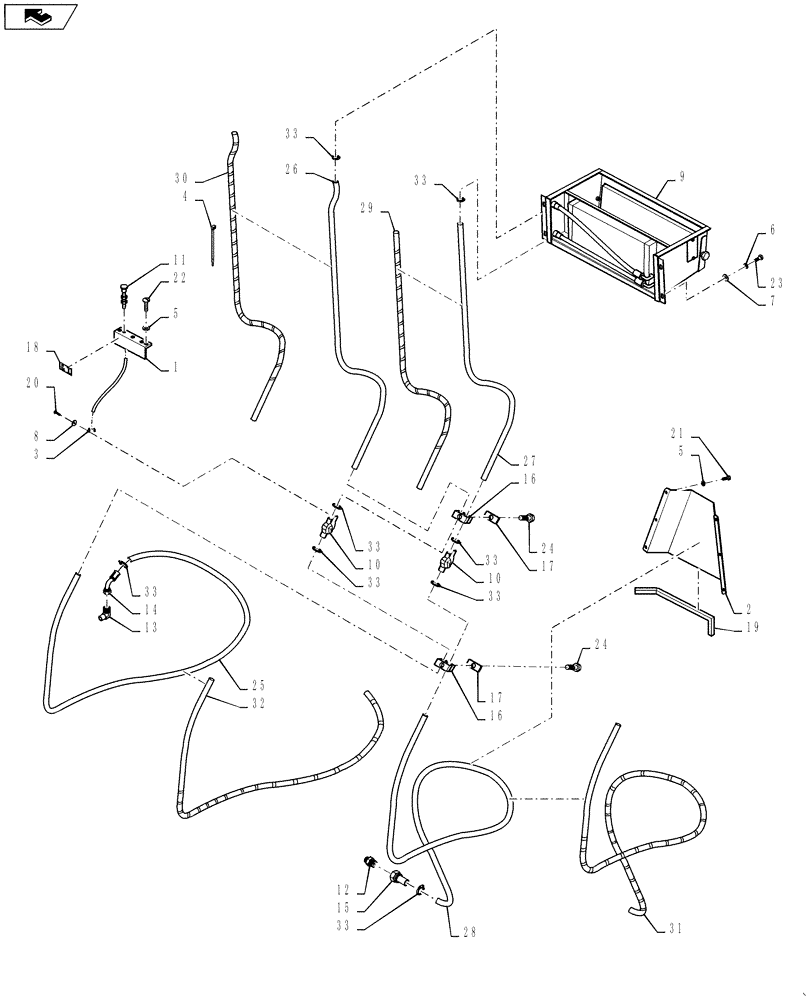

Запчасти Case DV207 (50.100.01) - HEATER (50) - CAB CLIMATE CONTROL

1

ND140823

BRACKET

1шт.

2

ND140706

SHIELD

1шт.

3

ND053448

CLAMP

1шт.

4

ND078445

SECURING STRAP

8шт.

5

ND118926

WASHER

9шт.

6

ND035940

SPRING WASHER

4шт.

7

ND029283

WASHER

4шт.

8

ND026413

NUT

1шт.

9

ND129151

HEATER

1шт.

10

ND090033

DRAINCOCK/TAP SUPPLY

Water Valve

2шт.

11

ND090785

FLEXIBLE CONTROL

1шт.

12

ND062131

FITTING

1шт.

13

ND112441

ELBOW

1шт.

14

ND062216

HOSE

1шт.

15

ND112440

HYD TUBE

1шт.

16

ND064820

SLEEVE

2шт.

17

ND064822

COVER

2шт.

18

ND081822

DECAL

1шт.

19

ND147368

PROTECTION STRIP

1шт.

20

ND023783

BOLT

1шт.

21

ND021286

BOLT

6шт.

22

ND021288

BOLT

3шт.

23

ND021295

BOLT

4шт.

24

ND111018

BOLT

2шт.

25

ND147364

PLASTIC-RUBBER TUBE

1шт.

26

ND147365

PLASTIC-RUBBER TUBE

1шт.

27

ND147366

PLASTIC-RUBBER TUBE

1шт.

28

ND147367

PLASTIC-RUBBER TUBE

1шт.

29

ND062022

PROTECTING COVER

2шт.

30

ND062022

PROTECTING COVER

2шт.

31

ND117418

PROTECTOR

1шт.

32

ND117418

PROTECTOR

1шт.

33

ND069479

CLAMP

8шт.
