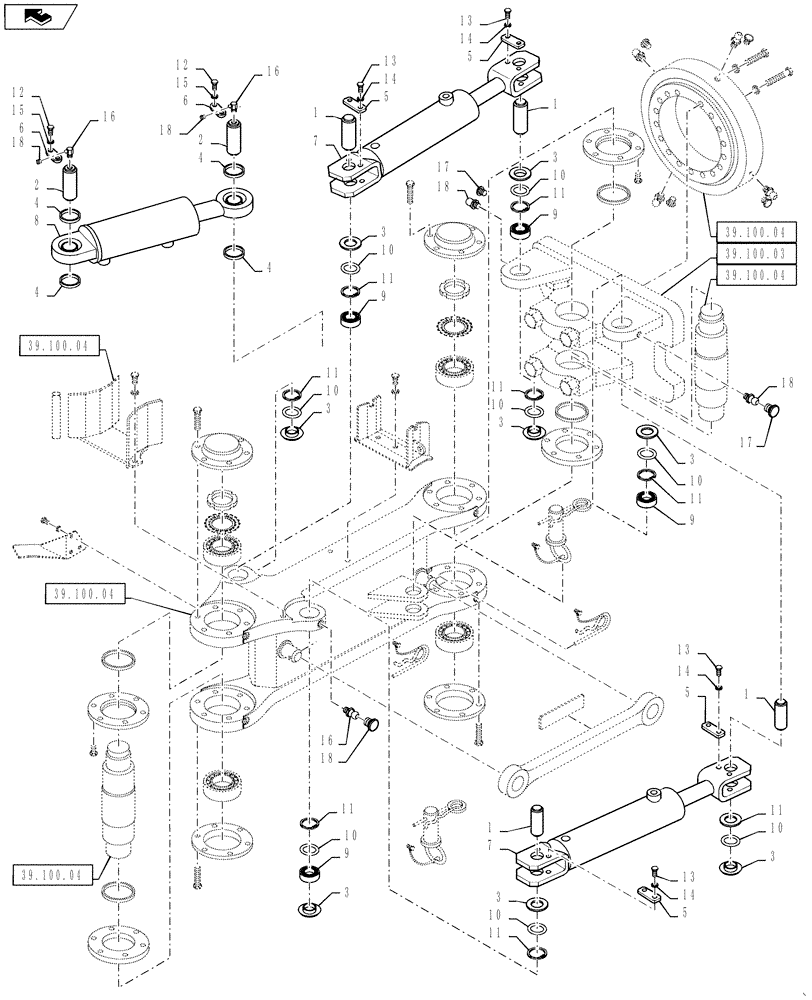

Запчасти Case DV207 (41.216.01) - STEERING AND CRAB CYLINDER INSTALLATION (41) - STEERING

1

ND131888

PIN

4шт.

2

ND125928

PIN

2шт.

3

ND104390

RING

8шт.

4

ND125924

RING

4шт.

5

ND104392

BLOCK

4шт.

6

ND125927

LOCKING BAR

2шт.

7

ND134659

HYDRAULIC CYLINDER

For Seal Kit See 19

2шт.

8

ND148177

HYDRAULIC CYLINDER

For Seal Kit See 20

1шт.

9

ND128437

BEARING

4шт.

10

ND110905

O-RING

8шт.

11

ND069881

RING, SNAP

RING SNAP

8шт.

12

ND021294

BOLT

4шт.

13

ND021301

BOLT

8шт.

14

ND035941

WASHER

8шт.

15

ND035940

SPRING WASHER

4шт.

16

ND070130

LUBE NIPPLE

4шт.

17

ND070133

LUBE NIPPLE,M10 x 1

2шт.

18

ND064758

PLUG

4шт.

19

47850770

SEAL KIT

1шт.

20

47850777

SEAL KIT

1шт.
