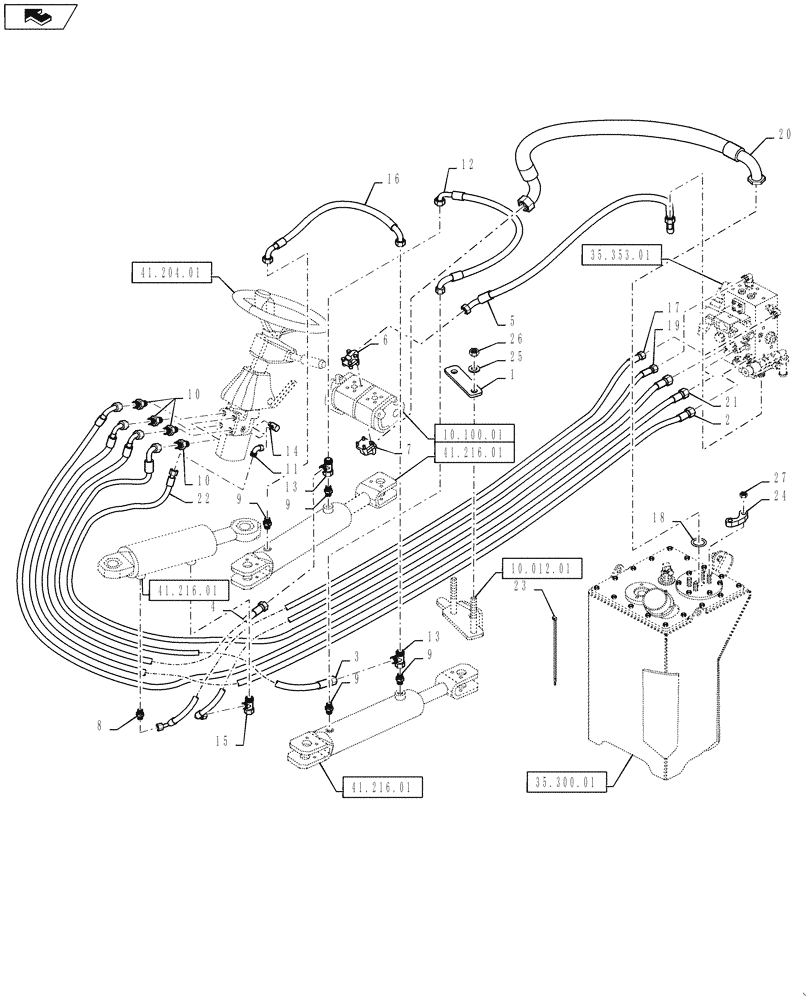

Запчасти Case DV207 (41.200.01) - STEERING CYLINDER HYD. LINE (41) - STEERING

1

ND138779

BRACKET

1шт.

2

ND145815

HYDRAULIC HOSE

1шт.

3

ND145814

HYDRAULIC HOSE

1шт.

4

ND111148

HYDRAULIC HOSE

1шт.

5

ND145813

HYDRAULIC HOSE

1шт.

6

ND062506

FLANGE

1шт.

7

ND123014

FLANGE

1шт.

8

ND062154

HYD CONNECTOR

2шт.

9

ND062192

HYD CONNECTOR

4шт.

10

ND062180

HYD CONNECTOR

4шт.

11

ND062425

90 ELBOW

Elbow

1шт.

12

ND139439

HYDRAULIC HOSE

1шт.

13

ND062394

HYD CONNECTOR

Tee

2шт.

14

ND062470

HYD CONNECTOR

1шт.

15

ND062457

BOLT

Includes Bolt, Banjo Fitting, and Sealing Washer

1шт.

16

ND145812

HYDRAULIC HOSE

1шт.

17

ND147184

HYDRAULIC HOSE

1шт.

18

ND079935

O-RING

1шт.

19

ND061643

HYDRAULIC HOSE

1шт.

20

ND145817

HYDRAULIC HOSE

1шт.

21

ND145824

HYDRAULIC HOSE

1шт.

22

ND145835

HYDRAULIC HOSE

1шт.

23

ND078446

SECURING STRAP

12шт.

24

ND062018

CLAMP BRACKET

2шт.

25

ND029252

WASHER

2шт.

26

ND107434

NUT

2шт.

27

ND021850

NUT

4шт.
