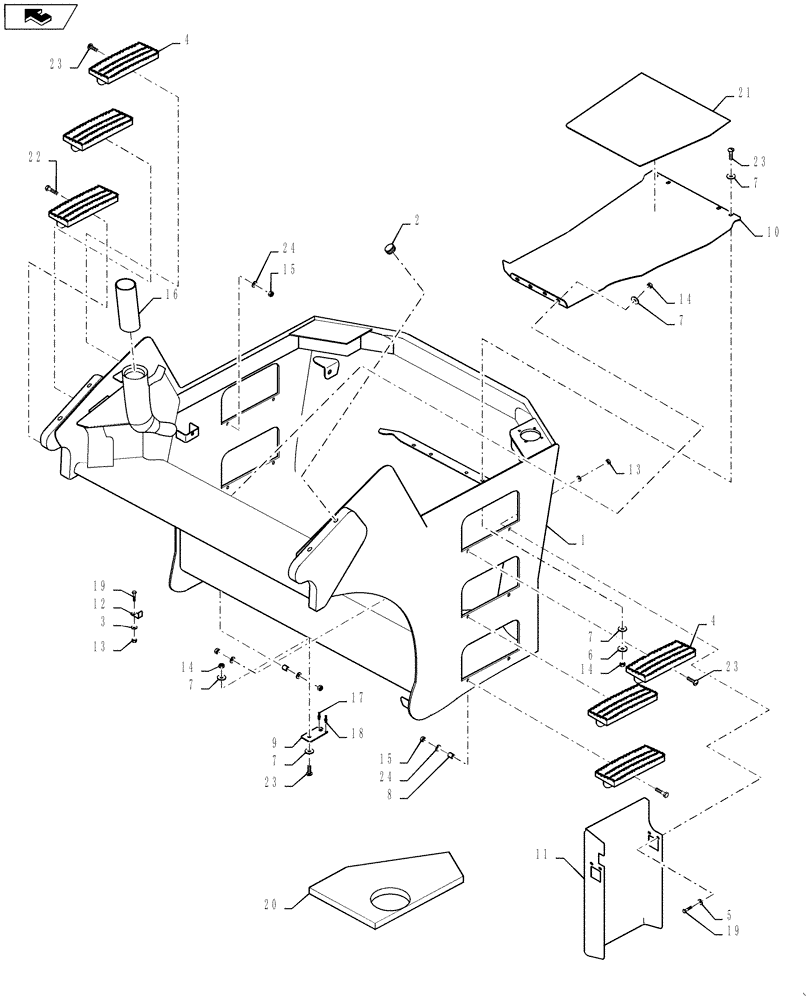

Запчасти Case DV207 (39.100.01) - FRAME - FRONT (39) - FRAMES AND BALLASTING

1

ND146842

FRAME

Front

1шт.

2

ND147117

PLUG

4шт.

3

ND035940

SPRING WASHER

1шт.

4

84515231

STEP

6шт.

5

ND118422

WASHER

16шт.

6

ND035941

WASHER

4шт.

7

ND029266

WASHER

16шт.

8

ND145925

SPACER

4шт.

9

ND138791

BRACKET

1шт.

10

ND138784

COVER PLATE

1шт.

11

ND145755

SUPPORT

1шт.

12

84514945

ANGLE

1шт.

13

ND021848

NUT

8шт.

14

ND021849

NUT

10шт.

15

ND027302

NUT

12шт.

16

ND090802

SCREEN

Fuel

1шт.

17

ND123540

SENDER UNIT

Crab Mode Cancel Sensor

1шт.

18

ND137249

SENDER UNIT

Crab Mode Cancel Sensor

1шт.

19

ND110079

BOLT

9шт.

20

ND141581

PAD

Foam Rubber

1шт.

21

ND141580

RUBBER PAD

1шт.

22

ND021305

BOLT

4шт.

23

ND021303

BOLT

14шт.

24

ND035826

WASHER

12шт.
