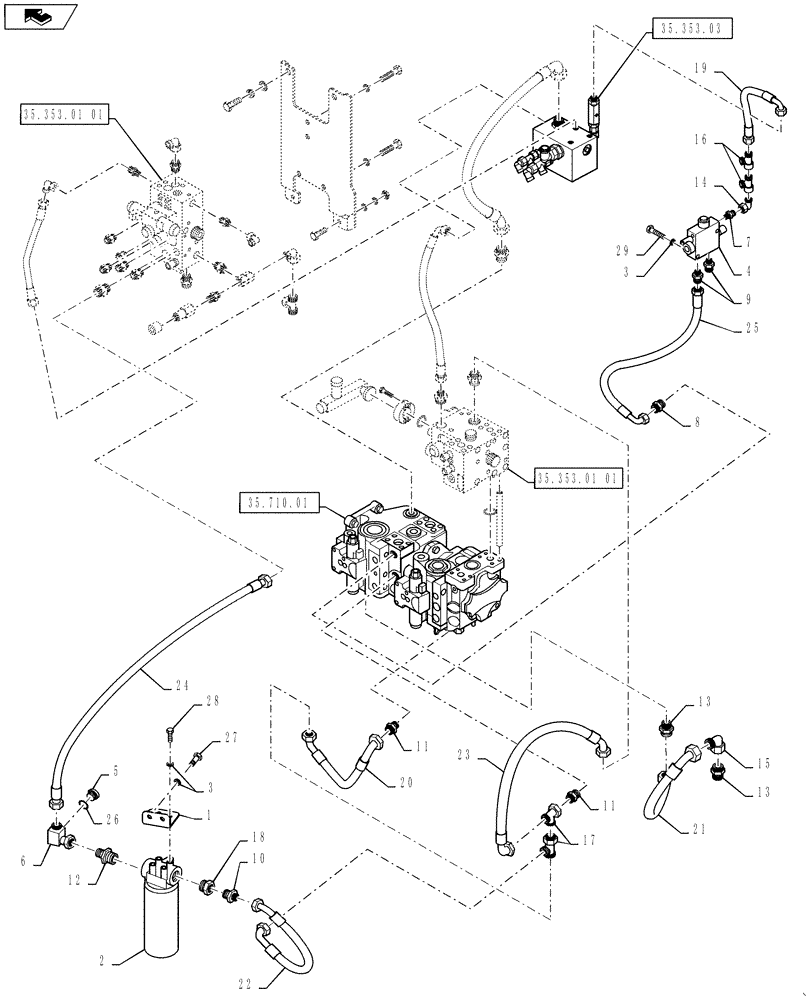

Запчасти Case DV207 (35.353.01[02]) - TRAVEL HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

ND138774

BRACKET

1шт.

2

ND123242

FILTER ASSY

1шт.

2

ND126829

HYDRAULIC OIL FILTER

Element

1шт.

3

ND035941

WASHER

8шт.

4

ND111159

VALVE

Travel Circuit Flushing, Serial Range: -DDDDV207NDNTH2084

1шт.

4

47623764

VALVE

, Start Serial: DDDDV207NDNTH2085

1шт.

5

ND139917

SWITCH

1шт.

6

ND139455

ELBOW

1шт.

7

ND062173

HYD CONNECTOR

1шт.

8

ND062203

HYD CONNECTOR

1шт.

9

ND103410

HYD CONNECTOR

2шт.

10

ND062172

HYD CONNECTOR

1шт.

11

ND062128

HYD CONNECTOR

2шт.

12

ND139058

HYD CONNECTOR

1шт.

13

ND062135

HYD CONNECTOR

2шт.

14

ND062366

ELBOW

1шт.

15

ND062262

ELBOW

Elbow

1шт.

16

ND062403

TEE

2шт.

17

ND062263

TEE

2шт.

18

ND123013

REDUCER

1шт.

19

ND126138

HOSE

1шт.

20

ND145820

HYDRAULIC HOSE

1шт.

21

ND145477

HYDRAULIC HOSE

1шт.

22

ND145821

HYDRAULIC HOSE

1шт.

23

ND145822

HYDRAULIC HOSE

1шт.

24

ND145823

HYDRAULIC HOSE

1шт.

25

ND145808

HYDRAULIC HOSE

1шт.

26

ND073359

O-RING

1шт.

27

ND092562

BOLT

2шт.

28

ND021301

BOLT

4шт.

29

ND021197

BOLT

2шт.
