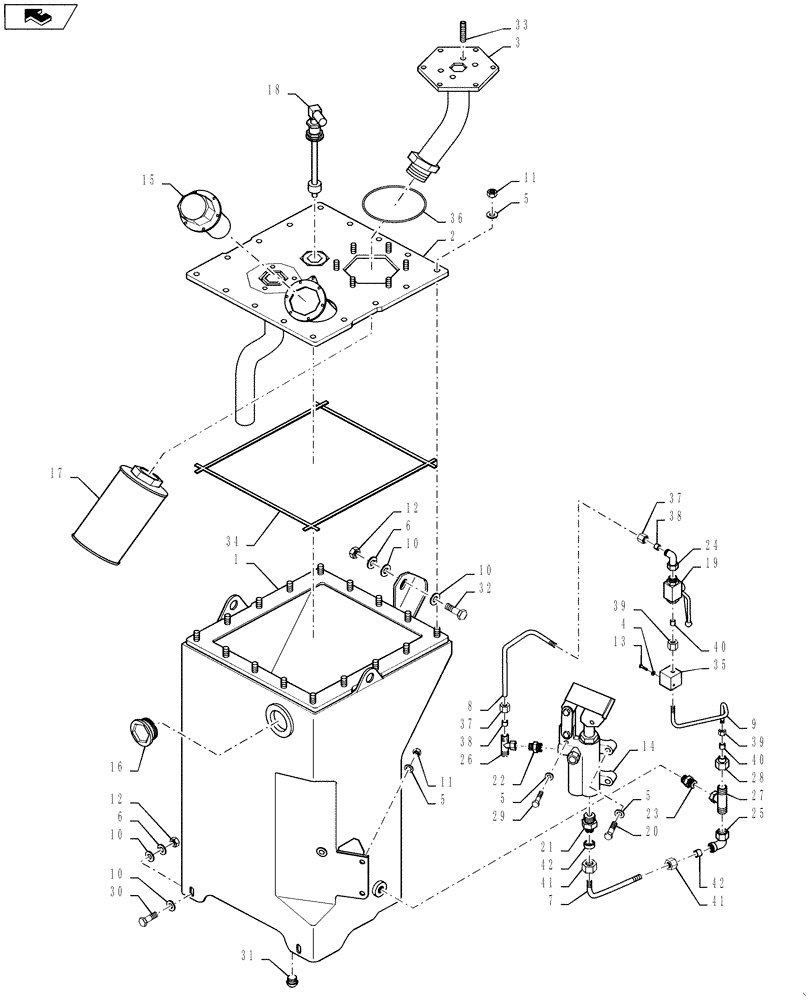

Запчасти Case DV207 (35.300.01) - HYDRAULIC OIL RESERVOIR (35) - HYDRAULIC SYSTEMS

1

ND146822

RESERVOIR, HYDRAULIC

1шт.

2

ND146823

ACCESS COVER

1шт.

3

ND146824

SUCTION PIPE

1шт.

4

ND029247

WASHER

1шт.

5

ND035940

SPRING WASHER

25шт.

6

ND035941

WASHER

3шт.

7

ND148478

HYD TUBE

Incl 41, 42

1шт.

8

ND148479

HYD TUBE

Incl 37, 38

1шт.

9

ND148480

HYD TUBE

Incl 39, 40

1шт.

10

ND029266

WASHER

6шт.

11

ND021848

NUT

22шт.

12

ND021849

NUT

3шт.

13

ND024221

BOLT

1шт.

14

ND143038

HYDRAULIC PUMP

Hand

1шт.

15

ND065471

CAP

Hydraulic Oil Filler

1шт.

16

ND070150

LEVEL GAUGE

Oil Level Sight Gauge

1шт.

17

ND067790

FILTER STRAINER

Hydraulic Oil

1шт.

18

ND136218

SENDER UNIT

Hydraulic Oil

1шт.

19

ND120031

DRAIN VALVE

Hydraulic Shut-Off Valve

1шт.

20

ND021298

BOLT,Hex, 99mm

2шт.

21

ND062133

HYD CONNECTOR

1шт.

22

ND062233

HYD CONNECTOR

1шт.

23

ND062154

HYD CONNECTOR

1шт.

24

ND062414

ELBOW

1шт.

25

ND062366

ELBOW

1шт.

26

ND062326

HYD CONNECTOR

1шт.

27

ND062404

TEE

1шт.

28

ND109192

HYD CONNECTOR

1шт.

29

ND111018

BOLT

1шт.

30

ND021302

BOLT

2шт.

31

ND062372

PLUG

1шт.

32

ND021303

BOLT

1шт.

33

ND021720

STUD

4шт.

34

ND066078

SEALING STRIP

Sealing Strip

1шт.

35

ND064843

SLEEVE

1шт.

36

ND079938

O-RING

1шт.

37

NSS

NOT SOLD SEPARAT

NUT; Incl In 8

2шт.

38

NSS

NOT SOLD SEPARAT

SLEEVE; Incl In 8

2шт.

39

NSS

NOT SOLD SEPARAT

NUT; Incl In 9

2шт.

40

NSS

NOT SOLD SEPARAT

SLEEVE; Incl In 9

2шт.

41

NSS

NOT SOLD SEPARAT

NUT; Incl In 7

2шт.

42

NSS

NOT SOLD SEPARAT

SLEEVE; Incl In 7

2шт.
