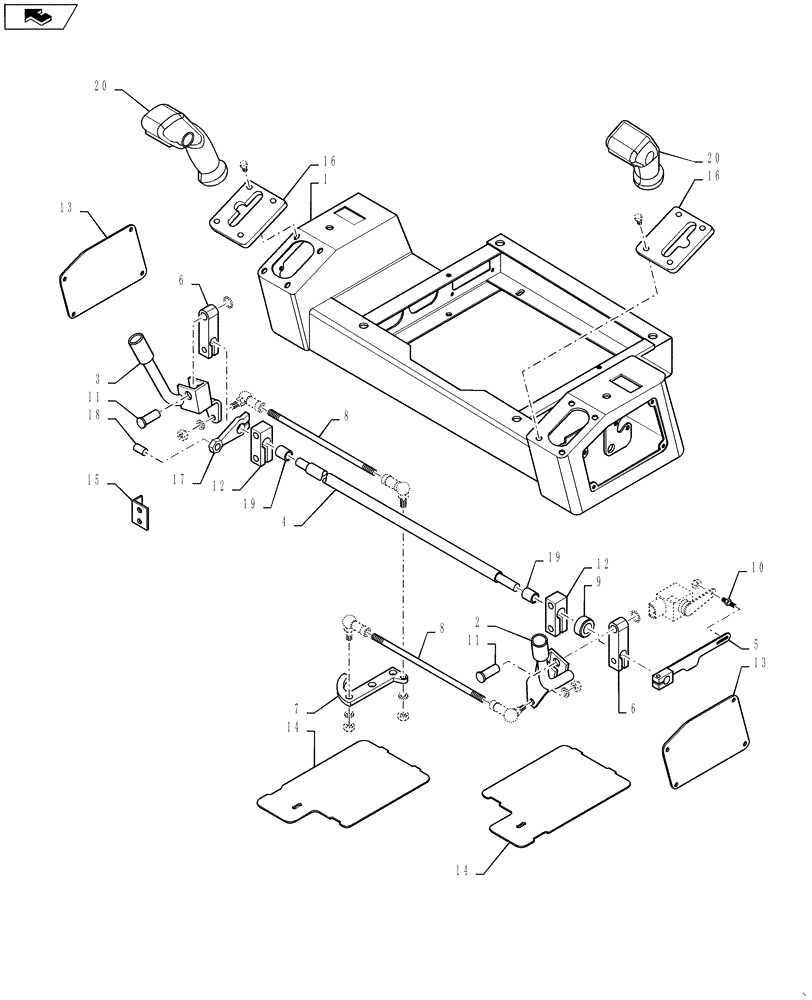

Запчасти Case DV207 (29.200.01[01]) - HYDROSTATIC TRANSMISSION - CONTROLS (29) - HYDROSTATIC DRIVE

1

ND126020

FRAME

1шт.

2

ND126021

CONTROL LEVER

1шт.

3

ND126022

CONTROL LEVER

1шт.

4

ND126023

CONTROL SHAFT

1шт.

5

ND126028

TRIP ARM

1шт.

6

ND126024

LEVER

2шт.

7

ND126025

LEVER

1шт.

8

ND126026

THREADED ROD

2шт.

9

ND126027

COLLAR

1шт.

10

ND126029

STUD

1шт.

11

ND126030

HEADED PIN

2шт.

12

ND126031

SUPPORT

2шт.

13

ND126032

ACCESS COVER

2шт.

14

ND126033

ACCESS COVER

2шт.

15

ND146439

BRACKET

1шт.

16

ND126039

RETAINER

2шт.

17

ND146548

LEVER

1шт.

18

ND144148

PIN

1шт.

19

ND035955

BUSHING

2шт.

20

ND124420

CONTROL

Travel; Vibration Pushbuttons; Crab Pushbuttons

2шт.
