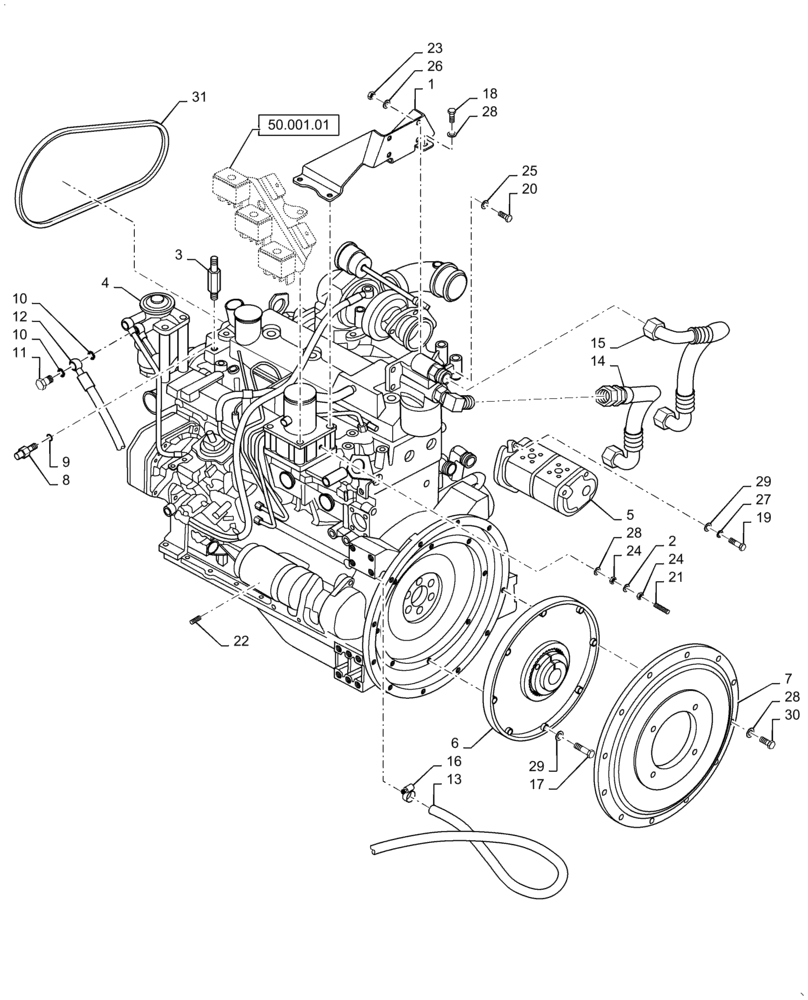

Запчасти Case DV207 (10.001.01) - ENGINE (10) - ENGINE

1

ND146835

BRACKET

Filter, Serial Range: -DDDDV207NDNTH2084

1шт.

1

47726005

BRACKET

, Start Serial: DDDDV207NDNTH2085

1шт.

2

ND118926

WASHER

1шт.

3

ND148474

HYD CONNECTOR

1шт.

4

ND140859

ENGINE

Once Exhausted, See Your Nearest Cummins Dealer

1шт.

4

87409203

ENGINE OIL FILTER

Not Illustrated

1шт.

4

ND115952

FUEL FILTER

Not Illustrated

1шт.

5

ND146230

HYDRAULIC PUMP

1шт.

6

ND111887

COUPLING

1шт.

7

ND135338

FLANGE

1шт.

8

ND110258

TEMPERATURE SENDER

1шт.

9

ND073356

PACKING RING

1шт.

10

ND073390

SEALING RING

2шт.

11

ND106570

BOLT

1шт.

12

ND139454

HOSE

1шт.

13

ND146228

PLASTIC-RUBBER TUBE

1шт.

14

ND146010

HOSE

, Serial Range: -NDNTH2084

1шт.

14

47726397

HOSE

, Start Serial: NDNTH2085

1шт.

15

ND146009

HOSE

, Serial Range: -NDNTH2084

1шт.

15

47726401

HOSE

, Start Serial: NDNTH2085

1шт.

16

ND107318

CLAMP

1шт.

17

ND021305

BOLT

8шт.

18

ND021301

BOLT

2шт.

19

ND021296

BOLT

4шт.

20

ND021295

BOLT

4шт.

21

ND142074

STUD

1шт.

22

ND024672

STUD

1шт.

23

ND021848

NUT

4шт.

24

ND026461

NUT

2шт.

25

ND118422

WASHER

6шт.

26

ND035941

WASHER

14шт.

27

ND035940

SPRING WASHER

4шт.

28

ND029248

WASHER

15шт.

29

ND029266

WASHER

12шт.

30

ND021303

BOLT

12шт.

31

47850875

BELT

1шт.
