(90.156.01) - CAB GLASS - FRONT AND REAR

Запчасти Case DV207 (90.156.01) - CAB GLASS - FRONT AND REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

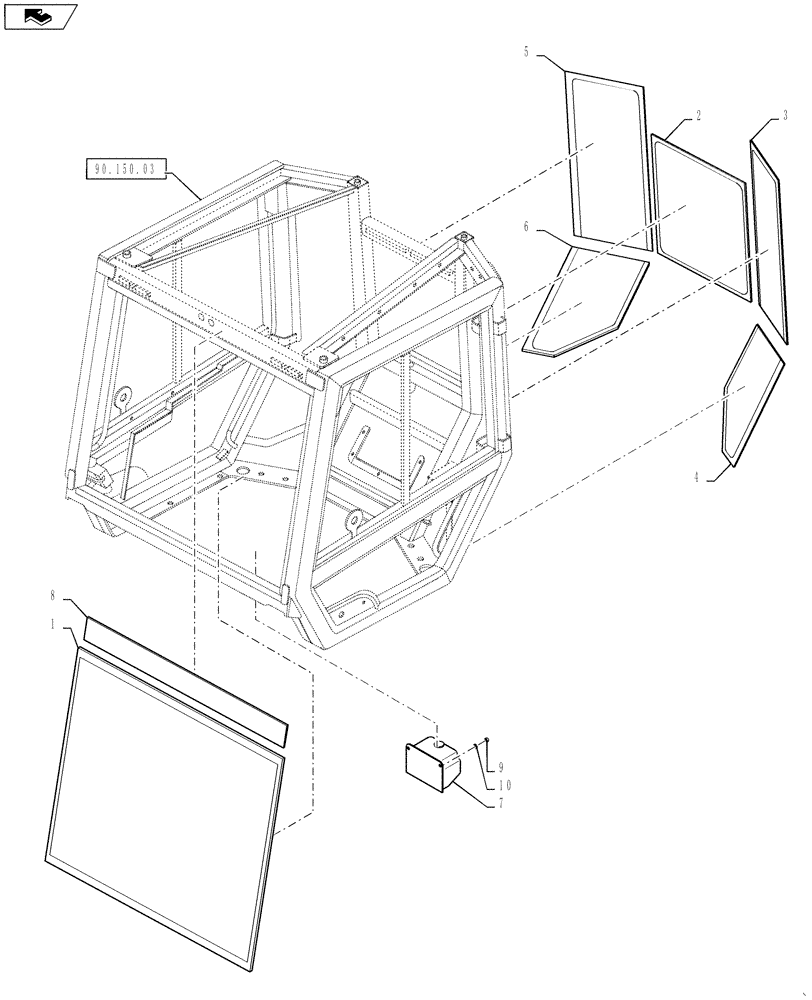

Схема запчастей Case DV207 - (90.156.01) - CAB GLASS - FRONT AND REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
3
9
10
6
8
5
home
1
4
7
90.150.03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

ND141598

GLASS

Front Windshield

1шт.

2

ND128842

GLASS

Rear Window

1шт.

3

ND141599

GLASS

Upper Rear LH Window

1шт.

4

ND141600

GLASS

Lower Rear LH Window

1шт.

5

ND141601

GLASS

Upper Rear RH Window

1шт.

6

ND141602

GLASS

Lower Rear RH Window

1шт.

7

ND065426

BOTTLE

Windshield Washer Reservoir

1шт.

8

ND119949

STRIP

Foil

1шт.

9

ND027301

NUT

2шт.

10

ND029249

WASHER

2шт.
