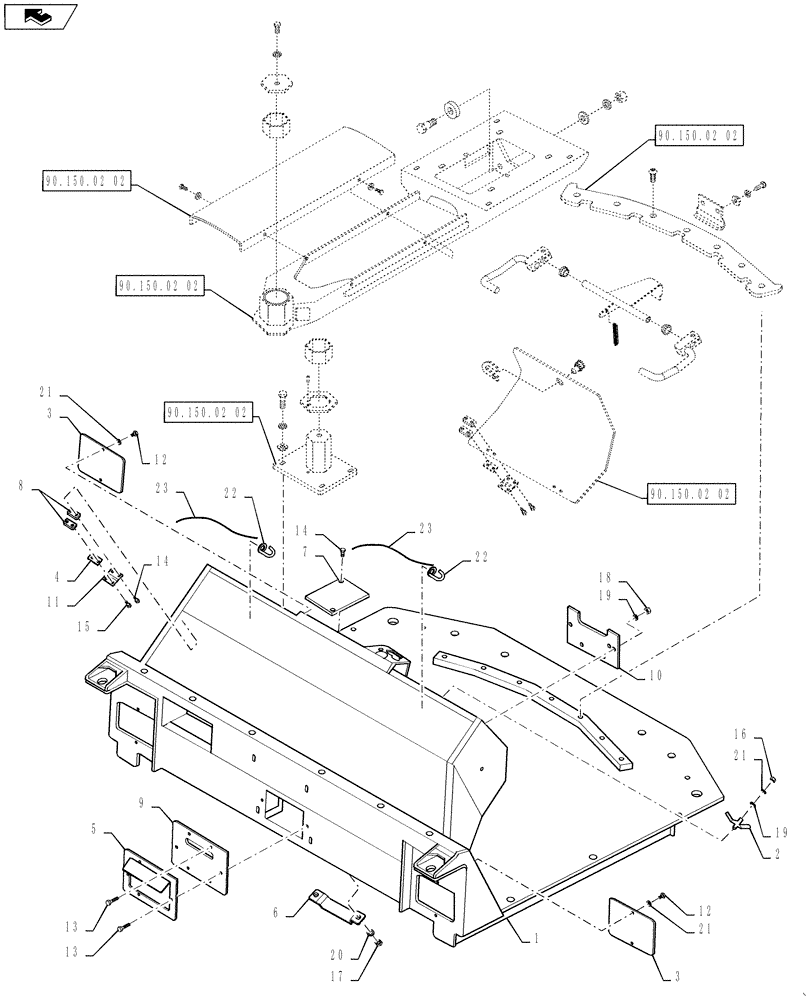

Запчасти Case DV207 (90.150.02[01]) - PLATFORM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

ND140652

PLATFORM

1шт.

2

ND140677

HOLDER

1шт.

3

ND140691

ACCESS COVER

2шт.

4

ND140692

REINFORCEMENT

2шт.

5

ND140700

PACKING

1шт.

6

ND140699

HOLDER

1шт.

7

ND140690

ACCESS COVER

1шт.

8

ND140693

LOCKING BAR

4шт.

9

ND140615

COVER PLATE

1шт.

10

ND140618

COVER PLATE

1шт.

11

ND064542

HINGE

2шт.

12

ND021287

BOLT,M8 x 16

4шт.

13

ND021291

BOLT

6шт.

14

ND024372

SCREW

M5 x 12

6шт.

15

ND024373

BOLT

4шт.

16

ND021847

NUT

1шт.

17

ND027301

NUT

2шт.

18

ND027300

NUT

4шт.

19

ND029290

WASHER

7шт.

20

ND029291

WASHER

2шт.

21

ND118926

WASHER

5шт.

22

ND098310

HOOK

2шт.

23

ND079693

CABLE

1шт.
