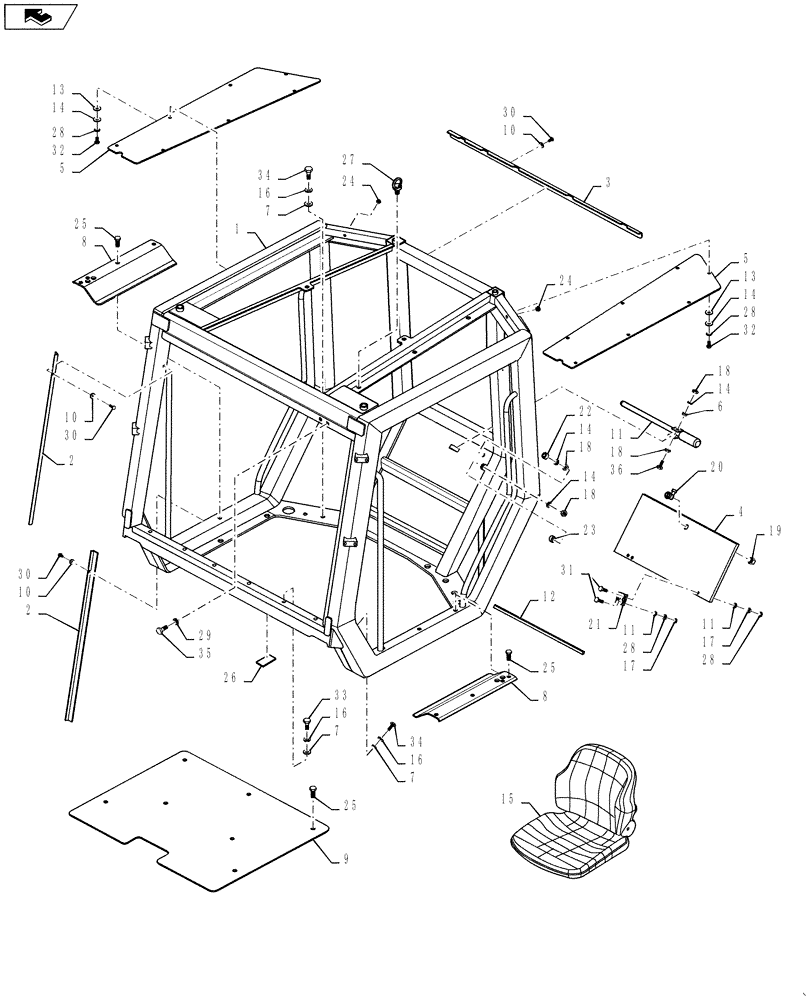

Запчасти Case DV207 (90.114.03) - ROPS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

ND146845

ROPS

1шт.

2

ND140687

PROTECTION STRIP

2шт.

3

ND146846

BRACKET

1шт.

4

ND138079

DOOR

1шт.

5

ND146847

COVER PLATE

2шт.

6

ND136970

SPACER

1шт.

7

ND140685

WASHER

20шт.

8

ND145946

SHIELD

2шт.

9

ND148429

FLOOR

1шт.

10

ND029247

WASHER

8шт.

11

ND029289

WASHER

8шт.

12

ND146901

TRIM

Rubber

1шт.

13

ND029290

WASHER

14шт.

14

ND118926

WASHER

18шт.

15

ND121795

SEAT COVER

Cushion, Vinyl - Seat and Back

1шт.

16

ND035942

WASHER

20шт.

17

ND107948

LOCK NUT

8шт.

18

ND021847

NUT

4шт.

19

ND101397

LOCK

Door

1шт.

20

ND101395

KEY

KEY, LOCK

1шт.

21

ND064542

HINGE

2шт.

22

ND079228

BUMPER

Rubber

2шт.

23

ND079227

RUBBER BUMPER

Rubber

1шт.

24

ND118583

PLUG

2шт.

25

ND024371

SCREW,M5 x 10mm

13шт.

26

ND081592

DECAL

Hearing Protection

1шт.

27

ND026172

LIFTING EYE

4шт.

28

ND078516

COVER PLATE

1шт.

29

ND078500

COVER PLATE

1шт.

30

ND021285

BOLT

10шт.

31

ND024373

BOLT

8шт.

32

ND021288

BOLT

14шт.

33

ND021219

BOLT

6шт.

34

ND021312

BOLT

14шт.

35

ND021293

BOLT

4шт.
