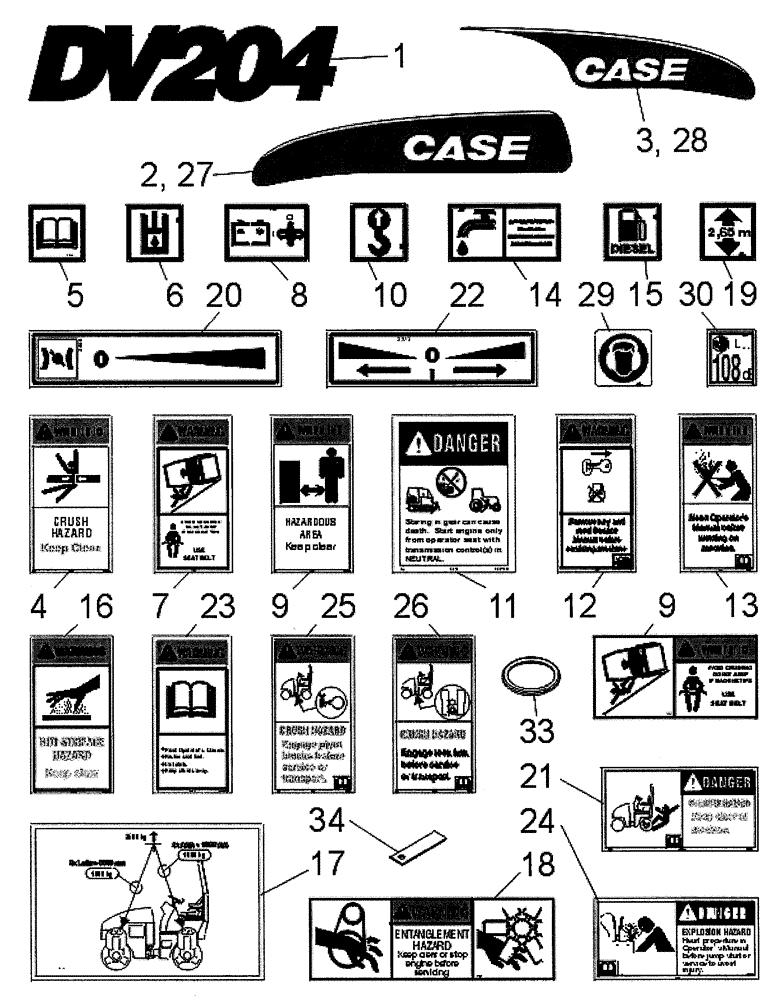

Запчасти Case DV204 (12-510/4[01]) - DECALS (GROUP 510/4) (09) - CHASSIS/ATTACHMENTS

(DECALS) (GROUP 510/4)

1шт.

1

ND110098

SYMBOL

Model

2шт.

2

ND110094

SYMBOL

Case logo

1шт.

3

ND110095

SYMBOL

Case logo

1шт.

4

ND106588

WARNING DECAL

Warning crush hazzard

2шт.

5

ND081612

DECAL

Operators manual

1шт.

6

ND081465

DECAL

1шт.

7

ND109913

SYMBOL

Warning use seatbelt

1шт.

8

ND081678

LABEL

Battery disconect

1шт.

9

ND106586

WARNING DECAL

Warning hazardous area

2шт.

10

ND081460

DECAL

Lifting point

4шт.

11

ND106579

DANGER DECAL

Danger starting engine

1шт.

12

ND106592

WARNING DECAL

Warning remove key

1шт.

13

ND106593

WARNING DECAL

Warning read operators manual

1шт.

14

ND081474

SYMBOL

Drain

2шт.

15

ND081458

DECAL

Diesel fuel

1шт.

16

ND106591

WARNING DECAL

Warning hot surface

2шт.

17

ND109995

SYMBOL

Lift capacity

1шт.

18

ND109916

SYMBOL

Warning entanglement hazzard

1шт.

19

ND081777

SYMBOL

Machine max height

1шт.

20

ND081590

DECAL

1шт.

21

ND109912

SYMBOL

Danger runover hazzard

1шт.

22

ND081575

SYMBOL

1шт.

23

ND106584

WARNING DECAL

Warning Read operators manual

1шт.

24

ND106581

DANGER DECAL

DECAL, Battery explosion hazzard

1шт.

25

ND109915

SYMBOL

Warning crush hazzard

1шт.

26

ND109914

SYMBOL

Warning crush hazzard

1шт.

27

ND110093

SYMBOL

Case logo

1шт.

28

ND110096

SYMBOL

Case logo

1шт.

29

ND081592

DECAL

Ear protection

1шт.

30

ND117260

SYMBOLS

SYMBOL DECAL Warning 108dB

1шт.

31

ND119495

DECAL

Not illustrated

4шт.

33

ND047107

LABEL

1шт.

34

ND073401

RING

1шт.
