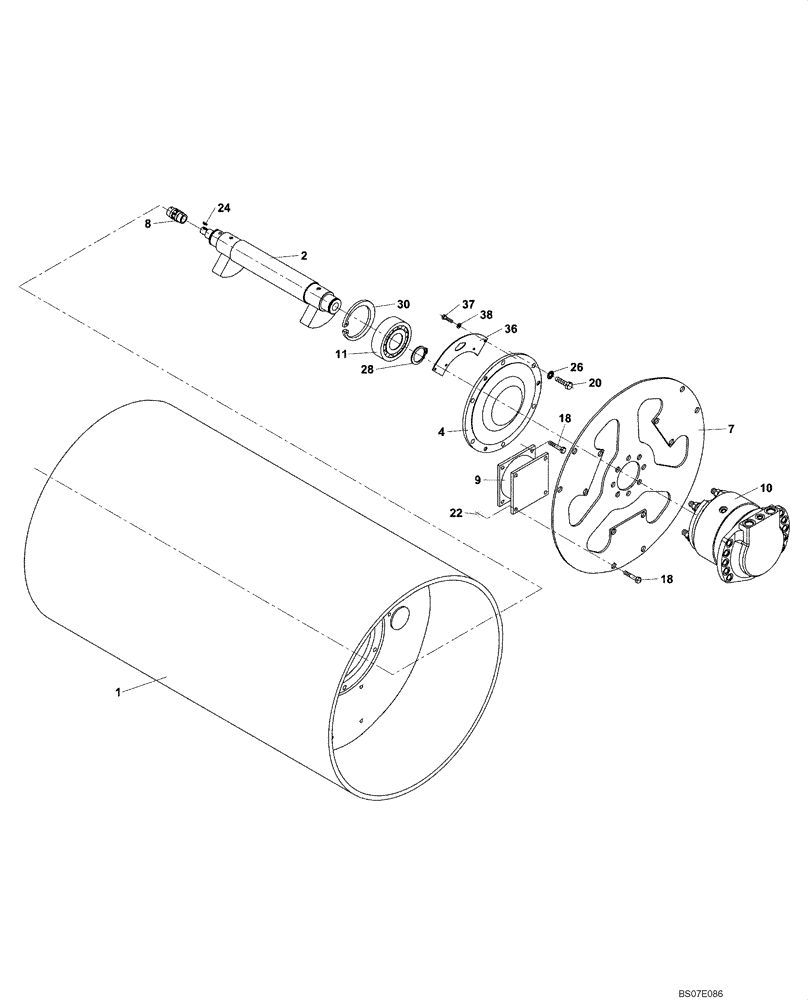

Запчасти Case DV204 (12-2A/4[03]) - VIBRATORY - DRUM (GROUP 2 A/4) - (BEFORE DDD0001415) (09) - CHASSIS/ATTACHMENTS

(ND109209) (DRUM) (GROUP 2 A/4)

1шт.

1

ND109208

DRUM

1шт.

2

ND110787

SHAFT

1шт.

4

ND109204

COVER

1шт.

7

ND118263

CARRIER

CARRIER

1шт.

8

ND110296

COUPLING

1шт.

9

ND122147

RUBBER MOUNTING

5шт.

10

ND107867

HYDRAULIC MOTOR

HYDROMOTOR

1шт.

11

ND068954

BALL BEARING

2шт.

18

ND021302

BOLT

24шт.

20

ND021309

BOLT,M12 x 25

12шт.

22

ND021849

NUT

20шт.

24

ND033808

SPRING

2шт.

26

ND035942

WASHER

12шт.

28

ND069839

CIRCLIP

2шт.

30

ND069902

CIRCLIP

2шт.

36

ND110790

COVER

2шт.

37

ND021287

BOLT,M8 x 16

8шт.

38

ND029309

SPRING WASHER

8шт.
