(06-65/124[01]) - STEERING CYLINDER AND CHASSIS OSCILLATION

Запчасти Case DV204 (06-65/124[01]) - STEERING CYLINDER AND CHASSIS OSCILLATION (13) - STEERING SYSTEM

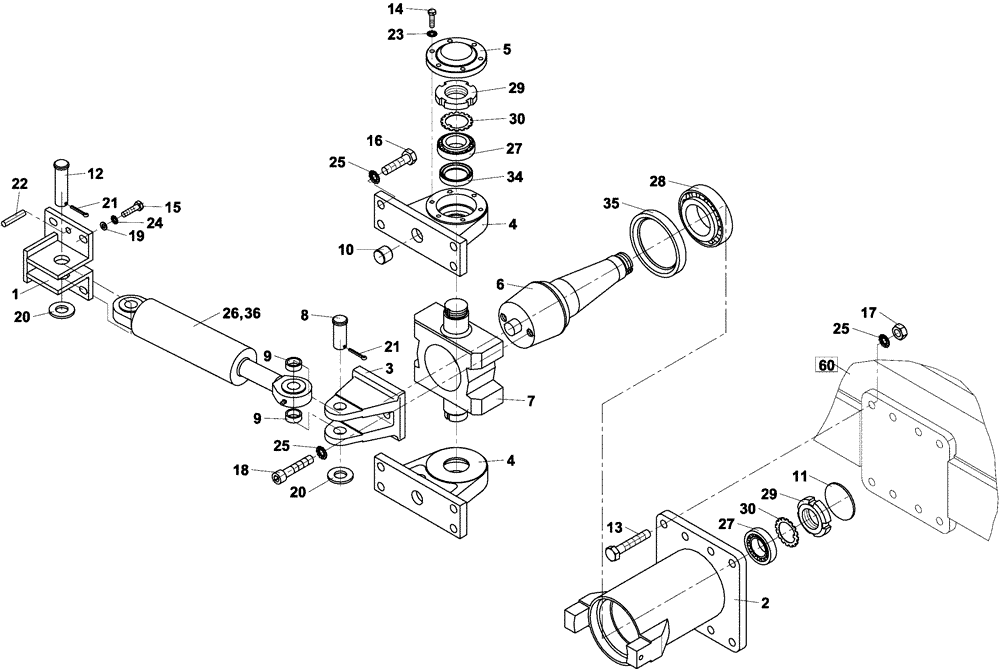

Схема запчастей Case DV204 - (06-65/124[01]) - STEERING CYLINDER AND CHASSIS OSCILLATION (13) - STEERING SYSTEM
20
4
35
5
26
12
6
19
25
60
14
4
25
27
36
18
1
34
23
22
27
9
25
21
9
13
21
16
15
3
28
8
29
2
17
24
11
29
30
30
7
10
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

ND109255

BRACKET

Mount Cylinder

1шт.

2

ND014241

FLANGE ASSY

Oscillation Pivot

1шт.

3

ND020404

FLANGE ASSY

Mount Cylinder

1шт.

4

ND020410

HOLDER

Steering Pivot

2шт.

5

ND034829

COVER

2шт.

6

ND020406

PIN

Oscillation Pivot

1шт.

7

ND020408

PIN

Oscillation Pivot

1шт.

8

ND057554

PIN

1шт.

9

ND057558

RING

2шт.

10

ND057561

PIN

2шт.

11

ND057572

COVER

1шт.

12

ND108428

PIN

1шт.

13

ND021228

BOLT

8шт.

14

ND021295

BOLT

12шт.

15

ND021303

BOLT

4шт.

16

ND021332

BOLT

8шт.

17

ND021851

NUT

8шт.

18

ND024293

BOLT

2шт.

19

ND029250

WASHER

4шт.

20

ND029257

WASHER

2шт.

21

ND029393

SPLIT PIN

2шт.

22

ND032916

PIN, SPLIT (COTTER)

PIN, COTTER

2шт.

23

ND035940

SPRING WASHER

12шт.

24

ND035941

WASHER

4шт.

25

ND035943

WASHER

18шт.

26

ND109524

CYLINDER

Steering Cylinder

1шт.

Serial Number : DV201 Until DDD0001808 / DV202 Until DDD0000231 / DV204 Until DDD0001402, DDD0001404 to DDD0001409

1шт.

26

ND110427

CYLINDER

Steering Cylinder

1шт.

Serial Number : DV201 DDD0001809 And After / DV202 DDD0000232 And After / DV204 DDD0001401, DDD0001403, DDD0001410 And After

1шт.

26

ND107329

SEAL KIT

For ND110427

1шт.

27

ND069064

BALL BEARING

3шт.

28

ND069065

BALL BEARING

1шт.

29

ND069112

NUT

3шт.

30

ND069130

LOCKING RING

3шт.

34

ND078991

OIL SEAL

2шт.

35

ND079033

OIL SEAL

1шт.

36

ND064758

PLUG

2шт.

60

REF

INSTRUCTION

1шт.

See Page 12-60/12, 12-60/4

1шт.
