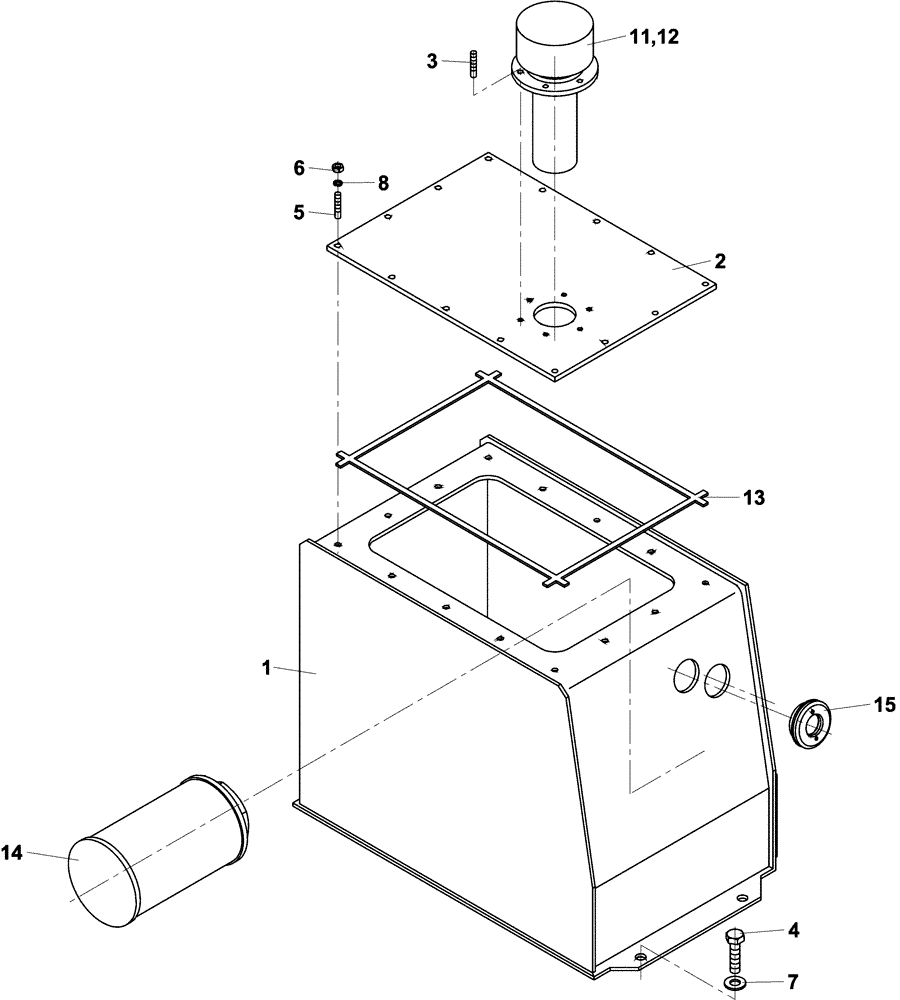

Запчасти Case DV204 (10-370/124[01]) - HYDRAULIC RESERVOIR (07) - HYDRAULIC SYSTEM

1

ND109224

TANK

1шт.

2

ND102154

COVER

1шт.

3

ND054246

BOLT

1шт.

4

ND021303

BOLT

4шт.

Serial Number : DV201 Until 144 / DV202 Until 167 / DV204 Until 64

1шт.

5

ND021710

STUD

14шт.

6

ND021847

NUT

14шт.

7

ND029250

WASHER

4шт.

Serial Number : DV201 Until 144 / DV202 Until 167 / DV204 Until 64

1шт.

8

ND029309

SPRING WASHER

14шт.

9

ND037453

LEADSEAL

1шт.

Not Illustrated

1шт.

10

ND037454

ELECTRICAL WIRE

WIRE

1шт.

Not Illustrated

1шт.

11

ND065471

CAP

1шт.

12

ND065473

ADAPTER

1шт.

13

ND102274

TAPE

1шт.

14

ND067790

FILTER STRAINER

1шт.

15

ND070149

SIGHTGLASS

2шт.
