(04-403/124[02]) - ELECTRICAL CIRCUIT

Запчасти Case DV204 (04-403/124[02]) - ELECTRICAL CIRCUIT (06) - ELECTRICAL SYSTEMS

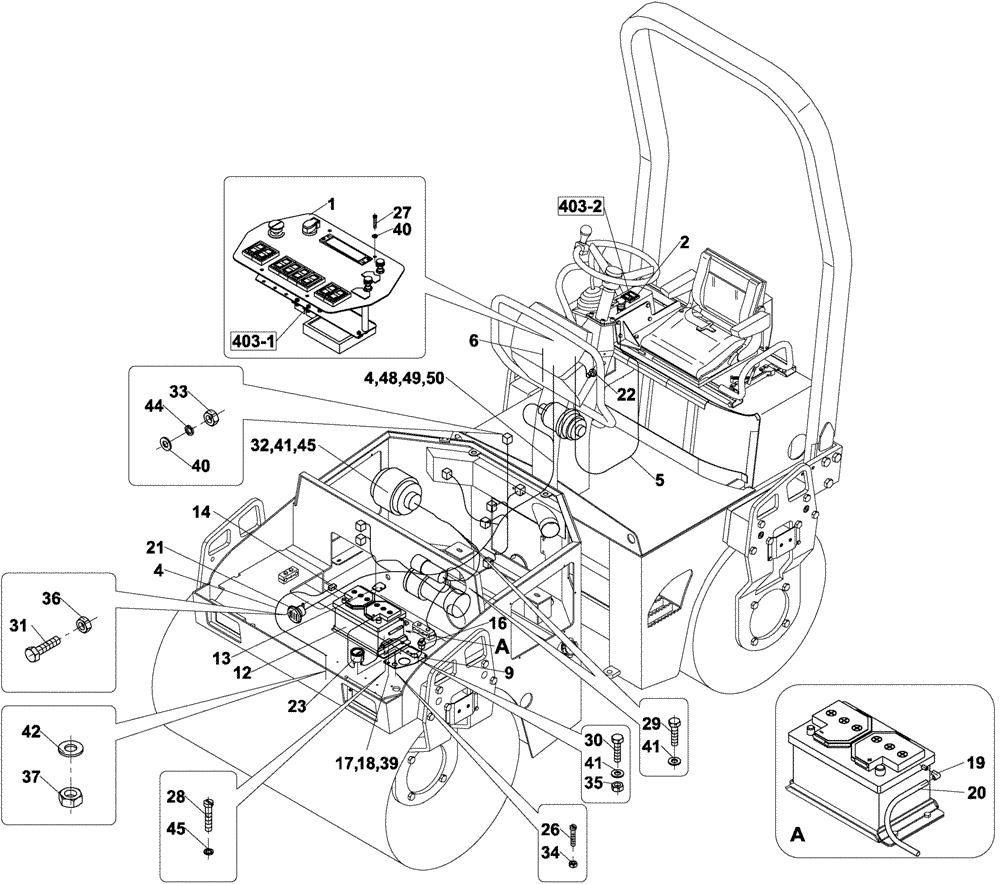

Схема запчастей Case DV204 - (04-403/124[02]) - ELECTRICAL CIRCUIT (06) - ELECTRICAL SYSTEMS
48
20
40
41
42
34
28
27
403-2
9
12
26
23
6
41
50
22
4
36
30
41
45
21
49
14
33
5
403-1
16
18
31
39
29
44
1
32
35
40
19
2
17
4
45
13
37
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

ND109756

DASHBOARD

1шт.

2

ND109774

PANEL

1шт.

4

ND109745

HARNESS

1шт.

5

ND109752

HARNESS

1шт.

6

ND109744

HARNESS

1шт.

9

ND109757

STEEL PLATE

1шт.

12

B48MFW

WET BATTERY

For US Only

1шт.

12

CC48MFW

WET BATTERY

For Canada Only

1шт.

13

ND111732

TERMINAL CONNECTOR

1шт.

14

ND111732

TERMINAL CONNECTOR

1шт.

16

ND064972

SWITCH

Master Disconnect

1шт.

17

ND065914

FUSE,24V, 10W

1шт.

18

ND065913

FUSE,50A

1шт.

21

ND065126

HORN

1шт.

22

ND090103

BUZZER

1шт.

Serial Number : DV201 Until DDD0001818 / DV202 Until DDD0000243 / DV204 Until DDD0001417

1шт.

22

ND093278

BUZZER

1шт.

Serial Number : DV201 DDD0001819 And After / DV202 DDD0000244 And After / DV204 DDD0001418 And After

1шт.

23

ND098759

HOURMETER

1шт.

26

ND024110

BOLT

2шт.

Serial Number : DV201 Until DDD0001818 / DV202 Until DDD0000243 / DV204 Until DDD0001414

1шт.

26

ND024111

BOLT

2шт.

Serial Number : DV201 DDD0001819 And After / DV202 DDD0000244 And After / DV204 DDD0001415 And After

1шт.

27

ND024121

BOLT

4шт.

28

ND024133

BOLT

4шт.

29

ND021288

BOLT

1шт.

Serial Number : DV201 Until DDD0001808 / DV202 Until DDD0000231 / DV204 Until DDD0001408

1шт.

29

ND021288

BOLT

2шт.

Serial Number : DV201 DDD0001809 And After / DV202 DDD0000232 And After / DV204 DDD0001409 And After

1шт.

30

ND021289

BOLT

2шт.

31

ND021294

BOLT

1шт.

32

ND021847

NUT

1шт.

Serial Number : DV201 DDD0001809 And After / DV202 DDD0000232 And After / DV204 DDD0001409 And After

1шт.

33

ND021846

NUT

1шт.

34

ND107947

NUT

2шт.

35

ND027300

NUT

2шт.

36

ND027301

NUT

1шт.

37

ND027303

NUT

1шт.

39

ND029246

WASHER

2шт.

Serial Number : DV201 DDD0001809 And After / DV202 DDD0000232 And After / DV204 DDD0001409 And After

1шт.

40

ND029247

WASHER

5шт.

41

ND022389

WASHER

5шт.

Serial Number : DV201 Until DDD0001808 / DV202 Until DDD0000231 / DV204 Until DDD0001408

1шт.

41

ND029248

WASHER

5шт.

Serial Number : DV201 DDD0001809 And After / DV202 DDD0000232 And After / DV204 DDD0001409 And After

1шт.

42

ND029251

WASHER

1шт.

44

ND029308

WASHER

1шт.

45

ND029309

SPRING WASHER

4шт.

Serial Number : DV201 Until DDD0001808 / DV202 Until DDD0000231 / DV204 Until DDD0001408

1шт.

45

ND029309

SPRING WASHER

5шт.

Serial Number : DV201 DDD0001809 And After / DV202 DDD0000232 And After / DV204 DDD0001409 And After

1шт.

49

ND066061

TAPE

1шт.

50

ND109703

SYMBOL

1шт.

403-1

REF

INSTRUCTION

1шт.

See Page 04-403-1/124

1шт.

403-2

REF

INSTRUCTION

1шт.

See Page 04-403-2/124

1шт.
