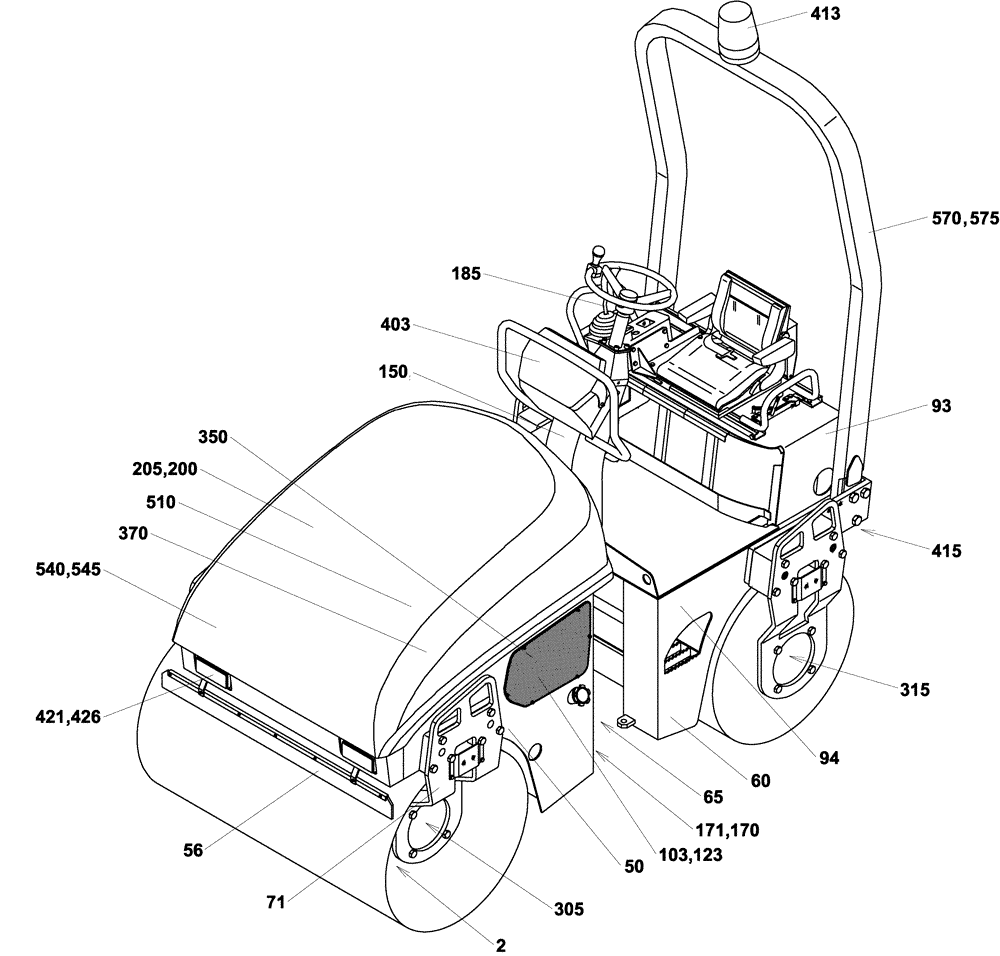

Запчасти Case DV204 (00-000/4[01]) - COMPONENT INDEX (00) - PICTORIAL INDEX

2

VIBRATORY - DRUM - See Page : 12-2A/4, 12-2B/4

1шт.

50

SIDE FRAMES - FRONT - See Page : 12-50/4

1шт.

56

DRUM SCRAPERS - See Page : 12-56/4, 12-56-1/4

1шт.

60

SIDE FRAMES - REAR - See Page : 12-60/4

1шт.

65

STEERING CYLINDER - See Page : 06-65/124

1шт.

71

ROLLER MOUNTING - See Page : 12-71/4

1шт.

93

DRUM SPINKLING RESERVOIRS - See Page : 12-93/4

1шт.

94

DRUM SPRINKLIK SYSTEM - See Page : 12-94/124

1шт.

103

ENGINE DEUTZ - See Page : 02-103/4

1шт.

103-1

ENGINE THROTTLE CONTROL - See Page : 03-103-1/124

1шт.

123

RADIATOR - See Page : 02-123/124

1шт.

150

OPERATORS COMPARTMENT - See Page : 12-150/4

1шт.

170

CHASSIS - See Page : 12-170/124

1шт.

171

CAP - FUEL TANK - See Page : 03-171/124

1шт.

185

OPERATORS COMPARTMENT CONTROLS - See Page : 12-185/124

1шт.

200

HOOD, ENGINE - See Page : 12-200/4

1шт.

205

HOOD, ENGINE - See Page : 12-205/124

1шт.

305

HYDRAULIC CIRCUIT - FRONT FRAME - See Page : 10-305/4

1шт.

315

HYDRAULIC CIRCUIT - REAR FRAME - See Page : 10-315/4

1шт.

350

HYDRAULIC CIRCUIT, STEERING - See Page : 10-350A/4, 10-350B/124, 10-350C/4, 10-350D/4

1шт.

370

HYDRAULIC RESERVOIR - See Page : 10-370/124

1шт.

403

ELECTRICAL CIRCUIT - See Page : 04-403/124

1шт.

403

INSTRUMENT PANEL - See Page : 04-403-1/124

1шт.

403

SIDE INSTRUMENT PANEL - See Page : 04-403-2/124

1шт.

413

ROTATING BEACON - See Page : 04-413/124

1шт.

415

HORN - See Page : 04-415/124

1шт.

421

FRONT LIGHTS - See Page : 04-421/124

1шт.

426

ELECTRICAL CIRCUIT - See Page : 04-426/124

1шт.

510

DECALS - See Page : 12-510/4

1шт.

540

BULB - FUSE - See Page : 04-540/124

1шт.

545

QUICK REFERENCE TO FREQUENTLY ORDERED PARTS - See Page : 01-545/124

1шт.

570

FRAME ROPS - See Page : 12-570/4

1шт.

575

FRAME ROPS - See Page : 12-575/4

1шт.
