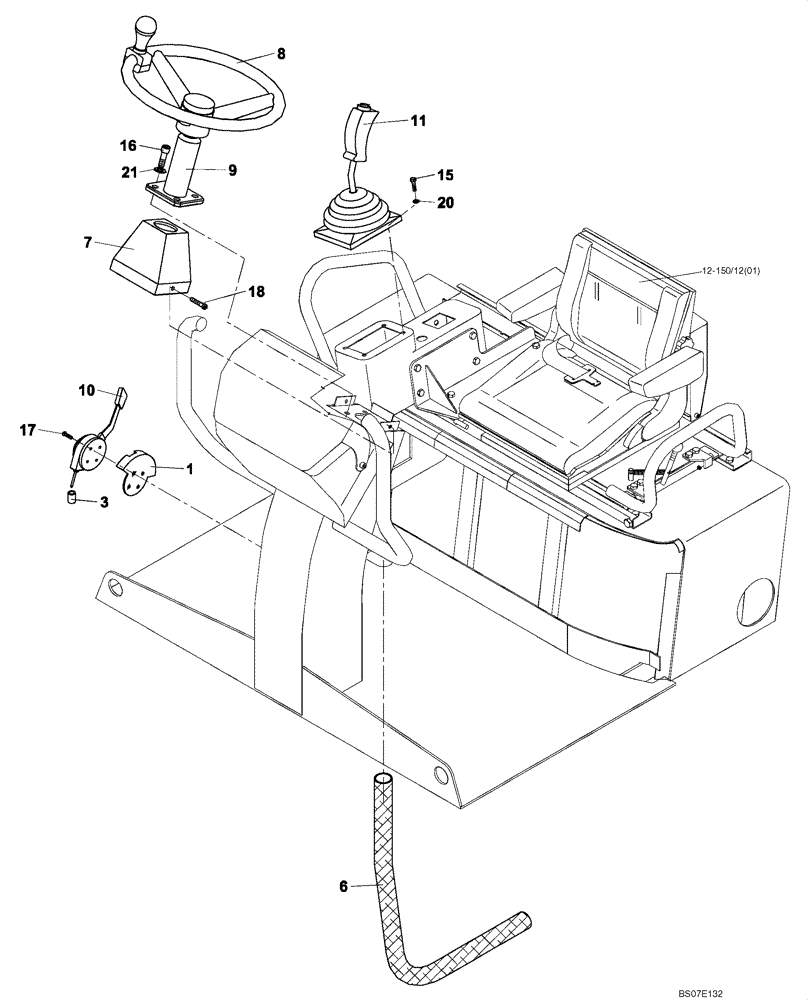

Запчасти Case DV202 (12-185/124[01]) - OPERATORS COMPARTMENT CONTROLS (GROUP 185/124) (09) - CHASSIS/ATTACHMENTS

(ND109531) (CONTROL) (GROUP 185/124)

1шт.

1

ND109582

RETAINER

1шт.

3

ND102214

INSERT

1шт.

6

ND109003

PROTECTION

1шт.

7

ND108734

COVER

1шт.

8

ND090031

STEERING WHEEL

1шт.

9

ND090032

STEERING COLUMN

1шт.

10

ND090767

LEVER ASSY.

1шт.

11

ND107967

JOYSTICK

Controller; Includes 12, 13

1шт.

12

84496597

SWITCH

Proximity Neutral Position

1шт.

13

84496599

SWITCH

Proximity Vibration

1шт.

15

ND021290

BOLT

4шт.

16

ND024258

BOLT

4шт.

17

ND024382

SCREW

4шт.

18

ND025007

SELF-TAP SCREW

3шт.

20

ND029248

WASHER

4шт.

21

ND029250

WASHER

4шт.
