(12-156/124[02]) - REAR VIEW MIRROR (GROUP 156/124)

Запчасти Case DV202 (12-156/124[02]) - REAR VIEW MIRROR (GROUP 156/124) (09) - CHASSIS/ATTACHMENTS

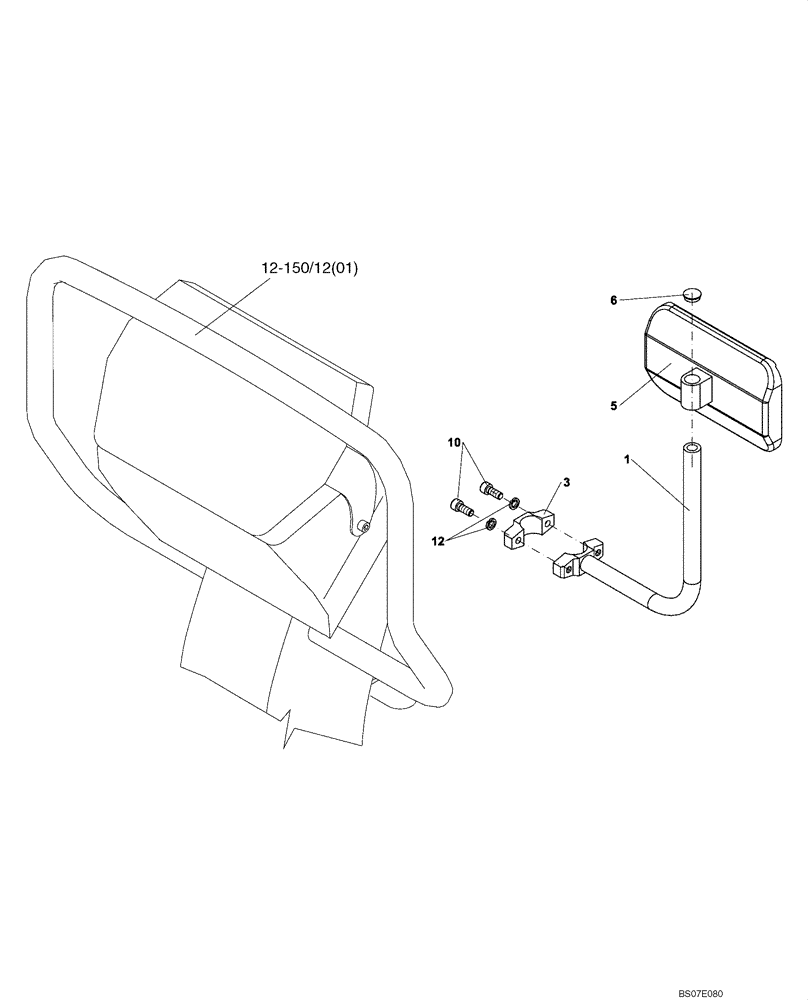

Схема запчастей Case DV202 - (12-156/124[02]) - REAR VIEW MIRROR (GROUP 156/124) (09) - CHASSIS/ATTACHMENTS
10
5
1
12-150/12(01)
3
6
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

(ND120871) (REAR VIEW MIRROR) (GROUP 156/124)

1шт.

1

ND120874

BRACKET, SUPPORTING

PIPE

1шт.

3

ND120873

CLAMP BRACKET

SLEEVE

1шт.

5

ND117813

REAR VIEW MIRROR

MIRROR

1шт.

6

ND117814

HOLE PLUG BUTTON

BINDING PIECE

1шт.

10

ND024244

BOLT

2шт.

12

ND293310

SPRING WASHER SPRING WASHER

2шт.
