(04-403/124[02]) - ELECTRICAL CIRCUIT (GROUP 403/124)

Запчасти Case DV202 (04-403/124[02]) - ELECTRICAL CIRCUIT (GROUP 403/124) (04) - ELECTRICAL SYSTEMS

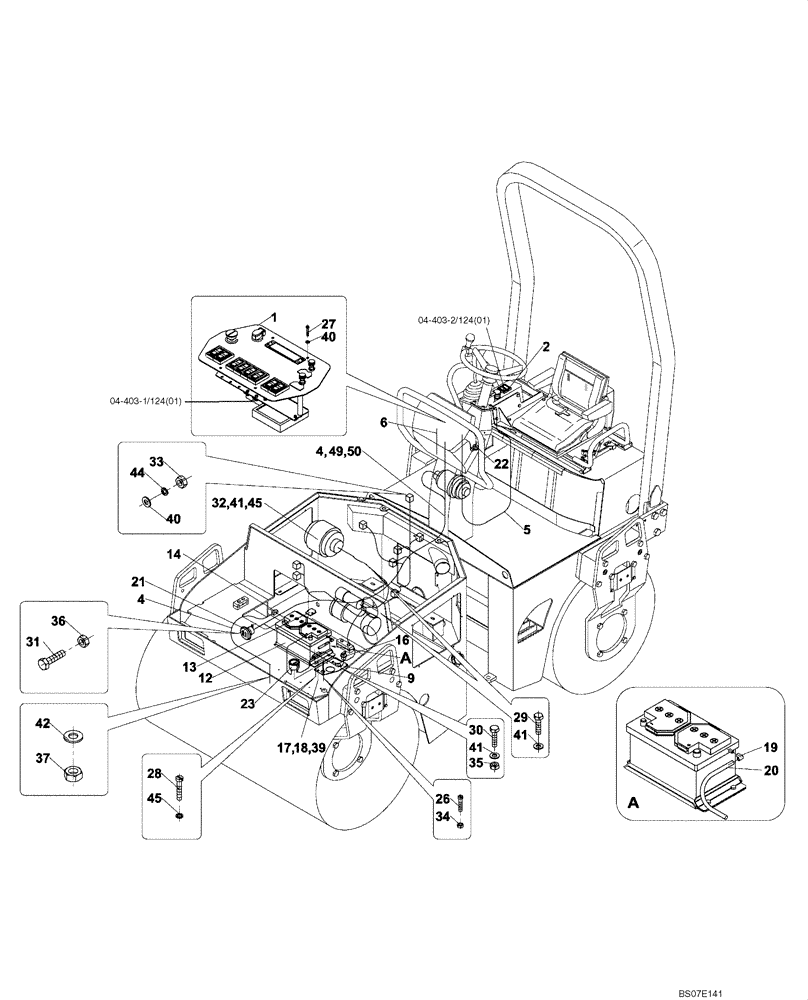

Схема запчастей Case DV202 - (04-403/124[02]) - ELECTRICAL CIRCUIT (GROUP 403/124) (04) - ELECTRICAL SYSTEMS
32
12
45
29
17
41
6
39
23
31
2
33
35
20
50
40
49
5
40
37
13
42
04-403-2/124(01)
04-403-1/124(01)
26
4
21
34
18
41
27
36
4
19
41
1
30
14
28
44
22
45
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

(ND109746) (ELECTRICAL INSTALLATION) (GROUP 403/124)

1шт.

1

ND109756

DASHBOARD

1шт.

2

ND109774

PANEL

1шт.

4

ND109745

HARNESS

Pump to Sprinkler

1шт.

5

ND109752

HARNESS

Switch to Pump

1шт.

6

ND109744

HARNESS

1шт.

9

ND109757

STEEL PLATE

1шт.

12

B48MFW

WET BATTERY

For USA Only

1шт.

12

CC48MFW

WET BATTERY

For Canada Only

1шт.

13

ND111732

TERMINAL CONNECTOR

Positive

1шт.

14

ND111733

TERMINAL CONNECTOR

1шт.

16

ND064972

SWITCH

Master Disconnect

1шт.

17

ND065914

FUSE,24V, 10W

1шт.

18

ND065913

FUSE,50A

1шт.

19

ND111782

ELBOW

TRANSMISSION ELBOW

1шт.

20

ND112304

HOSE

1шт.

21

ND065126

HORN

1шт.

22

ND093278

BUZZER

LEVEL SIGNAL DEVICE

1шт.

23

ND136619

HOURMETER

HOURMETER, 12V; Replaces ND098759 Hourmeter

1шт.

26

ND024111

BOLT

2шт.

27

ND024121

BOLT

4шт.

28

ND024133

BOLT

4шт.

29

ND021289

BOLT

2шт.

30

ND021289

BOLT

2шт.

31

ND021294

BOLT

1шт.

32

ND021847

NUT

1шт.

33

ND021846

NUT

1шт.

34

ND107947

NUT

2шт.

35

ND027300

NUT

2шт.

36

ND027301

NUT

1шт.

37

ND027303

NUT

1шт.

39

ND029246

WASHER

2шт.

40

ND029247

WASHER

5шт.

41

ND029248

WASHER

5шт.

42

ND029251

WASHER

1шт.

44

ND029308

WASHER

1шт.

45

ND029309

SPRING WASHER

5шт.

49

ND066061

TAPE

1шт.

50

ND109703

SYMBOL

1шт.
