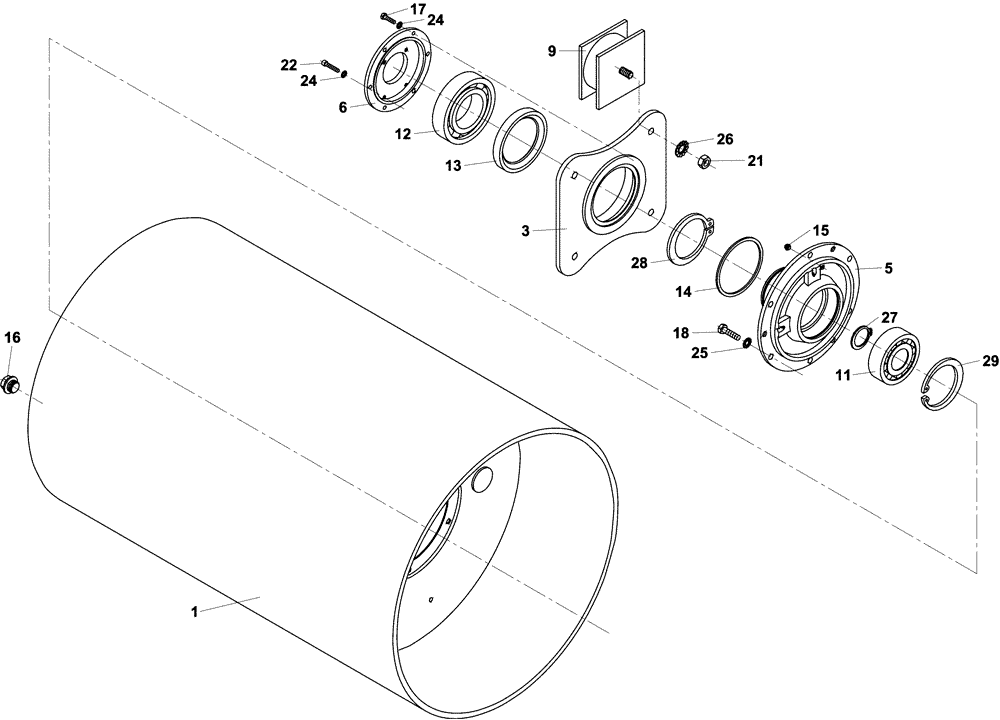

Запчасти Case DV202 (12-2B/2[01]) - VIBRATORY - DRUM (12) - Chassis/Attachments

1

ND109259

DRUM

1шт.

3

ND109236

PLATE, SUPPORT

1шт.

5

ND109205

COVER

1шт.

6

ND109267

COVER

1шт.

9

ND108437

SHOCK ABSORBER

4шт.

11

ND068954

BALL BEARING

1шт.

12

ND068830

BALL BEARING

1шт.

13

ND079039

OIL SEAL

1шт.

14

ND102903

RING

1шт.

15

ND062402

PLUG

1шт.

16

ND065651

PLUG

1шт.

17

ND021294

BOLT

6шт.

18

ND021309

BOLT,M12 x 25

6шт.

21

ND021851

NUT

4шт.

22

ND024246

BOLT

4шт.

24

ND035940

SPRING WASHER

10шт.

25

ND035942

WASHER

6шт.

26

ND035943

WASHER

4шт.

27

ND069839

CIRCLIP

1шт.

28

ND069856

CIRCLIP

1шт.

29

ND069902

CIRCLIP

1шт.
