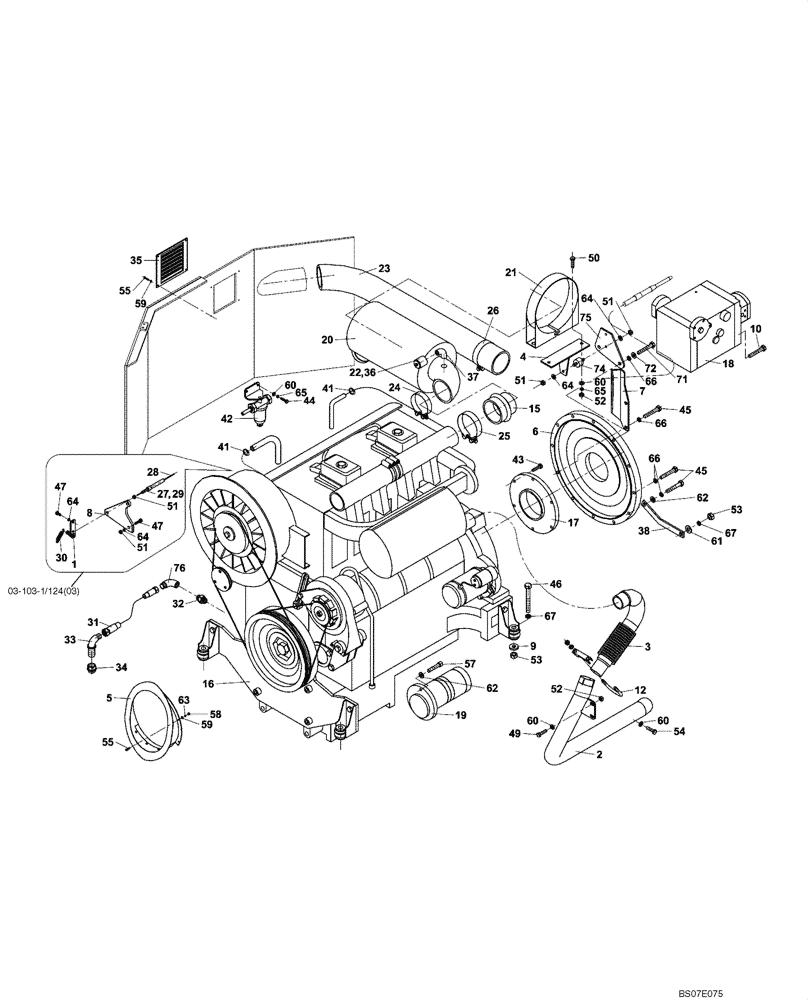

Запчасти Case DV201 (02-103/12[03]) - ENGINE DEUTZ (GROUP 103/12) (02) - ENGINE

.

ENGINE (ND109238) (GROUP 103/12)

1шт.

1

ND108436

LEVER

THROTTLE

1шт.

2

ND108418

EXHAUST MANIFOLD

1шт.

3

ND102192

ELBOW

1шт.

4

ND118267

SUPPORT

FILTER HOLDER, Air Cleaner

1шт.

5

ND109249

COLLAR

1шт.

6

ND118598

FLANGE

FLANGE, Flange

1шт.

7

ND109239

HOLDER

1шт.

8

ND117471

HOLDER

1шт.

9

ND042609

WASHER

4шт.

10

ND118093

BOLT

2шт.

12

ND111879

CLIP

CLIP

1шт.

15

ND108438

RESTRICTOR

1шт.

16

NSS

NOT SOLD SEPARAT

ND133103, ENGINE, DEUTZ : See Your Nearest Deutz Engine Dealer for Service of Engine Components

1шт.

17

ND116768

COUPLING FLANGE

COUPLING, Flywheel

1шт.

18

ND107694

PUMP

Hydraulic

1шт.

19

ND107692

PUMP

Hydraulic

1шт.

20

ND121310

AIR CLEANER

1шт.

21

235298A1

SUPPORT

Air Cleaner

1шт.

22

ND065518

INDICATOR

Air Cleaner

1шт.

23

ND110890

HOSE

Air Cleaner

1шт.

24

ND069501

CLIP

1шт.

25

ND069516

CLAMP

1шт.

26

ND069522

CLAMP

2шт.

27

ND110891

LOOM

1шт.

28

ND122024

WIRE ROPE

CABLE

1шт.

29

ND064395

ADJUSTMENT SCREW

1шт.

30

ND037228

SPRING

1шт.

31

ND108637

HOSE

1шт.

32

ND062140

HYD CONNECTOR

1шт.

33

ND062459

ELBOW

1шт.

34

ND062447

PLUG

1шт.

35

ND118265

COVER

COVER, Screen

1шт.

36

ND121311

LUBE NIPPLE

1шт.

37

ND122791

ELBOW

1шт.

38

ND066152

WIRE HARNESS

Engine Ground

1шт.

41

ND069478

CLIP

5шт.

42

Filter Assy, See Your Nearest Deutz Engine Dealer for Service of Engine Components

1шт.

43

ND021183

BOLT

6шт.

44

ND021188

BOLT

2шт.

45

ND021197

BOLT

9шт.

46

ND021219

BOLT

4шт.

47

ND021288

BOLT

4шт.

49

ND021294

BOLT

2шт.

50

ND021295

BOLT

2шт.

51

ND021847

NUT

7шт.

52

ND034087

NUT

6шт.

53

ND021850

NUT

5шт.

54

ND021293

BOLT

2шт.

55

ND024110

BOLT

10шт.

57

ND024259

BOLT

2шт.

58

ND026413

NUT

6шт.

59

ND029246

WASHER

10шт.

60

ND029249

WASHER

10шт.

61

ND029251

WASHER

2шт.

62

ND029266

WASHER

3шт.

63

ND029306

WASHER

6шт.

64

ND029309

SPRING WASHER

8шт.

65

ND029310

WASHER

4шт.

66

ND029311

WASHER

11шт.

67

ND029312

LOCK WASHER

5шт.

71

ND021199

BOLT

2шт.

72

ND029250

WASHER

2шт.

74

ND079082

RUBBER MOUNTING

RUBBER MOUNTING

2шт.

75

ND118266

PLATE

STEEL PLATE

1шт.

76

ND062367

HYD CONNECTOR

1шт.
