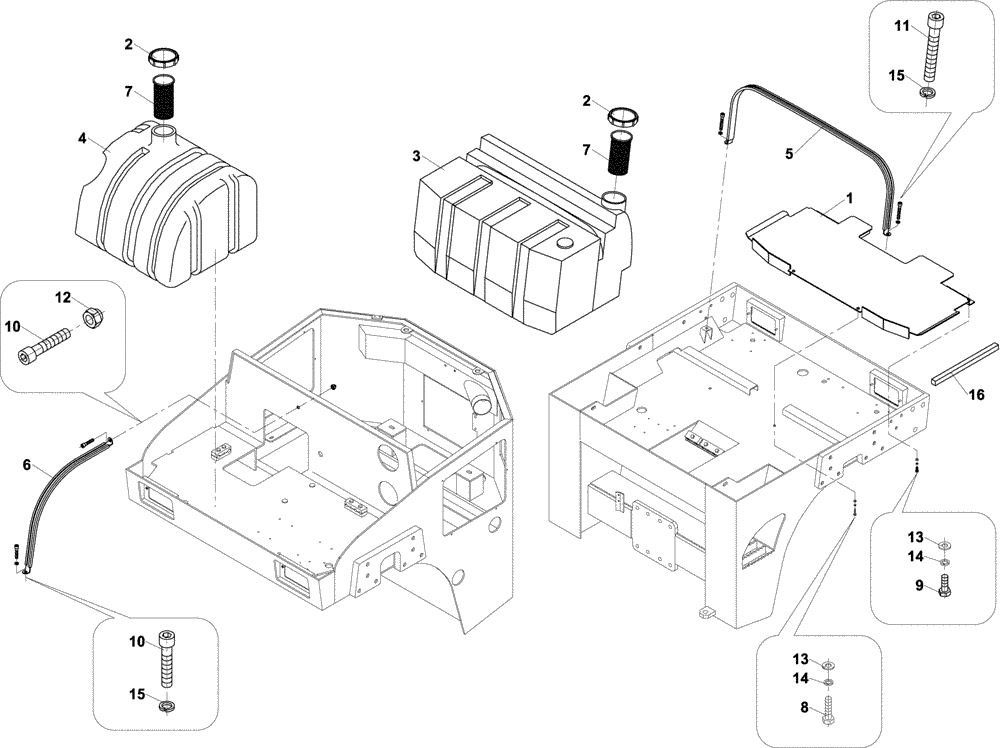

Запчасти Case DV201 (12-93/12[01]) - DRUM SPINKLING RESERVOIRS (12) - Chassis/Attachments

1

ND110001

FLOOR

1шт.

2

ND110006

FILLER CAP

2шт.

3

ND109992

TANK

1шт.

Include 2

1шт.

4

ND109991

RESERVOIR

1шт.

Include 2

1шт.

5

ND108571

SECURING BAND

1шт.

6

ND108572

SECURING BAND

1шт.

7

ND090802

SCREEN

2шт.

Serial Number : DV201 Until DDD0001808 / DV202 Until DDD0000231 / DV204 Until DDD0001402, DDD0001404 to DDD0001409

1шт.

7

ND115183

SCREEN

2шт.

Serial Number : DV201 DDD0001809 And After / DV202 DDD0000232 And After / DV204 DDD0001401, DDD0001403, DDD0001410 And After

1шт.

8

ND021175

BOLT

2шт.

9

ND021287

BOLT,M8 x 16

4шт.

10

ND024263

BOLT

2шт.

11

ND024265

BOLT

2шт.

12

ND027302

NUT

1шт.

13

ND029248

WASHER

6шт.

14

ND029309

SPRING WASHER

6шт.

15

ND029311

WASHER

3шт.

16

ND110060

PACKING

1шт.
