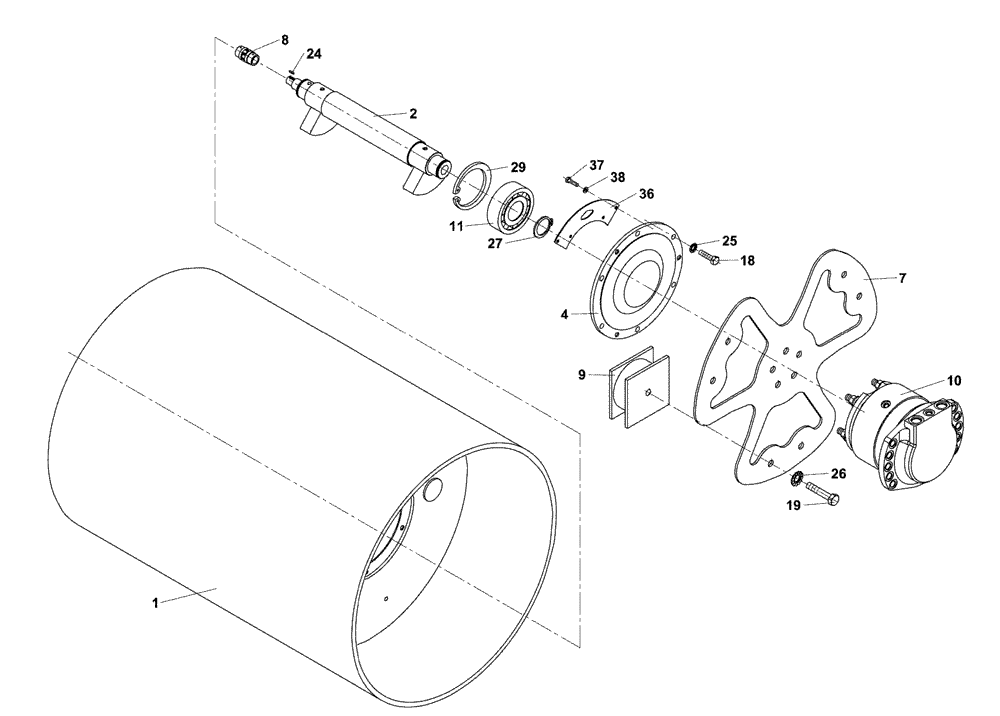

Запчасти Case DV201 (12-1A/1[03]) - VIBRATORY - DRUM (12) - Chassis/Attachments

1

ND109234

DRUM

1шт.

See Page 12-1B/1

1шт.

2

ND110788

ECCENTRIC

1шт.

4

ND109204

COVER

1шт.

7

ND118261

CARRIER

1шт.

8

ND110296

COUPLING

1шт.

9

ND107865

SHOCK ABSORBER

10шт.

10

ND118009

HYDRAULIC MOTOR

For Mounting Hardware See Figure 12-70/1 (02)

1шт.

11

ND068954

BALL BEARING

2шт.

18

ND021309

BOLT,M12 x 25

12шт.

19

ND021328

BOLT

6шт.

23

ND033808

SPRING

2шт.

25

ND035942

WASHER

12шт.

26

ND035943

WASHER

10шт.

27

ND069839

CIRCLIP

2шт.

29

ND069902

CIRCLIP

2шт.

36

ND110790

COVER

2шт.

37

ND021287

BOLT,M8 x 16

8шт.

38

ND029309

SPRING WASHER

8шт.
