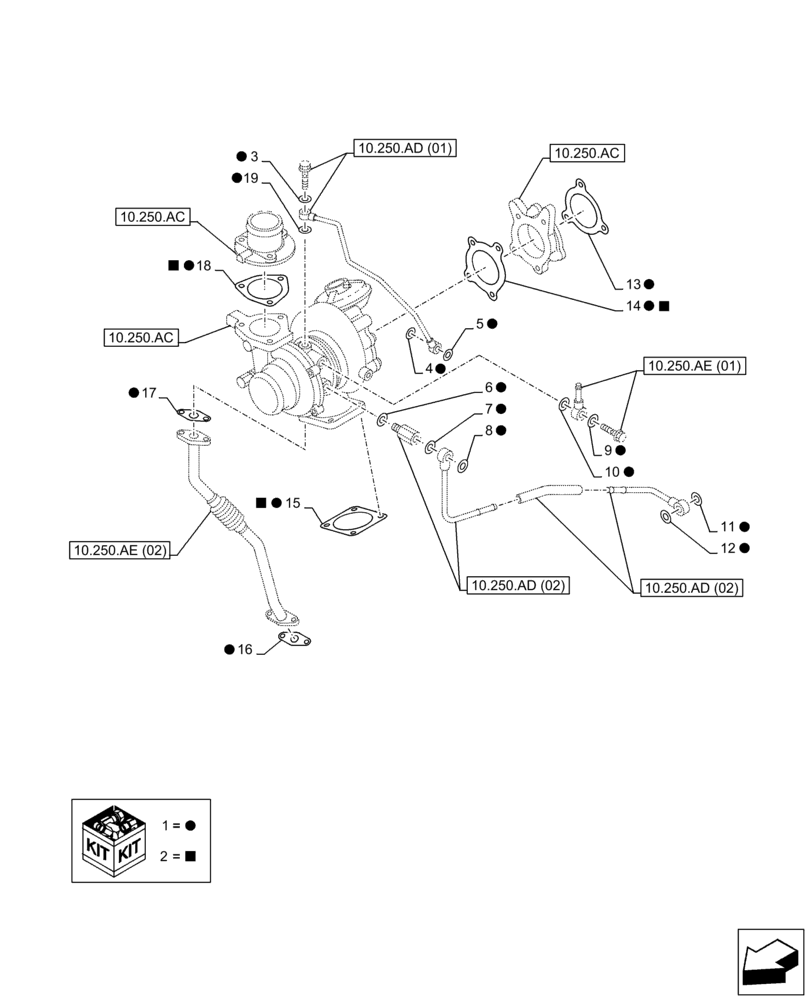

Запчасти Case AR-4JJ1XASS01-02 (10.001.AD[02]) - ENGINE, GASKET, SET (10) - ENGINE
![Схема запчастей Case AR-4JJ1XASS01-02 - (10.001.AD[02]) - ENGINE, GASKET, SET (10) - ENGINE](https://partsell.ru/storage/images/casece/5359168.png)
4
10.250.ad (02)
10.250.ac
9
10.250.ae (02)
2
1
13
1
18
14
2
1
12
10
2
1
16
5
1
1
1
1
15
17
11
1
1
10.250.ae (01)
1
1
1
1
10.250.ac
2
6
8
10.250.ac
1
19
7
3
1
2
10.250.ad (01)
1
1
1
10.250.ad (02)
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
47866785
KIT, ENGINE TOP GASK
ASSY, Gasket Set (Head Gasket T=1.14), Incl 2 - 19
1шт.
1
47866786
KIT, ENGINE TOP GASK
ASSY, Gasket Set (Head Gasket T=1.19), Incl 2 - 19
1шт.
1
47866787
KIT, ENGINE TOP GASK
ASSY, Gasket Set (Head Gasket T=1.24), Incl 2 - 19
1шт.
2
47866788
KIT, ENGINE TOP GASK
ASSY, Gasket Set (Head Gasket T=1.14), Incl 14, 15, 18
1шт.
2
47866789
KIT, ENGINE TOP GASK
ASSY, Gasket Set (Head Gasket T=1.19), Incl 14, 15, 18
1шт.
2
47866790
KIT, ENGINE TOP GASK
ASSY, Gasket Set (Head Gasket T=1.24), Incl 14, 15, 18
1шт.
